Pontiac Firebird Camshaft Position Sensor Guide (1989-1996)
Solve stalling, misfires, and no-start problems by understanding this critical engine sensor in your 1989-1996 Firebird.
- For 1993-1996 LT1 V8s, the cam sensor is inside the Optispark distributor; you must replace the entire unit.
- A leaking water pump is a common cause of Optispark failure on LT1 V8s; replace both at the same time.
- Choose ACDelco or Delphi brands for the LT1 Optispark to ensure reliability and avoid repeat labor costs.

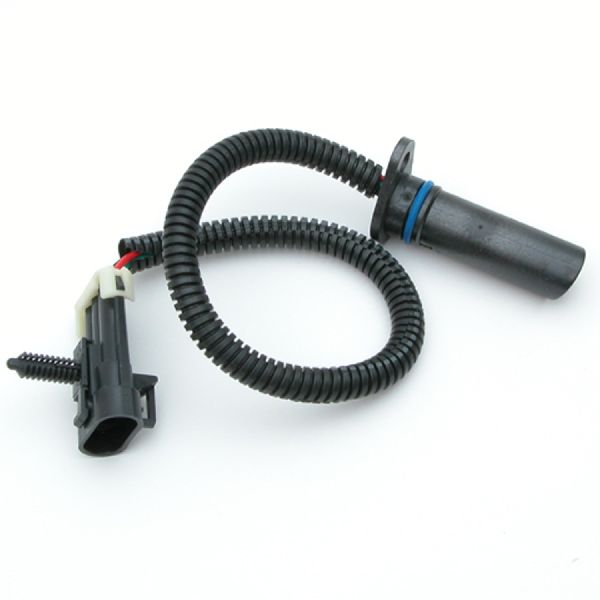

- On V6 models, the sensor is a standalone part, making replacement much cheaper and easier than on the V8.
Is Your Firebird Stalling or Running Rough?
A failing camshaft position sensor can cause a range of frustrating problems. Because it's so important for engine timing, a bad sensor can make your car difficult to drive or leave you stranded. Common symptoms include the engine cranking but not starting, stalling unexpectedly, rough idling, hesitation when you accelerate, and a noticeable loss of power. You will almost always get a Check Engine Light, with codes pointing to the camshaft sensor circuit.
Critical Information for V8 Owners (1993-1996 LT1)
If you have a 1993-1996 Firebird with the 5.7L LT1 V8 engine, you do NOT have a simple, standalone camshaft position sensor. The sensor is located inside the Optispark distributor, which is mounted on the front of the engine behind the water pump. You cannot replace just the sensor; you must replace the entire Optispark distributor assembly. These units are known to fail, especially when exposed to moisture (like a leaking water pump). The cost and labor for an Optispark replacement are significantly higher than for a V6 sensor.
Choosing the Right Aftermarket Sensor
For Firebird owners, especially those with the LT1 V8, part quality is critical. The labor to replace an Optispark is intensive, so you don't want to use a cheap part that might fail quickly. For V6 engines, the sensor is easier to access, but a reliable part still prevents future headaches.
Brand Quality Tiers
- Tier 1 - OEM & OE Supplier (Highest Trust): ACDelco and Delphi are the top choices. ACDelco is GM's original parts brand, and Delphi was the original equipment manufacturer for many GM parts. For a critical component like the Optispark, most Firebird and Corvette owners strongly recommend sticking with one of these two brands for reliability.
- Tier 2 - Reputable Aftermarket: Brands like NGK (NTK), Standard Ignition (SMP), and Hitachi have a strong reputation for producing quality sensors that meet or exceed OEM specifications. They are a solid choice if an OEM part is unavailable or out of budget.
- Tier 3 - Economy Brands: This category includes brands like Dorman, Walker Products, and others. While attractively priced, owner reviews are often mixed. Some report perfect fit and function, while others experience premature failure or fitment issues. For an easy-to-replace V6 sensor, this might be a calculated risk. For an LT1 Optispark, it is generally not recommended due to the high labor cost of a potential second replacement.
Pro Tip: When replacing an Optispark distributor on an LT1 V8, it is highly recommended to also replace the water pump, water pump seals, and the distributor seal at the same time. A leaking water pump is a primary cause of Optispark failure.
Cost to Replace a Camshaft Position Sensor
Costs vary dramatically between V6 and V8 models due to the Optispark design.
| Part / Service | V6 Engines (3.1L, 3.4L, 3.8L) | V8 Engine (5.7L LT1) |
|---|---|---|
| New Aftermarket Part | $23 - $103 | $150 - $500+ (Full Optispark Unit) |
| New OEM Part (ACDelco) | $60 - $120 | $400 - $700+ (Full Optispark Unit) |
| Shop Labor | $80 - $150 | $400 - $800+ (Requires water pump removal) |
Frequently Asked Questions
Where is the camshaft position sensor on my Firebird?
For V6 engines (3.1L, 3.4L, 3.8L), the sensor is typically located on the engine block, often behind the power steering pump or on the timing cover. For 1993-1996 LT1 V8 engines, it is inside the Optispark distributor on the front of the engine, under the water pump. Pre-1993 V8s do not use a separate camshaft position sensor; the signal is generated inside the HEI distributor.
What are the OBD codes for a bad camshaft sensor?
For 1996 and newer (OBD-II) models, you'll commonly see codes like P0340 (Circuit Malfunction) or P0341 (Circuit Range/Performance). Earlier OBD-I cars (pre-1996) will show different codes, such as Code 36 on 1992-1993 models, which can indicate a loss of the high-resolution signal from the Optispark.
Can I replace this sensor myself?
For a V6 engine, DIY replacement is feasible for someone with moderate mechanical skill. It may require removing the serpentine belt and power steering pump to gain access. For the LT1 V8, replacing the Optispark is a difficult and time-consuming job (4-6+ hours) that involves draining the cooling system and removing the water pump. It is often best left to an experienced mechanic.
Are there any recalls for the camshaft position sensor?
No, there have been no specific NHTSA recalls issued for the camshaft position sensor or the Optispark distributor on the 1989-1996 Pontiac Firebird. However, the Optispark system is a widely known failure point among owners.
Technical Specifications
OEM Part Numbers: 10456520 10456521 1104032 10457702
The primary difference is between standalone sensors for V6 engines and the complete Optispark distributor assembly for 1993-1996 LT1 V8 engines, which houses the optical camshaft position sensor internally. Early V8s (pre-1993) do not have a replaceable cam sensor.
