Engine Coolant Bypass Hose Guide for 1989-1997 Buick Regal
Everything a Regal owner needs to know about replacing a failing engine coolant bypass hose.
- For 3.8L engines, the original plastic coolant bypass elbows are a known failure point and should be upgraded to metal replacements.
- Symptoms include coolant leaks near the water pump, a sweet antifreeze smell, and engine overheating.
- Ignoring a coolant leak from this hose can lead to critical engine damage from overheating.
- This is a DIY-friendly repair for those with basic tools, but accessing the part may require removing the alternator.
Symptoms of a Failing Coolant Bypass Hose
When a coolant bypass hose or its related fittings start to fail on your Regal, the signs are usually noticeable. Ignoring them can lead to serious engine damage. Here’s what to look for:

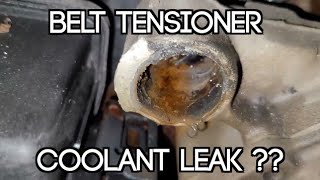

- Coolant Leaks: This is the most common symptom. You may find puddles of green or orange fluid under your car. On the 3.8L engine, these leaks often appear near the water pump or belt tensioner assembly where the plastic elbows are located. 🎬 See how to identify and fix leaks at the belt tensioner.
- Sweet Smell: Antifreeze has a distinct sweet odor. If you smell this coming from your engine bay, it's a strong sign of a coolant leak, even if you can't see it. The heat from the engine can cause small leaks to evaporate before they drip to the ground.
- Engine Overheating: A leaking hose leads to low coolant levels. If the level drops too much, your engine can't cool itself effectively, causing the temperature gauge to climb. Driving an overheating engine can cause severe damage like a warped cylinder head or blown head gasket.
- Low Coolant Level: If you find yourself constantly needing to add coolant to the overflow tank, you likely have a slow leak in the system. The bypass hose and its fittings are a common source for this type of leak.
A Common and Critical Failure Point
For Regals equipped with the 3.8L (L27/L36) V6 engine, the original plastic coolant bypass elbows are a notorious failure point. Over time, the plastic becomes brittle from heat cycles and can crack or completely break, causing a sudden and significant coolant leak. Many owners and mechanics recommend upgrading to metal replacement elbows to prevent this from happening again.
🎬 Watch: Step-by-step guide to replacing the 3.8L coolant bypass elbow.Choosing the Right Aftermarket Bypass Hose
When replacing the coolant bypass hose or elbows, you have several quality aftermarket options. Since the original GM parts for this generation often included failure-prone plastic components, aftermarket solutions can be a significant upgrade.
Brand Quality Tiers
- Premium Options (Recommended Upgrade): Brands like Gates and ACDelco are often considered top-tier for rubber hoses. For the plastic elbows common on the 3.8L engine, aftermarket metal (aluminum) versions are available and highly recommended for their durability over the original plastic design. These prevent future failures from brittle plastic.
- Standard OE-Quality Options: Continental and Dayco are also reputable brands that produce reliable, OE-quality hoses. They offer a good balance of quality and price and are a solid choice if you are replacing a standard rubber hose. Fitment can sometimes be an issue with any aftermarket hose, so comparing the new hose to the old one before installation is a good practice.
Pro Tip: Replace More Than Just the Hose
If your Regal has the plastic bypass elbows, it is critical to replace them with new ones when you service the hose, even if they aren't leaking yet. It is highly recommended to upgrade to the aluminum versions for long-term reliability. Also, inspect the clamps and replace them if they are rusted or weak.
Cost to Replace a Buick Regal Coolant Bypass Hose
The cost for this repair is very reasonable, especially if you do the work yourself. The parts are inexpensive, but labor costs can add up if you take it to a shop.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Hose/Elbows | $9 - $26 |
| Shop Labor | $90 - $150 |
| Total Estimated Cost | $99 - $176 |
Note: Prices are estimates and can vary based on your location, the specific parts chosen, and your vehicle's engine.
Frequently Asked Questions
Is it difficult to replace the coolant bypass hose on a 1989-1997 Regal?
For someone with basic mechanical skills, it's a manageable job. The difficulty can vary depending on the engine. On the 3.8L V6, it often requires removing the serpentine belt and alternator to access the bypass elbows. The biggest challenge is often dealing with the old plastic elbows, which can break off in the intake manifold or tensioner assembly, requiring careful extraction.
🎬 Watch this walkthrough on safely removing broken plastic elbows.Should I upgrade to metal coolant bypass elbows?
Yes. If your Regal has the 3.8L engine with plastic elbows, upgrading to aluminum replacements is highly recommended by mechanics and owners. The original plastic parts are a known weak point, and the metal versions provide a much more durable and reliable long-term solution.
Do I need to drain all the coolant to replace this hose?
While you might not need to drain the entire system, you will lose a significant amount of coolant when you remove the hose. It's best to drain the radiator into a clean pan. This minimizes mess and allows you to reuse the coolant if it's still in good condition. After the repair, you will need to top off and bleed the cooling system to remove any air pockets.
Were there any recalls for this issue?
Searches for recalls specifically for the coolant bypass hose on the 1989-1997 Buick Regal did not yield any results. There were some complaints filed with the NHTSA related to cooling system leaks on these vehicles, often mentioning plastic components, but no official recall was issued for this specific part.
Helpful Videos
Technical Specifications
The bypass system on the 3.8L V6 engine utilizes two elbow fittings that connect the belt tensioner assembly to the lower intake manifold, allowing coolant to circulate. These were originally made of plastic but are commonly replaced with more durable aluminum parts.
