Engine Coolant Thermostat Guide for the 1989-1997 Buick Regal
Solve overheating or no-heat problems by choosing the right thermostat for your Regal's engine.
- The most common failure is a thermostat stuck open, causing a lack of cabin heat and preventing the engine from warming up properly.
- For the popular 3.8L V6, replacement is a simple DIY job; for the 3.1L V6, it is more complex.
- ACDelco is the highly recommended OEM brand, with Gates being a trusted aftermarket alternative.
- Owners of 1997 models should verify that the engine fire safety recall (NHTSA 08V-118) has been completed.
Signs of a Failing Thermostat in Your Buick Regal
A thermostat is a simple part, but its failure can cause noticeable problems. Most thermostats are designed to fail in the open position to prevent overheating. Here are the common symptoms for a 1989-1997 Buick Regal:
- Engine Overheating: If the thermostat gets stuck closed, it will block coolant from reaching the radiator. This will cause the engine temperature to rise quickly, leading to overheating. This is the most serious failure type. 🎬 Watch: A quick guide to common bad thermostat symptoms.
- Engine Not Reaching Temperature / No Cabin Heat: More commonly, the thermostat will get stuck open. When this happens, coolant is always circulating. The engine will take a very long time to warm up, or it may never reach its proper operating temperature, especially in cold weather. A direct result is poor or lukewarm air coming from your heater vents.
- Temperature Gauge Fluctuates: A gauge that moves randomly between hot and cold can indicate a thermostat that is opening and closing at the wrong times or is sticking intermittently.
Choosing the Right Aftermarket Thermostat
For a critical and inexpensive part like a thermostat, brand and quality matter. Here’s a breakdown of the available brands for your Regal.
Brand Quality Tiers
| Tier | Brands | Assessment |
|---|---|---|
| OEM-Equivalent | ACDelco | ACDelco is the original equipment manufacturer for General Motors. Choosing ACDelco ensures you get a part that meets the original factory specifications for temperature, fit, and durability. For GM vehicles, forums and mechanics overwhelmingly recommend sticking with ACDelco. Note that sometimes an ACDelco box may contain a part made by another manufacturer like Motorad. |
| High-Quality Aftermarket | Gates | Gates is a well-respected name in cooling system parts. They are a solid alternative to OEM and are often considered a high-quality choice by professional mechanics and DIYers. |
| Standard Aftermarket | Motorad, Calorstat | Motorad is a very common aftermarket brand. While they can be a budget-friendly option, some users in automotive forums report mixed experiences, including premature failures. Calorstat is another standard option. These brands can be a viable choice, but for the small price difference, most Regal owners prefer the peace of mind that comes with ACDelco or Gates. |
Cost to Replace a Buick Regal Thermostat
Replacing a thermostat is one of the more affordable repairs. The main costs are the part itself and the labor. Below are typical cost ranges.
| Category | Estimated Cost |
|---|---|
| New Aftermarket Part | $7.12 - $35.01 |
| New OEM (ACDelco) Part | $15 - $45 |
| Shop Labor | $100 - $250 |
| Total (Shop Repair) | $115 - $295 |
Installation & Replacement Tips
The difficulty of this job depends on which engine your Regal has.

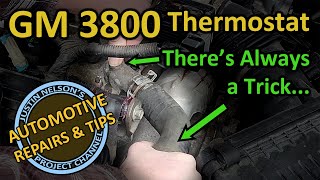

For the 3.8L (3800) V6: The thermostat is located in a housing on the top of the engine, making it very easy to access. The job involves removing two bolts, swapping the thermostat and gasket, and reinstalling the housing. Many owners can complete this in under an hour.

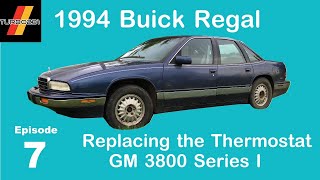

🎬 See this step-by-step replacement for the Series 1 3800 V6.For the 3.1L V6: The job is more involved. Access is tighter, and you may need to disconnect fuel lines and remove the engine torque strut to reach the thermostat housing. This can take more time and requires more care, especially when dealing with fuel lines.
Key Pro Tips:
- Clean the Mating Surfaces: After removing the old thermostat, thoroughly scrape and clean both the engine and the thermostat housing surfaces to ensure a leak-free seal with the new gasket.

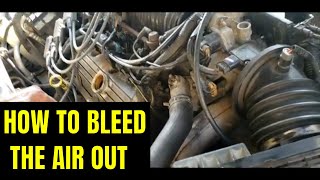

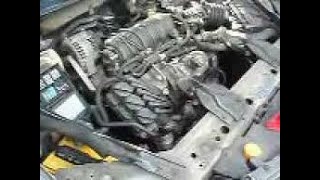

- Bleed the System: After refilling the coolant, you must bleed any trapped air from the cooling system. Many GM 3800 engines have a small bleeder screw on the thermostat housing for this purpose. 🎬 Watch: How to properly bleed air from the 3800 engine. Trapped air can cause overheating and other cooling system problems.
- Check the Coolant: This is the perfect time to check the condition of your coolant and flush the system if it's old or contaminated.
Known Issues, Recalls, and TSBs
Searches for official recalls or Technical Service Bulletins (TSBs) specifically for the engine coolant thermostat on the 1989-1997 Buick Regal did not yield any results. The common failures are related to normal wear and tear.
Important Safety Recall for 1997 Models: While not related to the thermostat, owners of 1997 Buick Regals with the 3.8L V6 engine should be aware of NHTSA recall 08V-118. This recall addresses an issue where engine oil could leak from a faulty valve cover gasket onto the hot exhaust manifold, creating a risk of an engine fire. The fix involves replacing the gasket. Check if this recall work has been performed on your vehicle.
Frequently Asked Questions (FAQ)
What temperature thermostat should I use for my Buick Regal?
For most 1989-1997 Buick Regals, the factory-specified temperature is 195°F. Using a thermostat with a lower temperature is not recommended as it can affect fuel economy and engine performance.
Can I just remove the thermostat if my car is overheating?
No. Removing the thermostat entirely is a bad idea. It will cause the engine to run too cool, leading to increased engine wear, poor fuel mileage, and no heat in the winter. It also masks the real problem. If your car is overheating, the thermostat is just one of several possible causes (e.g., bad water pump, clogged radiator, failing fans).
Do I need to use sealant on the thermostat gasket?
It depends on the gasket type. Many modern thermostats come with a rubber O-ring or a coated paper gasket that does not require sealant. However, some older procedures suggest a light coating of RTV sealant on the bolts or gasket. Always follow the instructions that come with your new thermostat. When in doubt, a clean, dry surface is often best for rubber seals.
My temperature gauge is wrong but the engine seems fine. Could it be the thermostat?
It's possible, but you should also check the coolant temperature sensor. On these Buick Regals, the dashboard gauge is run by a separate sensor or sender from the one that sends temperature information to the engine computer (ECM). It's common for the gauge sender to fail, giving an inaccurate reading while the engine is actually operating at the correct temperature.
Helpful Videos
Technical Specifications
The standard factory operating temperature for the thermostat is 195°F (90.5°C).
