Chevrolet Tracker Windshield Washer Pump Replacement Guide (1989-1997)
If your washer fluid isn't spraying, the fix is usually simple and affordable for your 1989-1997 Tracker.
- Before buying a new pump, check the fuse and fluid level, and listen for a humming sound to diagnose the issue.
- This is a very easy DIY replacement that takes less than 30 minutes and requires no special tools.
- The pump is shared with the 1989-1998 Geo Tracker and Suzuki Sidekick, making parts easy to find.
- Always use the new rubber grommet included with the pump to prevent leaks.
Is Your Tracker's Washer Pump Failing?
A dead windshield washer pump is a safety issue, especially in bad weather. Before you assume the pump is bad, do a couple of quick checks. First, make sure the washer fluid reservoir isn't empty. Second, check your fuse box for a blown fuse. If the fuse and fluid level are good, the pump is the most likely problem.
Diagnosing the Problem
- No Sound, No Fluid: If you activate the washers and hear nothing, the pump's electric motor has likely failed or isn't getting power. This is the most common sign of a dead pump.
- Humming Sound, But No Fluid: If you can hear the pump motor humming but no fluid comes out, the issue could be clogged nozzles, disconnected hoses, or a broken impeller inside the pump. Try cleaning the nozzles with a small pin first. 🎬 See how to diagnose and replace a faulty washer pump.
- Weak or Uneven Spray: If fluid just dribbles out or doesn't reach the whole windshield, the pump motor may be too weak to build enough pressure.
- Fluid Leaking: Puddles of blue washer fluid under your vehicle point to a leak. This can be caused by a cracked pump housing or a dried-out rubber grommet where the pump enters the reservoir.
Choosing the Right Aftermarket Pump
For a vehicle like the 1989-1997 Tracker, you don't need to hunt down an expensive original part. Quality aftermarket pumps provide the same performance for less money. The Chevrolet Tracker was a joint project with Suzuki, so while ACDelco is a GM brand, it functions as a high-quality aftermarket option for this model, similar to Trico.
| Brand Tier | Our Assessment |
|---|---|
| ACDelco | ACDelco is GM's official parts brand, offering products that are manufactured to meet original equipment (OE) specifications for fit and function. While the Tracker is a rebadged Suzuki, ACDelco pumps are a trusted, reliable choice that will install correctly and perform like the original. |
| Trico | Trico is a well-known leader in windshield wiper and washer systems. Their pumps are designed as direct-fit, easy-to-install replacements that provide a cost-effective and dependable solution for your Tracker. They are a popular choice for DIY repairs. |
Cost to Replace a 1989-1997 Chevrolet Tracker Windshield Washer Pump
| Service Type | Estimated Cost |
|---|---|
| New Aftermarket Part (DIY) | $24.64 - $47.91 |
| Shop Labor | $50 - $75 |
| Professional Replacement (Aftermarket Part + Labor) | $75 - $123 |
Pro Tip: Replacing this pump is a very easy DIY job. The pump is located on the outside of the washer fluid reservoir and simply pulls out. You can complete this repair in under 20 minutes with no special tools, saving you the entire cost of shop labor.
🎬 Watch this step-by-step DIY washer pump replacement for your Tracker.Frequently Asked Questions (FAQ)
Is it hard to replace the washer pump on a 1989-1997 Tracker?
No, this is considered a very easy repair. The pump is press-fit with a rubber grommet into the washer fluid reservoir, which is easily accessible in the engine bay. The job involves unplugging one electrical connector, one hose, and pulling the old pump out.
Where is the washer pump located on my Tracker?
The windshield washer pump is attached directly to the bottom of the windshield washer fluid reservoir. You can easily spot the reservoir (the plastic tank with a windshield icon on the cap) in your engine compartment.
Do I need a new grommet when I replace the pump?
It is highly recommended. Most new aftermarket pumps come with a new rubber grommet. Always use the new grommet to ensure a tight, leak-free seal between the new pump and the reservoir tank. An old, brittle grommet is a common source of leaks.
Are there any recalls for the Chevrolet Tracker washer pump?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls or technical service bulletins (TSBs) specifically for the windshield washer pump on the 1989-1997 Chevrolet Tracker.
Helpful Videos
Technical Specifications

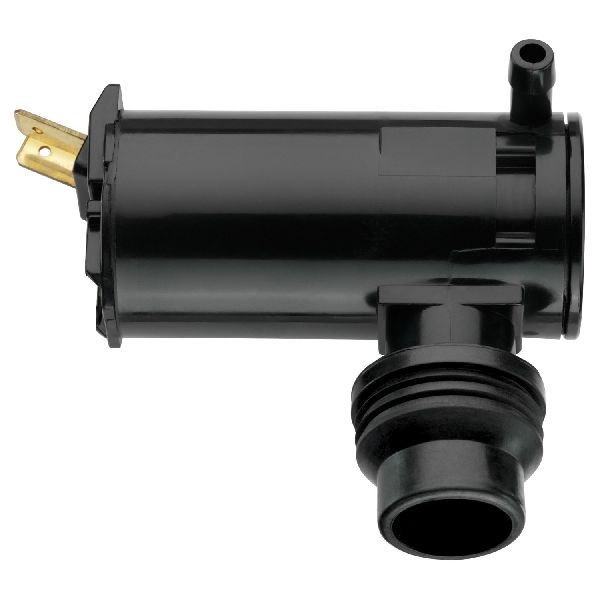

The pump is a small 12V DC motor that press-fits into the washer fluid reservoir. It includes one electrical connector and one hose port.
