Essential Guide to Radiator Replacement for the 1989-1997 Geo Prizm
Keep your Prizm's engine from overheating by understanding common radiator failures and how to choose the right replacement part.
- The most common failure on the original radiator is a crack in the plastic side tanks due to age.
- Since the Prizm is a rebadged Toyota Corolla, choosing an OEM-quality brand like Denso ensures excellent fit and reliability.
- This is a very DIY-friendly job, requiring only basic hand tools and about two hours.
- For maximum reliability, replace the radiator hoses, thermostat, and radiator cap at the same time as the radiator.
Signs of a Failing Geo Prizm Radiator
On a car as old as the 1989-1997 Geo Prizm, the original radiator is living on borrowed time. The most common point of failure is the plastic tanks on the sides or top/bottom of the radiator core. Over many years of heat cycles, this plastic becomes brittle and can crack, causing coolant leaks. Be on the lookout for these symptoms:
- Engine Overheating: The most serious sign. If your temperature gauge is in the red, pull over immediately.
- Visible Coolant Leaks: You may see puddles of green, pink, or red fluid under the front of your car. A common source is a crack in the radiator's plastic tank.
- Sweet Smell: Antifreeze has a distinct sweet, syrupy odor. If you smell this around your car after it's been running, you likely have a leak.
- Low Coolant Level: Frequently needing to top off your coolant reservoir is a sure sign of a leak somewhere in the system.
Cracked Plastic is Common
The original radiators in these cars use an aluminum core with plastic end tanks. After 20+ years, the plastic is the weakest link. A hairline crack is the most frequent cause of radiator failure on the Geo Prizm.
Choosing the Right Aftermarket Radiator
Since the Geo Prizm is a rebadged Toyota Corolla, you benefit from a wide selection of high-quality aftermarket parts. Finding a new OEM radiator from a GM dealer is unlikely and not cost-effective. Aftermarket options offer excellent value and, in some cases, improved durability.
Brand Quality Tiers for Your Prizm
Not all brands are created equal. Here’s how they generally stack up for your vehicle:
- Premium / Upgrade (e.g., CSF Radiator): Brands like CSF offer all-aluminum radiators that eliminate the original weak point—the plastic tanks. These are TIG-welded for superior strength and are a great choice if you want a part that will likely outlast the rest of the car.

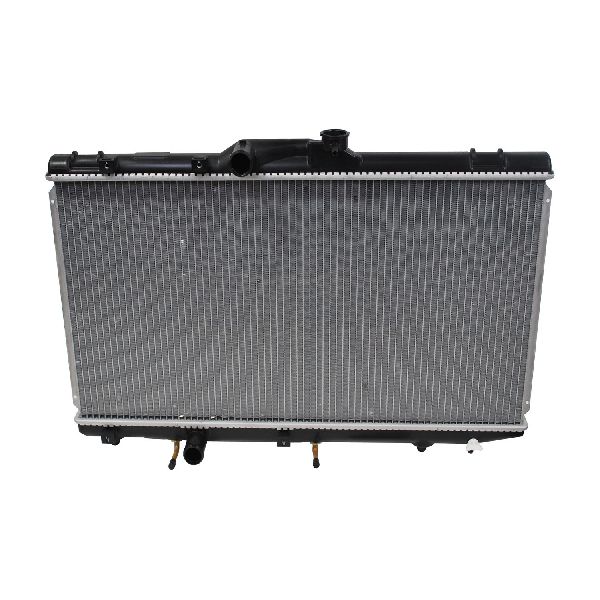

- OEM-Quality Aftermarket (e.g., Denso, Koyo): Denso was an Original Equipment (OE) supplier for Toyota, so their aftermarket parts are designed to meet the same strict standards for fit and performance. Many mechanics and owners consider Denso the best direct replacement. Koyo is another highly-regarded Japanese brand with a reputation for quality.

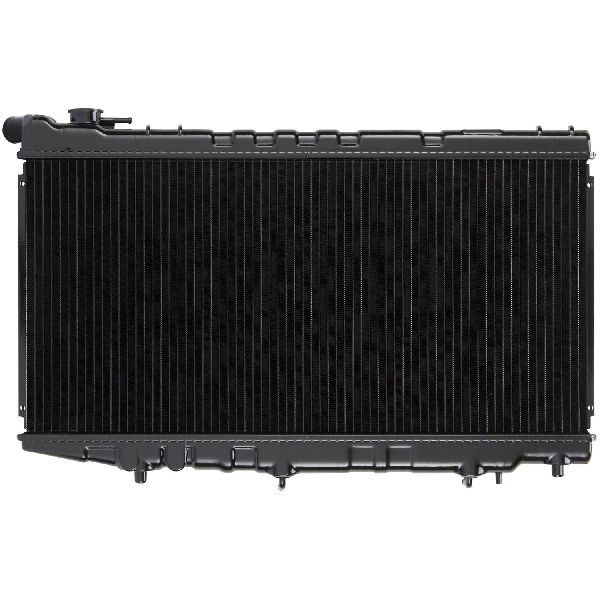

- Standard Aftermarket (e.g., Spectra, Nissens, ACDelco): These are reputable, widely available brands that provide a reliable, budget-friendly repair. While some users report they may not last as long as a Denso, they are a solid choice for most owners.
- Economy Brands (e.g., APDI, Global Parts, Onix): These are the most affordable options. Fit and finish can sometimes be inconsistent, but they can get your car back on the road for the lowest cost.
Manual vs. Automatic Transmission
Many aftermarket radiators are designed to fit both manual and automatic transmission models. If your Prizm has a manual transmission, the new radiator may have two extra small ports for an automatic transmission fluid cooler. These can be left capped as they are not needed for your car.
Estimated Replacement Costs
The cost to replace your Prizm's radiator can vary significantly based on the parts you choose and whether you do the work yourself.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Radiator | $36 - $335 |
| Shop Labor | $148 - $218 |
| Total Professional Replacement | $184 - $553+ |
Frequently Asked Questions (FAQ)
Can I use a radiator for a 1989-1997 Toyota Corolla?
Yes. The Geo Prizm is mechanically identical to the Toyota Corolla of the same generation (E90 for 1989-1992, E100 for 1993-1997). Parts like the radiator are interchangeable. Always confirm the engine size (1.6L or 1.8L) and transmission type when ordering.
What type of coolant should I use in my Geo Prizm?
The original factory fill was Toyota Red coolant. While modern universal coolants are available, using a high-quality Asian Red/Pink OAT (Organic Acid Technology) coolant is recommended to protect the cooling system components.
Should I replace my radiator hoses and thermostat at the same time?
Absolutely. It is highly recommended. The cooling system is already drained, making it the perfect time to replace other aging parts. Radiator hoses become brittle and weak over time, and a new thermostat is cheap insurance against future overheating problems.
Do I need to transfer any parts from my old radiator?
Yes, you will likely need to move the two rubber mounting bushings from the bottom of your old radiator to the new one. Also, be sure to transfer your electric cooling fan and its shroud to the new radiator.
Technical Specifications
OEM Part Numbers: 1640016720 1640015530 1640015370
Core Material: Aluminum; Tank Material: Plastic (OEM and most aftermarket) or Aluminum (performance aftermarket). Inlet/Outlet locations and diameters vary by year range (1989-1992 vs 1993-1997). Always verify fitment for your specific year and engine.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
