Mazda MPV Engine Oil Pressure Switch Guide: 1989-1999
Understand the signs of a failing oil pressure switch and choose the right replacement for your first-generation MPV.
- If your oil light comes on, stop driving immediately and check the oil level. Never assume it's just a bad switch.
- Before replacing the switch, have a mechanic test the engine's actual oil pressure with a mechanical gauge to rule out serious internal problems.
- Replacement is a simple DIY task, best done during an oil change, but requires a specific deep socket.
- Quality aftermarket brands like Standard, Facet, Hella, and Rostra are cost-effective and reliable choices for this part on an older MPV.
Is Your MPV's Oil Light Lying to You?
The most common reason an MPV owner suspects a bad oil pressure switch is a flickering or constantly illuminated oil warning light, even when the engine oil level is full. While this can certainly be a faulty switch, it's critical to understand that this light could also be warning you of a real, engine-threatening loss of oil pressure. Before replacing the switch, always verify the engine's actual oil pressure using a mechanical gauge. Ignoring a true low-pressure situation can lead to catastrophic engine failure.
Symptoms of a Failing Oil Pressure Switch
- Flickering Oil Light: The oil light on the dashboard may flicker or flash, especially when the engine is warm and at idle.
- Oil Light Stays On: The warning light may stay on constantly, even if you've checked the oil level and it's correct.
- Leaking Sensor: The switch itself can develop a leak. You might see oil residue on or around the sensor, or drips on the ground below it.
- Check Engine Light: In some cases, a failing switch can trigger the check engine light. Common trouble codes include P0520, P0521, P0522, and P0523.
Warning: Oil Light is a Serious Alert
Never assume the oil light is just a bad sensor. If the light comes on, stop the vehicle as soon as it is safe to do so, turn off the engine, and check the oil level. Driving with low oil pressure can destroy your engine in a very short time.

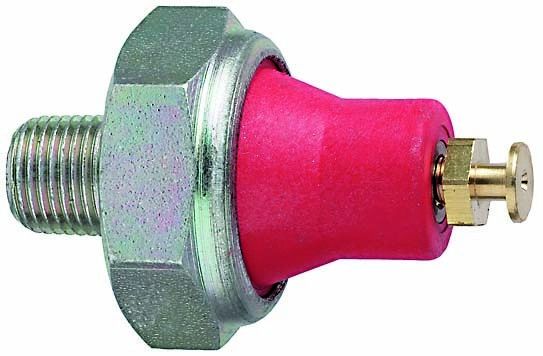

Choosing the Right Aftermarket Switch
For a vehicle like the 1989-1999 MPV, a new aftermarket oil pressure switch is a perfectly reasonable and cost-effective repair. The technology is simple, and several reputable brands produce reliable replacements. There is little practical difference in quality between an OEM and a quality aftermarket switch for this specific part.
- Standard Ignition (Standard Motor Products): A widely available aftermarket brand that has been producing sensors for decades. They are a common choice for general repairs.
- Facet: An Italian manufacturer with a long history of producing automotive electrical components since 1946. They are generally considered a reliable aftermarket option.
- Hella: A well-known German brand, often associated with lighting and electronics, that produces a wide range of OEM and aftermarket parts.
- Rostra Powertrain: This company is a certified OE and aftermarket supplier, though they are more known for transmission components and cruise control systems. Their focus on electronic sensors and switches speaks to their quality control.
Pro Tip: When choosing, focus on the warranty and return policy. All of these brands are established and should perform well. The biggest risk is not the brand, but installing a new switch without confirming the engine's actual oil pressure is healthy.
Cost of a New Oil Pressure Switch (1989-1999 Mazda MPV)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Switch | $8.94 - $18.64 |
| Shop Labor for Installation | $98 - $143 |
| Total Professional Replacement | $107 - $162 (plus tax/fees) |
Frequently Asked Questions
Where is the oil pressure switch located on my MPV?
The oil pressure switch is typically found screwed into the engine block, usually near the oil filter. This makes it easier to access when you are already underneath the vehicle for an oil change.
Can I replace the oil pressure switch myself?
Yes, this is a DIY-friendly job for most home mechanics. It involves unplugging the electrical connector, unscrewing the old switch with a special deep socket, and installing the new one. It's best to do this during an oil change, as some oil will spill out when the old switch is removed.
Do I need a special tool to replace it?
Yes, you will likely need an oil pressure switch socket or a specific size deep socket (sizes can vary, so it's best to check your new part). A standard socket is usually not deep enough to fit over the sensor body.
My oil light is on, but my oil level is full. Is it safe to drive?
No. You should not drive the vehicle. The light indicates low pressure, not low level. Your oil pump could be failing or there could be another serious internal engine issue. Have the vehicle towed and the oil pressure professionally tested.
Are there any recalls for the MPV oil pressure switch?
No, searches of the NHTSA database and technical service bulletins did not show any recalls or specific TSBs for the engine oil pressure switch on the 1989-1999 Mazda MPV.
Technical Specifications
The switch is located on the engine block, typically near the oil filter housing. It uses a single-pin electrical connector. A special deep socket is required for removal and installation.
