Mazda MPV Windshield Washer Pump Guide for 1989-1999 Models
Everything you need to know about diagnosing and replacing the windshield washer pump on your first-generation Mazda MPV.
- A silent pump often means it's failed or has no power; check the 'F. WIP' fuse first.
- If the pump hums but no fluid sprays, check for a full tank and clean the nozzles with a pin before replacing the pump.
- Replacement is a simple DIY job that involves removing the washer reservoir to access the pump at the bottom.
- An aftermarket Trico pump is a reliable and cost-effective replacement for this vehicle.
Is Your MPV's Windshield Washer Pump Failing?
A non-working windshield washer system is often caused by a bad pump, but it's important to check the simple things first. Before assuming the pump is dead, make sure your washer fluid reservoir is full. Also, listen carefully when you activate the washer switch. If you hear a humming sound from the pump, but no fluid comes out, you may have clogged nozzles or hoses, not a failed pump. You can try cleaning the nozzle holes with a small pin to see if that restores flow.
Symptoms of a Bad Washer Pump
If the simple checks don't solve the problem, look for these common signs of a failing pump:
- No Sound: You activate the switch and hear nothing at all. This usually points to an electrical issue, like a blown fuse or a dead pump motor.
- Humming, But No Fluid: If you've confirmed the nozzles aren't clogged and the tank is full, a humming pump that doesn't move fluid likely has a broken internal impeller.
- Weak or Uneven Spray: A pump that is wearing out may lose the ability to create strong pressure, resulting in a weak stream that doesn't effectively clean the windshield.
Check the Fuse First
Before you replace any parts, check the fuse for the washer system. On many Mazdas, this fuse is located in the interior fuse panel and is often labeled "F. WIP" or something similar. It may control both the wipers and the washer pump. A simple fuse replacement can save you time and money.
Choosing a New Aftermarket Pump for Your MPV
For a vehicle like the first-generation MPV, a new aftermarket pump is a practical and affordable choice. Original Equipment (OEM) parts can be difficult to find and expensive for older models. Aftermarket brands offer reliable, direct-fit replacements.

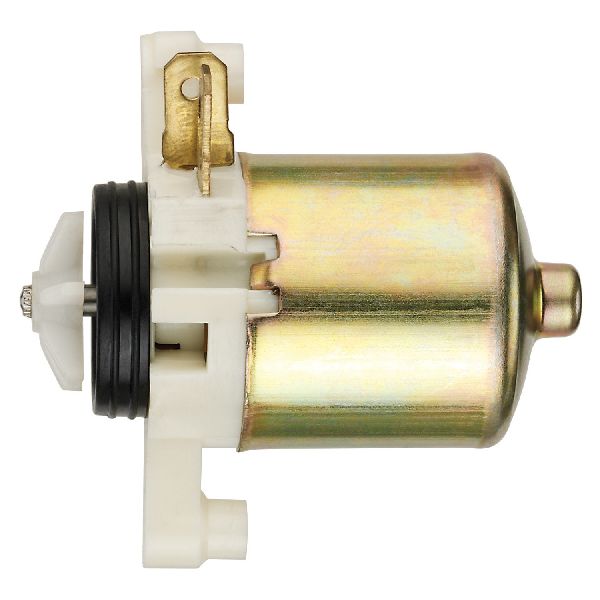

Trico is a well-known brand that produces washer pumps designed for easy installation. Their pumps are made to match the original's fit and function without needing modifications like drilling or special adjustments. For the 1989-1999 MPV, a Trico replacement pump is a solid, budget-friendly option that will restore your washer system's performance.
Estimated Replacement Costs
The cost to replace the washer pump on your MPV is very reasonable, especially if you do the work yourself. The part itself is inexpensive, and labor is minimal.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Pump (Trico) | $32.98 - $35.01 |
| Shop Labor | $60 - $120 |
| Total Professional Replacement | $93 - $155 |
Known Issues, Recalls, and Bulletins
There are no specific recalls or Technical Service Bulletins (TSBs) from Mazda or the NHTSA for the windshield washer pump on the 1989-1999 MPV. While some forums mention issues with clogged nozzles from using incompatible washer fluids, this is not a manufacturing defect. The failures seen on these vehicles are typically due to normal wear and tear over time.
Frequently Asked Questions (FAQ)
Is replacing the washer pump a DIY job?
Yes, this is a very DIY-friendly repair. For this specific MPV, the process involves removing the washer fluid reservoir to access the pump. You'll need basic hand tools to disconnect the reservoir, then simply unplug the electrical connector and hoses from the old pump and press the new one into place. The entire job can usually be done in under an hour.
Where is the washer pump located on a 1989-1999 Mazda MPV?
The windshield washer pump is press-fit into the bottom of the washer fluid reservoir. You will need to locate and remove the reservoir from the engine bay to gain access to the pump for replacement.
My rear washer works but the front doesn't. Is the pump bad?
Not necessarily. The first-generation MPV uses a single pump with two outlets—one for the front and one for the rear. If one is working, the pump motor is likely fine. The problem is probably a clog in the hose or nozzle for the non-working side, or a kink in the fluid line.
Do I need any special tools for the replacement?
No special tools are required. Basic hand tools like a socket set and pliers are usually sufficient. One repair guide mentions that a 1-inch socket can be useful to hand-press the retaining ring securely over the new pump. It is also recommended to lubricate the new pump's rubber seal with a dry lubricant like powdered graphite to make installation easier.
Technical Specifications
Fits 1989-1999 Mazda MPV. Dual outlet for front and rear washers.
