Ford E-350 Econoline Engine Oil Pressure Switch Guide (1989-2000)
Is your oil pressure gauge acting up? This guide will help you diagnose and choose the right replacement switch for your 1989-2000 Ford E-350 Econoline.
- A faulty oil pressure switch is the most common cause of an erratic gauge or flickering oil light on an E-350 with a healthy engine.
- The switch location varies by engine: 7.5L is at the rear of the block, 5.4L is near the oil filter, and 7.3L is on the HPOP reservoir.
- For 7.3L Power Stroke diesel engines, using an OEM/Motorcraft brand switch is highly recommended to avoid issues.
- Always check your oil level first when a warning appears; if the level is good and there's no engine noise, the switch is the likely problem.
Is Your Oil Pressure Gauge Lying?
A flickering oil light or a gauge that suddenly drops to zero can be alarming for any E-350 owner. While it can signal a serious engine problem, it's often just a failure of the oil pressure switch itself. These switches operate in a harsh environment of heat and vibration and can fail by leaking oil, sending false signals, or simply wearing out. Before assuming the worst, check for the common symptoms of a bad switch.
Symptoms of a Failing Oil Pressure Switch
If you see the oil warning light but don't hear any new, loud engine noises like knocking or ticking, there's a good chance the switch is the problem, not your engine's oil pressure. Look for these signs:
🎬 Watch: 9 warning signs of a bad oil pressure sensor.- Flickering Oil Light: The light may flicker, especially at idle, and then go away as you increase RPM.
- Erratic Gauge Readings: The gauge needle might bounce around, drop to zero, or go all the way to high for no reason.
- Warning Light Stays On: The oil pressure light comes on and stays on, but the engine sounds normal and the oil level is correct.
- Visible Oil Leaks: The switch itself may be leaking oil. You might see oil on the sensor body or drips on the ground below its location.
A Critical Warning
Never ignore an oil pressure warning. Always pull over safely and turn off the engine immediately. Check your oil level using the dipstick. If the oil level is low, you have a problem that needs immediate attention. If the oil level is full and the engine is not making any unusual noises, it is much more likely that the sensor has failed.
Choosing the Right Aftermarket Switch
For a simple part like an oil pressure switch on the gas-powered E-350s, you don't necessarily need to pay dealer prices for an OEM part. Quality aftermarket brands provide reliable performance for a fraction of the cost. For this repair, aftermarket parts offer excellent value.
A Note for Diesel Owners: If you have the 7.3L Power Stroke diesel engine, many experienced owners and mechanics strongly recommend using an OEM/Motorcraft sensor. These engines can be very particular about their sensors, and an aftermarket part may not provide the reliability needed.
Available Aftermarket Brands
- Standard Ignition (Standard Motor Products): A well-regarded aftermarket brand known for producing parts that are often an exact fit and work reliably. A solid choice for this repair.
- Hella: A major OEM supplier for many European car brands, Hella has a reputation for high-quality engineering and durable parts that meet or exceed original standards.
- Facet: An established Italian manufacturer that has been making automotive components for decades. They are a common and generally dependable option in the aftermarket.
- Global Parts / Rostra Powertrain: These brands offer a budget-friendly option for replacement. While they can perform correctly, they may not have the same long-term reputation as brands like Standard or Hella.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $7.35 - $54.78 |
| New OEM (Motorcraft) Switch | $25 - $70 |
| Shop Labor | $60 - $120 |
Frequently Asked Questions (FAQ)
Where is the oil pressure switch on my E-350 Econoline?
The location depends on your engine. Always confirm the location before starting work.
- 7.5L (460) V8: Typically found at the very back of the engine block, behind the intake manifold. It can be difficult to see and reach.
- 5.4L V8: Located on the driver's side of the engine, just above the oil filter housing. Access is from underneath the van. 🎬 See this 5-minute walkthrough for replacing the 5.4L switch.

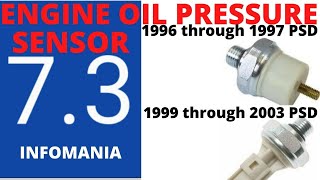

- 7.3L Power Stroke Diesel: Found on top of the High-Pressure Oil Pump (HPOP) reservoir, near the center of the engine. 🎬 Watch: How to locate and replace the 7.3L diesel sensor.
Can I replace the oil pressure switch myself?
Yes, this is a DIY-friendly job for most home mechanics. It usually takes less than an hour. You will need a special oil pressure switch socket or a deep socket that fits over the sensor's plastic connector. Be prepared for a small amount of oil to spill when you remove the old switch.
What happens if I ignore a bad oil pressure switch?
The biggest risk is that you won't know if your engine develops a real oil pressure problem. If the switch is faulty and you have an actual loss of oil pressure, you won't get a warning, which could lead to catastrophic engine failure. For the low cost of the part, it's a repair that should not be put off.
Is an oil pressure 'switch' the same as an oil pressure 'sensor'?
The terms are often used interchangeably, but there's a technical difference. A 'switch' is a simple on/off device that activates a light at a set pressure. A 'sensor' or 'sending unit' provides a variable signal that can move a gauge needle across a full range. For most 1989-2000 E-350s, the part functions as a simple switch, even if it moves a gauge.
Helpful Videos
Technical Specifications
OEM Part Numbers: GC3Z-9278-A ML3Z-9D290-A 6U5Z9278D SW1547B
Typically a single-pin connector, though some variations exist. Requires a special deep socket for removal and installation.
