A Guide to Replacing the Spark Plug Wire Set on Your 1989-2001 Mazda MPV
Fix engine misfires and restore performance by choosing the right spark plug wire set for your MPV's specific engine.
- NGK and Denso are the most recommended aftermarket brands for reliability and fit on a Mazda MPV.
- Always replace spark plug wires as a complete set, not individually.
- On V6 models, be prepared for a difficult replacement of the three rear wires due to tight access.
- Check for the outstanding ignition switch recall on 1989-1998 models, as it can cause similar symptoms and is a fire hazard.
Signs of a Failing Spark Plug Wire Set
When spark plug wires wear out, the signs are usually obvious. The insulation breaks down from heat and age, allowing the electrical energy to leak instead of reaching the spark plug. If you notice these symptoms with your MPV, your wires are likely the culprit.
- Engine Misfires: The engine may stumble, hesitate, or shake during acceleration. This is often more noticeable under load, like when driving up a hill.
- Rough Idle: When your MPV is stopped, the engine may vibrate or sound uneven.
- Check Engine Light: A misfire will often trigger the Check Engine Light. Common codes include P0300 for a random misfire, or P0301 through P0306, which point to a specific cylinder.
- Poor Fuel Economy: You may find yourself filling up the gas tank more often because the engine isn't burning fuel efficiently.
- Difficulty Starting: Worn wires can't deliver the strong spark needed to start the engine easily.
Important Vehicle-Specific Issues
Ignition Switch Recall (1989-1998 models): Mazda issued a major safety recall (NHTSA #15V674000) for a faulty ignition switch on all 1989-1998 MPVs. The internal grease can overheat, posing a fire risk and causing a wide range of electrical issues that can mimic a bad wire set or cause the engine to stall. Ensure this recall has been performed on your vehicle.
V6 Engine Difficulty: On MPVs with a V6 engine (both the 3.0L and 2.5L), the three spark plugs and wires located at the rear of the engine are notoriously difficult to access due to tight space against the firewall. What is a simple job for the front three cylinders becomes much more challenging for the rear three.

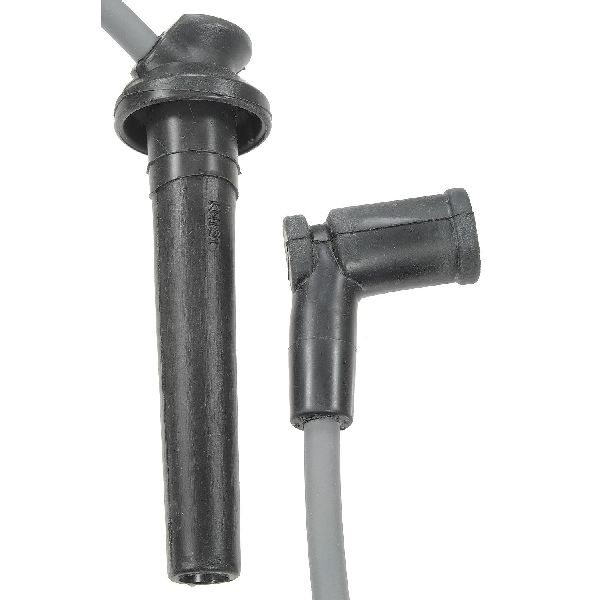

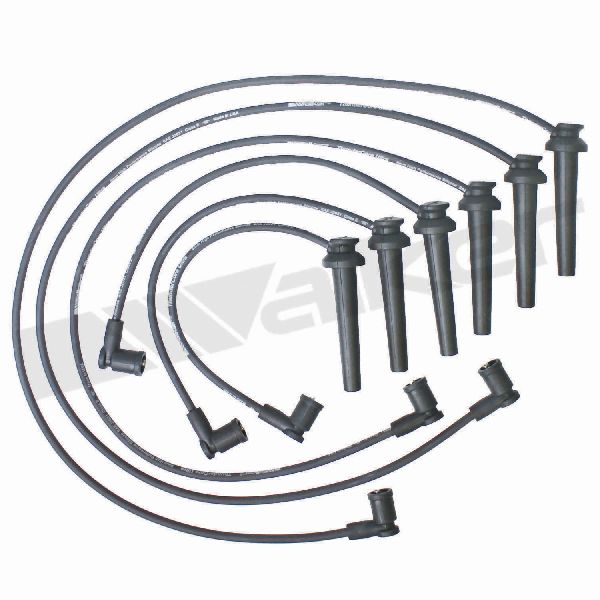

Choosing the Right Aftermarket Spark Plug Wires
For a vehicle like the 1989-2001 MPV, high-quality aftermarket parts are an excellent choice. The original parts may be discontinued, and top aftermarket brands often were the original suppliers to Mazda.
Brand Quality Tiers
- Top Tier (OEM-Equivalent): Brands like NGK and Denso are widely considered the best choice for Japanese vehicles. They are known for their reliability and precise fit. NGK wires are frequently recommended by MPV owners and mechanics.
- Standard Replacement: Brands like Standard Wires (SMP) and Walker Products offer reliable, budget-friendly options that meet or exceed factory specifications. They are a solid choice for a daily driver without the premium price tag.
- Performance: A brand like Granatelli focuses on high-performance applications. While they are high-quality, their benefits are not typically necessary for a stock Mazda MPV engine.
Common Ordering Mistakes
The 1989-2001 MPV used several different engines. The spark plug wire set is specific to your engine type (e.g., 2.6L I4, 3.0L V6, or 2.5L V6). Always verify your engine before ordering. For the 2001 model year specifically, Mazda used different ignition systems, so you may need to check if your wires have clip-on or push-on style connectors at the coil pack.
Estimated Replacement Costs
The cost to replace your spark plug wires can vary based on the brand you choose and whether you do the work yourself.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Wire Set | $27 - $79 |
| Shop Labor | $80 - $200 |
Labor costs can be higher for V6 models due to the difficulty of accessing the rear wires.
Frequently Asked Questions (FAQ)
Should I replace the spark plugs at the same time?
Yes, it is highly recommended. Old spark plugs can put extra strain on new wires, and you'll already have everything apart. It's the best way to ensure a complete ignition system tune-up.
Can I replace just one broken wire?
It's not recommended. Spark plug wires degrade at a similar rate. If one has failed, the others are likely weak and will fail soon. Always replace them as a complete set to ensure balanced performance and prevent future misfires.
Do I need dielectric grease for installation?
Yes. Applying a small amount of dielectric grease to the inside of each boot is a professional practice. It prevents moisture from causing corrosion, seals the connection, and makes it easier to remove the wires in the future.
How do I make sure I don't mix up the wires?
The best method is to replace the wires one at a time. Remove one old wire, match its length to a new wire from the set, and install the new wire. This prevents crossing wires, which would cause the engine to run very poorly or not at all.
Technical Specifications
OEM Part Numbers: GY02-18-140
Varies by engine. Sets are specific to the 2.6L I4, 3.0L V6, or 2.5L V6 engine. Wires typically feature a magnetic (mag) or inductive core with high-temperature silicone insulation.
