1990-1991 Lexus ES250 Brake Light Switch: A Complete Guide
Solve common brake light, cruise control, and shifting problems in your classic ES250.
- A bad brake light switch can cause no-start or stuck-in-park issues, not just brake light failure.
- This is an easy, inexpensive DIY repair that most owners can do in under 30 minutes.
- Always check the fuse and bulbs first. Also, be aware of the lamp failure module in the trunk, which can cause similar symptoms on the ES250.
- Choose a quality aftermarket brand like Rostra or Standard Ignition for a reliable, long-lasting repair.
Is Your ES250 Showing Strange Electrical Symptoms?
A failing brake light switch on the first-generation Lexus ES250 can cause problems that seem unrelated to the brakes. Because this simple part connects to several systems, its failure can be confusing. You might think you have a major transmission or electrical issue, but the fix could be a simple, inexpensive switch.
Symptoms of a Failing Brake Light Switch
Before you assume the worst, check for these common signs of a bad brake light switch. Keep in mind that on a 1990-1991 ES250, a part called the 'lamp failure module', located in the trunk, can also cause brake light issues. It's wise to check the fuse and bulbs first, then test the switch itself before ordering a replacement.
- Brake Lights Don't Work or Stay On: The most obvious symptom is your brake lights not lighting up when you press the pedal, or staying lit all the time and draining your battery.
- Shifter Stuck in Park: Your ES250 has a safety feature that locks the shifter in Park until you press the brake. If the switch is bad, it won't send the signal to unlock the shifter. You will hear a 'click' from the shifter area when you press the brake; this is the normal sound of the interlock trying to disengage.
- Cruise Control Doesn't Work: The cruise control system relies on the brake light switch to disengage. If the switch is faulty, your cruise control may not turn on at all.
Choosing the Right Aftermarket Brake Light Switch
For a vehicle like the 1990-1991 ES250, a new OEM (Original Equipment Manufacturer) part may be hard to find or expensive. Aftermarket parts are excellent, budget-friendly alternatives. The key is choosing a brand known for quality. Here’s a look at the available options.
| Brand Tier | Brand(s) | Our Take |
|---|---|---|
| Premium Aftermarket | Rostra Powertrain, Standard Ignition (SMP) | Rostra is a known OE supplier with a strong reputation for quality electronics made in the USA. Standard Ignition is a long-standing, trusted name in the aftermarket, often considered a reliable choice for electrical parts. Either brand is an excellent choice for reliability. |
| Standard Replacement | Facet | Facet is a large manufacturer offering a cost-effective option. While many users find their parts to be a perfect fit, overall brand ratings are slightly lower than premium brands. This is a good budget-friendly choice for a standard repair. |
Important Note on Cruise Control
Some replacement switches are made for models without cruise control. Be sure to verify that the part you are ordering is compatible with your vehicle's options. Check the part notes and specifications before purchasing.
Replacement Cost
Replacing the brake light switch is an affordable repair. The parts are not expensive, and labor is minimal if you take it to a shop.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $22.35 - $55.79 |
| Shop Labor | $45 - $90 |
Frequently Asked Questions (FAQ)
Can I replace the brake light switch myself?
Yes, this is a great DIY job for beginners. The switch is located above the brake pedal. You simply unplug the electrical connector, twist the old switch to remove it, and then install the new one. The entire job usually takes less than 30 minutes.
Where is the brake light switch located?
Look above your brake pedal, up under the dashboard. You will see a small switch with a plunger and an electrical connector mounted to the brake pedal bracket.
What happens if I don't replace a bad brake light switch?
Driving without working brake lights is extremely dangerous and illegal. You could also be left stranded if your car won't shift out of Park. If the switch fails with the lights on, it will drain your battery.
My brake lights still don't work after replacing the switch. What now?
First, double-check the 'STOP' fuse and the brake light bulbs. On the 1990-1991 ES250, there is also a 'lamp failure sensor' module in the trunk that can fail and prevent the brake lights from working, even with a good switch. If the switch, bulbs, and fuse are good, this module is the next thing to check.
Technical Specifications

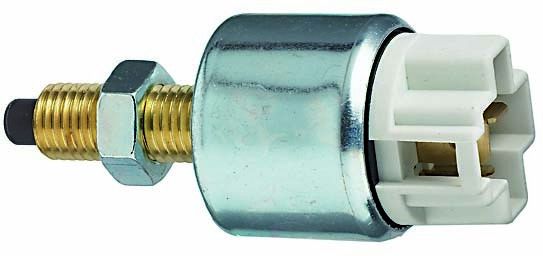

Mechanical plunger-style switch with a 2-blade or 4-blade connector, depending on cruise control option. Mounts to the brake pedal bracket.
