A Guide to the 1990-1993 Geo Storm Throttle Position Sensor
Solve your Storm's hesitation, rough idle, and poor performance by understanding its throttle position sensor.
- A bad TPS on a Geo Storm typically causes hesitation, rough idle, and poor acceleration.
- This is a DIY-friendly repair, but the new sensor MUST be adjusted with a multimeter for the car to run correctly.
- Symptoms can also be caused by a bad Idle Air Control (IAC) valve, so a proper diagnosis is important.
- Higher-quality brands like Delphi and NGK are recommended for better reliability.
Is Your Geo Storm's Throttle Position Sensor Failing?
If your 1990-1993 Geo Storm is experiencing drivability issues like stalling, hesitating, or a rough idle, a failing throttle position sensor (TPS) is a common suspect. This sensor is a simple but critical part of the engine management system. Over time, the internal electronic contacts can wear out, creating "dead spots" that send faulty information to the engine computer. This can lead to a variety of frustrating problems that can make your car feel unreliable.
Symptoms of a Bad TPS on a Geo Storm
A bad TPS can mimic other engine problems, but there are several key signs to watch for:
- Hesitation or Stumbling: When you press the gas, the car may hesitate or feel like it's losing power before picking up speed.
- Rough Idle: The engine may idle unevenly, surge, or even stall when you're stopped.
- Poor Acceleration: Your Storm might feel sluggish and lack its usual power.
- Jerky Automatic Shifting: The transmission may shift at the wrong times, either too late or too early, causing a jerky ride.
- Check Engine Light: A failing TPS will often trigger the Check Engine Light on your dashboard.
- Black Exhaust Smoke: In some cases, a bad sensor can cause the engine to run too rich, resulting in black smoke from the tailpipe.
Pro Tip: Check Other Parts Too
Symptoms like a rough idle can also be caused by a faulty Idle Air Control (IAC) valve or vacuum leaks. It's common for these parts to be looked at when diagnosing idle issues on a Geo Storm.
Choosing the Right Aftermarket TPS
Since original Geo/Isuzu parts are no longer made, you will be choosing from various aftermarket brands. They generally fall into a few quality tiers:

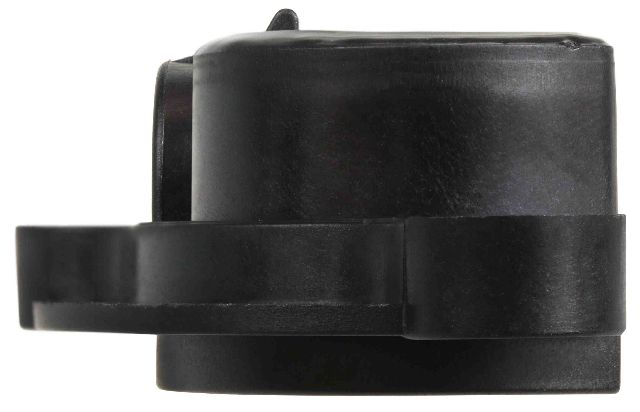

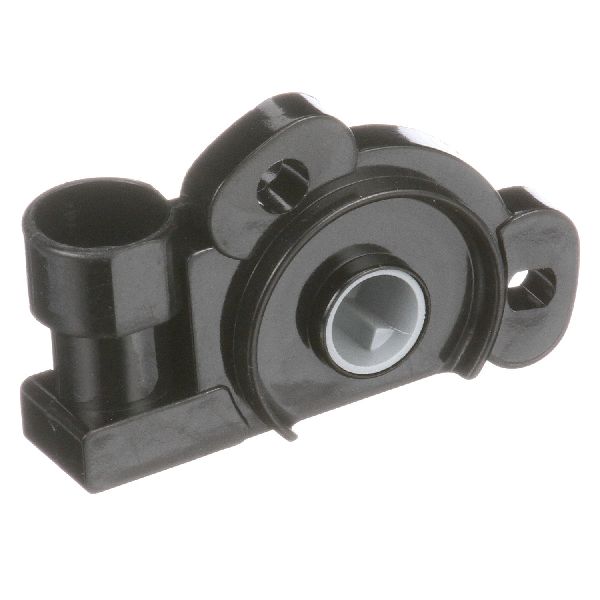

- OEM-Quality Aftermarket (Higher Cost): Brands like Delphi and NGK (NTK) are known for making parts that meet or exceed original factory specifications. They are a top choice for reliability and longevity.

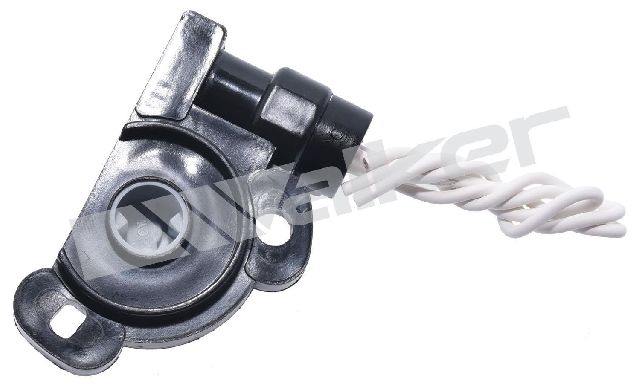

- Standard Replacement (Mid-Range Cost): Brands such as Standard Ignition (SMP) and Walker Products offer a good balance of quality and price, making them a popular choice for many repairs.
- Value-Oriented (Lower Cost): Brands listed simply as Replacement or store-specific brands like Duralast offer a budget-friendly option to get your car running properly, though their long-term durability may vary.
Aftermarket TPS Cost for 1990-1993 Geo Storm
| Brand Tier | Typical Price Range |
|---|---|
| OEM-Quality (e.g., Delphi, NGK) | $50 - $70 |
| Standard Replacement (e.g., Standard Ignition) | $35 - $55 |
| Value-Oriented (e.g., Replacement) | $23 - $35 |
Note: Prices are estimates and can vary by retailer.
Important: Adjustment is Required!
Unlike many modern sensors, the TPS on a 1990-1993 Geo Storm is adjustable and must be calibrated after installation. This involves using a multimeter to set a specific voltage reading while the sensor is loosely installed. Skipping this critical step will result in continued poor performance, even with a new part.
Frequently Asked Questions
Can I clean my Geo Storm's TPS?
No, the sensor is a sealed electronic unit. The failure is usually internal wear, which cannot be fixed by cleaning. However, it is a great idea to clean the throttle body itself when you replace the sensor.
Is the TPS the same for the 1.6L and 1.8L engines?
Yes, aftermarket parts listings show that the same throttle position sensor is used for both the 1.6L and 1.8L engines available in the 1990-1993 Geo Storm.
What happens if I don't replace a bad TPS?
You will continue to have poor engine performance, bad fuel economy, and potential stalling. Driving with a faulty TPS can be unpredictable and potentially unsafe due to sudden power loss or surging.
How do I test my Geo Storm's TPS?
You can test the TPS with a multimeter. You would check for a smooth, steady change in voltage or resistance as you slowly open the throttle by hand. Any sudden jumps or drops in the reading indicate a faulty sensor. Specific testing procedures for older Isuzu/Geo models can be found in repair manuals or online resources.
Technical Specifications
The sensor is adjustable and typically has a 3-prong blade-style male terminal. Calibration after installation is required.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
