A Guide to the Starter Motor for the 1990-1994 Chevrolet Cavalier
If your Cavalier won't start, the starter motor is a likely suspect; here's what you need to know before you buy a replacement.
- Starter failure symptoms include a single click, slow cranking, or grinding noises.
- Always check the battery and its connections first, as they can mimic starter problems.
- For this vehicle's age, a new aftermarket starter is a reliable and cost-effective choice.
- The replacement is a manageable DIY job for those with some mechanical experience, taking about 1-2 hours.
Is Your Cavalier's Starter Failing?
A starter motor usually gives a few warning signs before it fails completely. If you notice any of these issues with your 1990-1994 Cavalier, it's time to investigate the starting system. Many starting problems, however, can be caused by a weak battery or corroded terminals, so always check those components first.
First, Check the Battery
Many starting problems are caused by a weak or dead battery, or by corroded battery terminals. Before you decide to replace the starter, make sure your battery is fully charged and the connections are clean and tight. The side-post battery terminals on these cars must be especially clean and tight for the starter to get enough power. A battery can have enough power to turn on the lights but not enough to crank the engine.
Common Failure Symptoms
- Single, Loud Click: You turn the key and hear one loud click, but the engine doesn't crank. This often means the starter's solenoid is working, but the motor itself isn't turning.
- No Sound at All: If you turn the key and get silence, the problem could be the starter, but you should first check your battery and its connections.
- Slow Engine Crank: The engine turns over very slowly, even with a fully charged battery. This can indicate worn-out internal components in the starter motor.
- Grinding Noise: A grinding sound during or after the engine starts can mean the starter gear is damaged or not disengaging correctly from the engine's flywheel. This could also be caused by incorrect shimming.
- Intermittent Starting: The car starts fine one day but not the next. This can be a sign of a developing electrical problem inside the starter or a poor connection.
Choosing the Right Aftermarket Starter
For a vehicle from this era, a new aftermarket starter offers a great balance of reliability and cost-effectiveness. Original Equipment (OEM) parts for a 1990-1994 Cavalier are likely discontinued or very expensive. New aftermarket parts from reputable brands are built to meet or exceed original specifications and don't require a core charge, unlike remanufactured units.

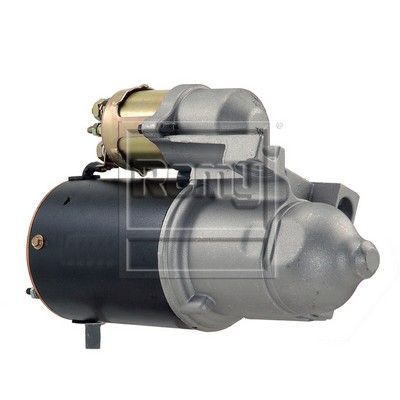

When considering brands like BBB Industries and Remy, both are established names in the aftermarket electrical parts industry. Forum discussions show that mechanics have had success with both brands, though individual experiences can vary. Remy was once a part of GM's Delco-Remy division before becoming independent, and they have a long history of making starters. BBB Industries is a major supplier of remanufactured parts to many auto parts stores. For this application, a new unit from either brand is a solid choice over a remanufactured one, as it ensures all components are fresh and unused.
Cost of Replacing a 1990-1994 Chevrolet Cavalier Starter
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $126.60 - $174.21 |
| Shop Labor | $92 - $200 |
| Total Professional Replacement | $218 - $375 |
A Note on Shims
Some GM vehicles of this era require shims to properly align the starter gear with the flywheel. Incorrect alignment can cause grinding noises and damage to both the new starter and the flywheel. If your old starter had shims, you should plan to install the new one with the same shims.
Frequently Asked Questions (FAQ)
Is it difficult to replace the starter on a 1990-1994 Cavalier?
The replacement is a manageable DIY job for those with some mechanical experience. It requires safely lifting the front of the vehicle, disconnecting the battery, and working from underneath to remove electrical connections and two mounting bolts. The job typically takes about 1-2 hours.
Where is the starter located?
The starter on the 1990-1994 Cavalier is located at the front of the engine, near the transmission and oil pan. You will need to access it from underneath the vehicle.
Were there any recalls or TSBs for the starter on this Cavalier?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database did not show any recalls specifically for the starter motor on the 1990-1994 Chevrolet Cavalier. While some general TSBs exist for starting and electrical issues, none point to a widespread, inherent flaw with the starter itself for this model year range.
What tools are needed to replace the starter?
You will typically need a socket and ratchet set (common sizes include 8mm, 10mm, 13mm, and 15mm), a wrench set, a floor jack, and jack stands for safety. Always disconnect the negative battery terminal before beginning work.
Technical Specifications
Voltage: 12V. Rotation: Clockwise. The starter is typically a Permanent Magnet Gear Reduction (PMGR) type. Shims may be required for proper installation.
