A Guide to the Starter Motor for 1990-1994 Chevrolet Cavalier
If your Cavalier won't start, the starter motor is a likely suspect. Here's what you need to know before you buy a replacement.
- Starter failure symptoms include a single click, slow cranking, or grinding noises.
- Always check the battery and its connections first, as they can mimic starter problems.
- For this vehicle's age, a new aftermarket starter from a brand like ACDelco or MPA is a reliable and cost-effective choice.
- The replacement is a manageable DIY job for those with some mechanical experience, taking about 1-2 hours.
Is Your Cavalier's Starter Failing?
A starter motor usually gives a few warning signs before it fails completely. If you notice any of these issues with your 1990-1994 Cavalier, it's time to investigate the starting system.
🎬 Learn how to test your starter for common failure causes.- Single, Loud Click: You turn the key and hear one loud click, but the engine doesn't crank. This often means the starter's solenoid is working, but the motor itself isn't turning.
- No Sound at All: If you turn the key and get silence, the problem could be the starter, but you should first check your battery and its connections. The side-post battery terminals on these cars must be clean and tight for the starter to get enough power.
- Slow Engine Crank: The engine turns over very slowly, even with a fully charged battery. This can indicate worn-out internal components in the starter motor.
- Grinding Noise: A grinding sound during or after the engine starts can mean the starter gear is damaged or not disengaging correctly from the engine's flywheel. This could also be caused by incorrect shimming.
- Intermittent Starting: The car starts fine one day but not the next. This can be a sign of a developing electrical problem inside the starter. 🎬 Watch this guide to identify five signs of starter failure.
First, Check the Battery
Many starting problems are caused by a weak or dead battery, or by corroded battery terminals. Before you decide to replace the starter, make sure your battery is fully charged and the connections are clean and tight. A battery can have enough power to turn on the lights but not enough to crank the engine.
Choosing a New Aftermarket Starter
For a vehicle from the early 1990s, new aftermarket parts are the most common and practical choice. Original GM parts may be discontinued or very expensive. Aftermarket brands offer a balance of value and quality.

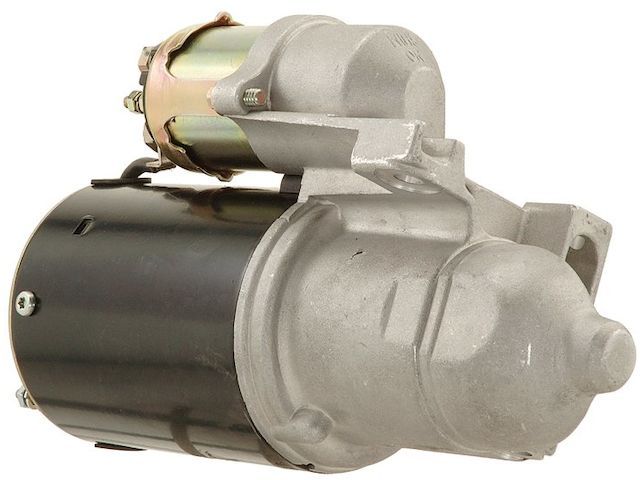

- ACDelco: As General Motors' own parts division, ACDelco is a trusted name. They offer different tiers of parts. Their "Gold" or "Professional" lines are typically manufactured to meet high-quality standards, sometimes in the same factories as original parts. For an older vehicle like the Cavalier, a new ACDelco starter is a reliable choice. 🎬 See a detailed review of the ACDelco Gold starter motor.

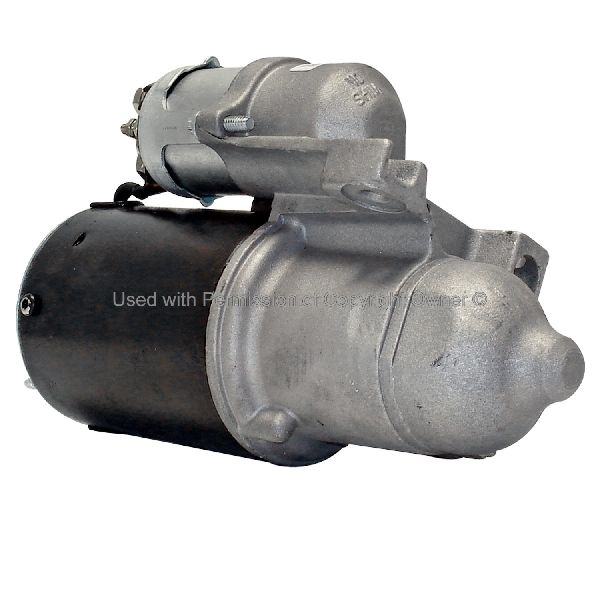

- MPA (Motor Parts of America): MPA is a large, reputable aftermarket manufacturer. They are known for producing both new and remanufactured parts that provide a good fit and function at a competitive price.
For this generation of Cavalier, a quality new aftermarket starter from a known brand like ACDelco or MPA is often a better choice than a remanufactured unit from a lesser-known brand. New units contain all-new components, eliminating the risk of issues from reused parts.
Typical Replacement Costs
The cost to replace a starter motor involves the part itself and labor. While prices vary by location and the specific part chosen, you can expect the following.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Starter Motor | $74.29 - $216.96 |
| Shop Labor | $100 - $200 |
| Total Estimated Cost | $174.29 - $416.96 |
Frequently Asked Questions
Is it difficult to replace the starter on a 1990-1994 Cavalier?
The replacement is a moderately difficult job that a DIYer with some experience can handle. It requires safely lifting the front of the vehicle and working from underneath. You will need to disconnect the battery, remove electrical connections and mounting bolts, and potentially a splash shield. The job typically takes about 1-2 hours.
Does my Cavalier's starter need shims?
Possibly. Some GM vehicles of this era require shims to properly align the starter gear with the flywheel. Incorrect alignment can cause grinding noises and premature failure of both the starter and the flywheel. If your old starter had shims, you should start by installing the new one with the same shims.
Were there any recalls for the starter on the 1990-1994 Cavalier?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database did not show any recalls specifically for the starter motor on the 1990-1994 Chevrolet Cavalier.
What tools are needed to replace the starter?
You will typically need a socket and ratchet set (with 8mm, 10mm, 13mm, and 15mm sockets), a wrench set, a floor jack, and jack stands for safety. Always disconnect the negative battery terminal before beginning work.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10455010 10465034
Fits 1990-1994 Chevrolet Cavalier with 2.2L 4-cylinder or 3.1L V6 engines. Uses a 12-volt, high-amperage connection. May require shims for proper installation.
