Ford Ranger Disc Brake Rotor Set Guide (1990-1994)
Here is what you need to know before replacing the front brake rotors on your first-generation Ford Ranger.
- The front rotors on a 1990-1994 Ranger are a hub-and-rotor assembly, meaning the wheel bearings must be serviced or replaced during the job.
- Always replace brake pads at the same time as the rotors to ensure proper performance and prevent damage to the new rotors.
- A pulsating brake pedal is the most common sign of warped rotors, which is the primary reason for replacement on these trucks.
- Verify if your truck is 2WD or 4WD before ordering, as the parts may be different.
Is Your Ranger Showing Signs of Bad Brake Rotors?
For this generation of Ford Ranger, the most common reason to replace your front rotors is a pulsating or shaking feeling when you slow down. This is almost always caused by warped rotors, where the surface has become uneven from heat and wear. You don't have to live with shaky brakes. Other signs you might need new rotors include:
- Pulsating Brake Pedal or Shaking Steering Wheel: If your brake pedal pulses or the steering wheel shakes when you brake, it's a classic sign of a warped rotor. The brake pads are grabbing an uneven surface, transferring that vibration to you.
- Loud Squealing or Grinding: A high-pitched squeal usually means your brake pads are worn out. If you hear a harsh grinding noise, the pads may be completely gone, and the metal backing plate is digging into your rotor, causing serious damage.
- Visible Grooves or Cracks: Look at the surface of your rotor. If you see deep lines, grooves, or actual cracks, it's time for a replacement.
- Rumbling or Humming Noise: A constant hum or growl that changes with vehicle speed is a tell-tale sign of a bad wheel bearing. Since the bearings are inside the rotor on these trucks, you will be replacing them at the same time.
Critical Part: Hub-and-Rotor Assembly
It is very important to know that the front brake rotors on 1990-1994 Rangers are a hub-and-rotor assembly. This means the wheel bearings are housed inside the rotor itself. You are not just buying a simple disc; you are buying an integrated component that requires servicing the wheel bearings during installation. 🎬 Watch a full walkthrough of the rotor and bearing replacement. It is highly recommended to install new bearings and seals at the same time. At a minimum, you must thoroughly clean the old bearings and repack them with fresh, high-temperature wheel bearing grease.

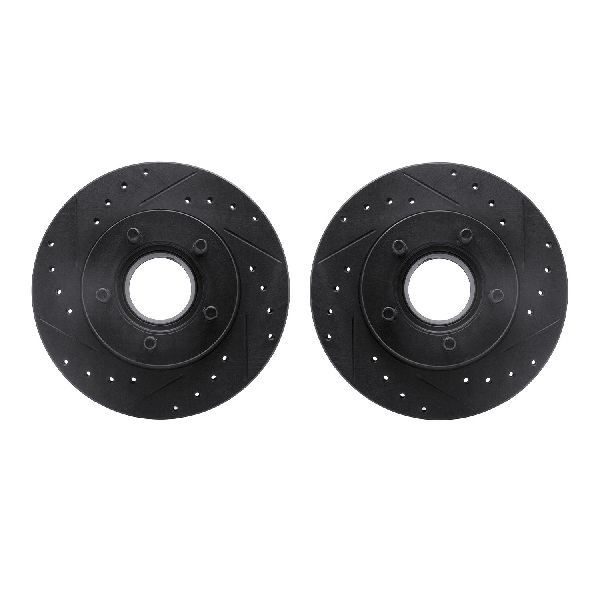

Choosing the Right Aftermarket Rotors
For a vehicle of this age, aftermarket rotors offer excellent value and are often the only practical choice. OEM parts can be difficult to find and expensive. When choosing an aftermarket rotor, consider the finish and brand reputation.
- Standard vs. Coated Rotors: Standard, uncoated rotors work perfectly fine but are susceptible to rust, especially on the hat (the center part) and in the cooling vanes. Coated rotors, like some from Dynamic Friction, have a protective layer that helps prevent rust, keeping them looking better for longer and potentially adding to their lifespan. This is a good choice for areas with wet weather or where roads are salted in winter.
- Brand Tiers: Dynamic Friction is a known aftermarket brand that generally offers good products for the price. Owners report that their rust-proof coatings hold up well. While there are occasional reports of issues like warping out of the box, this is a risk with any mass-produced part and they are generally considered a reliable choice for daily driving.
Pro Tip: 2WD vs. 4WD
Two-wheel drive (2WD) and four-wheel drive (4WD) models from this era often have different brake setups. The 4WD models may use a separate hub and rotor. Always confirm your truck's drivetrain before ordering parts to ensure you get the correct assembly.
🎬 See how to replace the brakes and rotors on a 1990 model.How Much Does a New Disc Brake Rotor Set Cost for a 1990-1994 Ford Ranger?
The cost will depend on the brand you choose and labor rates in your area. Always replace rotors and pads in pairs to ensure even braking.
| Part Category | Estimated Cost |
|---|---|
| New Aftermarket Rotors (Set of 2) | $156 - $311 |
| Shop Labor | $150 - $250 |
| Total Estimated Cost | $306 - $561 |
Note: Costs are estimates and can vary. This table reflects the cost for a set of two front rotors and the labor to install them. It does not include the cost of new brake pads, which should always be replaced at the same time. 🎬 Follow this step-by-step guide to replacing your Ranger's front brakes.
Frequently Asked Questions (FAQ)
Do I have to replace my brake pads when I replace my rotors?
Yes, absolutely. You should always install new brake pads with new rotors. Putting old, worn pads on a new rotor will create an uneven wear pattern and can quickly lead to the same pulsation problems you're trying to fix.
Do I need to replace or repack the wheel bearings?
Yes. Because these Rangers use a hub-and-rotor assembly, the job requires removing the wheel bearings. It is highly recommended to install new bearings and seals at the same time. If you reuse the old bearings, they must be cleaned and repacked with fresh wheel bearing grease.
What does 'bedding in' new brakes mean?
Bedding-in is a process of several controlled stops to properly transfer a thin, even layer of friction material from the new brake pads to the new rotors. This is critical for smooth, quiet, and powerful braking. Failing to bed-in your brakes is a common cause of future vibration issues. Always follow the procedure recommended by the brake parts manufacturer.
Are there any recalls for 1990-1994 Ranger brakes?
There are no specific recalls for the disc brake rotors themselves. However, a major safety recall (NHTSA 96V-024) was issued for 1991-1994 Rangers because the studs mounting the master cylinder to the brake booster could break, leading to a complete loss of brakes. While this is a separate part, it's a critical safety issue for owners of these trucks to be aware of.
Helpful Videos
Technical Specifications
The key specification for this vehicle is that the front disc brake rotor is an integrated hub-and-rotor assembly. This differs from later vehicles that use a separate 'slip-on' rotor. The assembly contains the wheel bearings and requires specific installation procedures including packing bearings with grease and setting bearing preload. There are differences between 2WD and 4WD models.
