Your Guide to the 1990-1994 Mazda Protege Engine Valve Cover Gasket Set
Stop that burning oil smell and keep your engine clean by choosing the right valve cover gasket for your Protege.
- The most common sign of failure is a burning oil smell from oil dripping on the hot exhaust.
- This is a great DIY job for beginners; the key is to thoroughly clean the mating surfaces before installing the new gasket.
- Always buy a full 'set' that includes spark plug tube seals and bolt grommets for a complete, leak-free job.
- Beck Arnley and Reinz offer OEM-level quality, while Apex is a reliable budget-friendly alternative.
Is Your Valve Cover Gasket Failing?
The valve cover gasket on the 1990-1994 Mazda Protege lives in a hot environment and is made of rubber or cork, which hardens and cracks over time. When it fails, the symptoms are usually obvious and shouldn't be ignored.
Common Symptoms of a Bad Gasket:
- Burning Oil Smell: This is the most common sign. Oil leaks from the gasket and drips onto the hot exhaust manifold, where it burns off and creates a distinct, unpleasant smell that you may notice inside and outside the car.
- Visible Oil Leaks: You may see oil and grime building up on the side of the engine, directly below the valve cover. The highest point of an oil leak is often the source.
- Oil in Spark Plug Wells: If your Protege's engine starts to run rough or misfire, it could be because oil has leaked past the spark plug tube seals, which are part of the valve cover gasket set. This oil can short out the spark plugs and wires.
- Low Engine Oil: A significant leak will cause your engine to lose oil over time. If you find yourself needing to top off your oil frequently, a bad valve cover gasket could be the culprit.
Choosing the Right Aftermarket Gasket Set
For a vehicle like the 1990-1994 Protege, aftermarket gaskets offer excellent value and quality. The original gaskets have likely been replaced at least once, and modern aftermarket materials are often designed to be more durable than the originals. Here’s a look at the available brands.
Brand Quality Tiers
Tier 1: OEM-Quality Brands

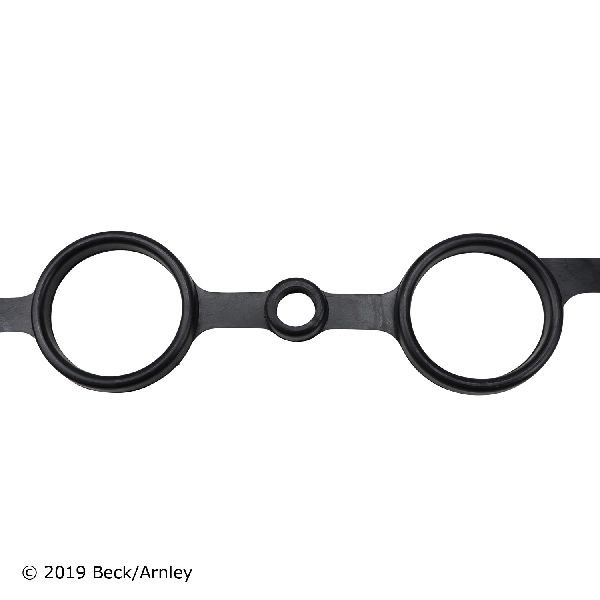

- Beck Arnley: This brand is well-known for sourcing parts from original equipment manufacturers. A Beck Arnley gasket is often the same part you would get from the dealer, just in a different box, ensuring a perfect fit and long life.
- Reinz (Victor Gaskets): Victor Reinz is a major OEM supplier, especially for European brands, and has a strong reputation for quality and reliability. Their gaskets are known for being well-made and durable.
Tier 2: Reliable Budget-Friendly Brands

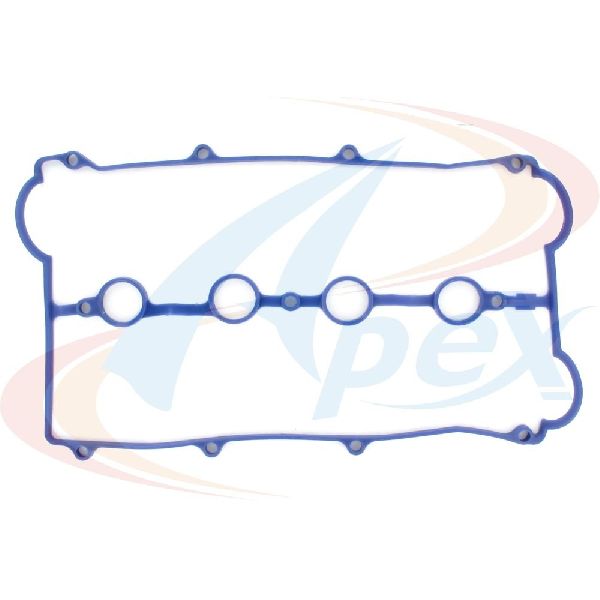

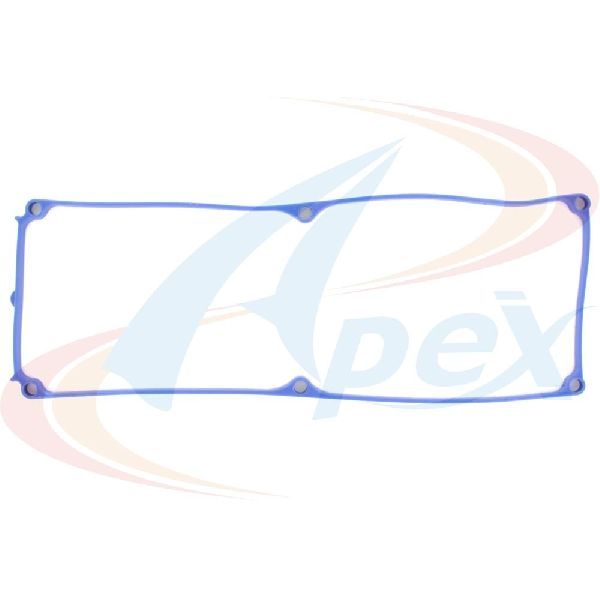

- Apex: Often a more affordable option, Apex gaskets are a solid choice for budget-conscious repairs. While they may not have the same OEM pedigree as Beck Arnley or Reinz, they are a widely used brand that provides a reliable seal for daily driving.
Pro Tip: When you buy a valve cover gasket "set," make sure it includes the spark plug tube seals and the grommets for the valve cover bolts. Replacing all these components at the same time is critical for a leak-free repair.
Typical Costs for a Valve Cover Gasket Set
| Part Type | Price Range |
|---|---|
| New Aftermarket Gasket Set | $19.05 - $56.32 |
| Shop Labor for Installation | $60 - $150 |
Note: Prices are estimates and can vary based on brand, location, and vehicle specifics.
Frequently Asked Questions
Is replacing the valve cover gasket a DIY job?
Yes, for most home mechanics with basic tools, this is a very manageable job. The 1.6L and 1.8L engines in the Protege offer good access. The process involves removing a few hoses and wires, unbolting the cover, cleaning both surfaces thoroughly, and installing the new gasket. The entire job can typically be done in 1-2 hours.
Do I need to use sealant with the new gasket?
Yes, but only in specific spots. It is common practice to apply a small dab of RTV silicone sealant at the sharp corners where the cylinder head meets the front timing cover and at the back near the camshaft seals. This helps prevent small leaks in these critical areas.
What is the most common mistake when replacing this gasket?
Not properly cleaning the mating surfaces. Any old gasket material, oil, or dirt left on the cylinder head or the valve cover can prevent the new gasket from sealing correctly, leading to a leak. Take your time to clean both surfaces until they are spotless.
Could another leak be mistaken for a valve cover gasket leak?
Yes. On the 1990-1994 Protege, an oil leak from the distributor O-ring can look very similar to a valve cover gasket leak, as it is in the same area. It's a good idea to inspect the area around the distributor when you are checking for leaks.
Technical Specifications
Fits 1990, 1991, 1992, 1993, and 1994 Mazda Protege models equipped with either the 1.6L SOHC or 1.8L DOHC four-cylinder engines. Gasket sets are typically made from molded rubber or high-quality cork-rubber composite.
