Steering Tie Rod End Guide for the 1990-1995 Dodge Caravan
Everything a second-generation Caravan owner needs to know before replacing their steering tie rod ends.
- Symptoms include loose steering, clunking noises, and uneven tire wear.
- Replacing tie rod ends is critical for safety; complete failure can cause a loss of steering control.
- Always get a professional wheel alignment immediately after replacing any tie rod ends.
- For this van, quality aftermarket brands like Delphi or Mevotech offer the best value and longevity.
Signs of a Failing Tie Rod End on Your Caravan
When the tie rod ends on your 1990-1995 Dodge Caravan start to fail, you'll notice some distinct symptoms. Because these parts are a simple ball-and-socket joint, they wear out over time, creating looseness or "play" in your steering. Catching the problem early is key to avoiding more significant issues and ensuring your van is safe to drive.
- Shaky or Loose Steering: You might feel a vibration in the steering wheel, especially at higher speeds. The steering may feel less responsive, as if there's a delay between turning the wheel and the van responding.
- Clunking or Popping Noises: A common sign is a clunking or popping sound from the front end, particularly when making sharp turns at low speeds or going over bumps. This is the sound of the worn joint moving around excessively.
- Uneven Tire Wear: Worn tie rods can cause the front wheels to be misaligned. Check your front tires; if you see excessive wear on the inner or outer edges, it's a strong indicator that your tie rods and alignment need to be checked.
- Vehicle Pulling to One Side: When a tie rod is loose, it can throw off the alignment, causing your Caravan to pull to the left or right even when you're trying to drive straight.
Mechanic's Tip: The "Wiggle Test"
You can check for play yourself. Safely jack up the front of the van and support it on jack stands. Grab a tire at the 3 and 9 o'clock positions and try to wiggle it side-to-side. If you feel or hear a clunk or see movement, you likely have a bad tie rod end.
Choosing the Right Aftermarket Tie Rod End
For a vehicle like the 1990-1995 Caravan, original equipment (OEM) parts can be hard to find and expensive. The aftermarket offers many good-quality options that are readily available. The key is to choose a reputable brand. Here’s a breakdown of the common brands available for your van.
Brand Quality Tiers
- Premium/Heavy-Duty (Best): Brands like Delphi are often considered OEM-equivalent or better. They are known for high-quality manufacturing and durability. Mevotech also offers a "Terrain Tough" (TTX) line which is often built heavier than stock, though their standard parts are considered more mid-grade. If you want a part that is likely to last, these are excellent choices.
- Trusted Aftermarket (Better): This tier includes brands like Dorman and the standard Mevotech line. Dorman is known for making a huge range of replacement parts that fit well, though quality can sometimes be inconsistent compared to premium brands. Mevotech's standard line offers a good balance of affordability and quality for a daily driver.
- Economy (Good): Crown Automotive often falls into the more budget-friendly category. While they can be a cost-effective solution, they may not have the same longevity or robust construction as the premium brands. For a vehicle that sees light use, this can be an acceptable option.
Important: Recalls and Technical Service Bulletins (TSBs)
Searches for the 1990-1995 Dodge Caravan did not reveal any specific recalls or TSBs directly related to the steering tie rod ends failing. However, there was a steering-related recall in 1996 for 1991-1992 models concerning the steering column shift tube, which is unrelated to the tie rods themselves. Always address steering issues promptly, regardless of official notices.
Cost to Replace Caravan Tie Rod Ends
The cost is relatively low for parts, but remember that a wheel alignment is mandatory after replacement.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Outer Tie Rod End (1) | $16 - $38 |
| Shop Labor (per side) | $75 - $150 |
| Front-End Wheel Alignment | $100 - $180 |
| Total DIY Cost (2 sides + alignment) | $132 - $256 |
| Total Shop Cost (2 sides + alignment) | $282 - $586 |
Frequently Asked Questions (FAQ)
Do I need to replace inner and outer tie rods at the same time?
Not necessarily. You only need to replace the part that is worn. However, if one is bad, it's wise to inspect the others carefully. If you are paying for labor, it can be more cost-effective to replace related components at the same time.
Should I replace tie rods in pairs?
Yes, it is highly recommended to replace both the left and right outer tie rod ends at the same time. They wear at similar rates, and replacing both ensures even steering response and handling.
Is a wheel alignment really necessary after replacing a tie rod end?
Absolutely, yes. Replacing a tie rod end will change your vehicle's toe alignment. Skipping the alignment will cause poor handling, unsafe driving conditions, and will rapidly wear out your tires. Consider the cost of an alignment part of the job.
What's the difference between a greasable and a sealed tie rod end?
Greasable tie rods have a zerk fitting that allows you to add new grease periodically, which can extend their life by flushing out contaminants. Sealed units are maintenance-free but cannot be re-greased. For a vehicle like the '90-'95 Caravan, a greasable part can be a good long-term choice if you perform regular maintenance.
Technical Specifications

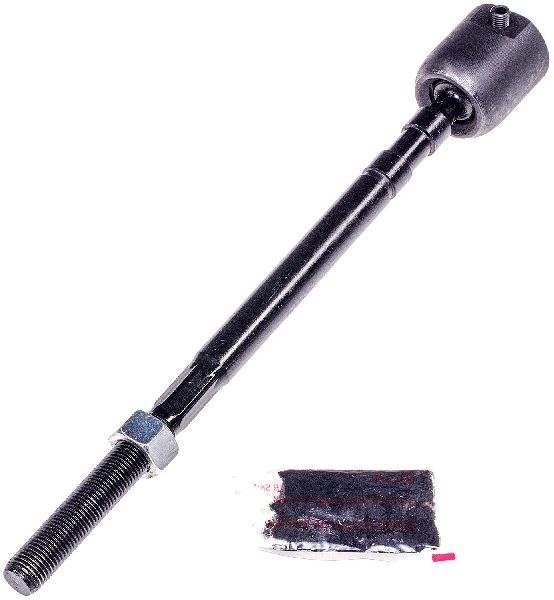

The 1990-1995 Dodge Caravan uses a front steering configuration with one inner and one outer tie rod end per side, connecting the steering rack to the steering knuckle. The outer tie rod end is a ball-and-socket joint that allows for both pivoting and rotational movement.
