Engine Cooling Fan Clutch Guide for the 1990-1995 GMC G2500
If your G2500 van is overheating in traffic or making a loud roaring noise, your fan clutch is the likely culprit.
- The most common failure symptom is engine overheating in slow traffic that resolves at highway speeds.
- A loud, constant roaring noise means the clutch is seized, which hurts fuel economy and performance.
- Aftermarket brands like Hayden, GMB, and US Motor Works are reliable options, with OEM parts being hard to find.
- Ensure the replacement part matches your van's specific options (engine, A/C, axle ratio) for proper function.
Is Your Fan Clutch Failing? Common Symptoms
A bad fan clutch can cause problems ranging from annoying noises to serious engine damage. Here are the most common signs that your G2500's fan clutch needs to be replaced:
- Engine Overheating at Low Speeds: This is the classic symptom. If your temperature gauge climbs when you're idling or in slow traffic but returns to normal at higher speeds, the fan clutch is the prime suspect. It's not engaging to pull air through the radiator when you need it most.
- Loud Roaring Noise: If the fan clutch is seized, it will be locked on all the time. This creates a loud "jet engine" or roaring sound that gets louder with engine RPM. This constant load also hurts fuel economy and engine power.
- Fan Spins Too Freely: With the engine completely off and cool, give the fan a spin by hand. If it spins more than one or two times with no resistance, the internal fluid has likely leaked out, and it can no longer engage properly.
- Wobbling or Leaks: Visually inspect the fan clutch. Any sign of oily fluid leaking from the center indicates a failed seal. If you can wiggle the fan back and forth, the bearing is worn out and needs replacement.
Check the Water Pump, Too
A wobbly fan can also be a sign of a failing water pump bearing. Since the fan clutch is mounted to the water pump, it's a good idea to inspect the water pump for leaks or play at the same time. Many owners replace both at once for peace of mind.
Choosing the Right Aftermarket Fan Clutch
For a vehicle of this age, OEM parts from GM are likely discontinued or very difficult to find. The aftermarket is your best bet. Quality can vary, but several reputable brands offer reliable replacements for the G2500. These are typically thermal clutches that operate based on temperature.
Aftermarket Brand Tiers

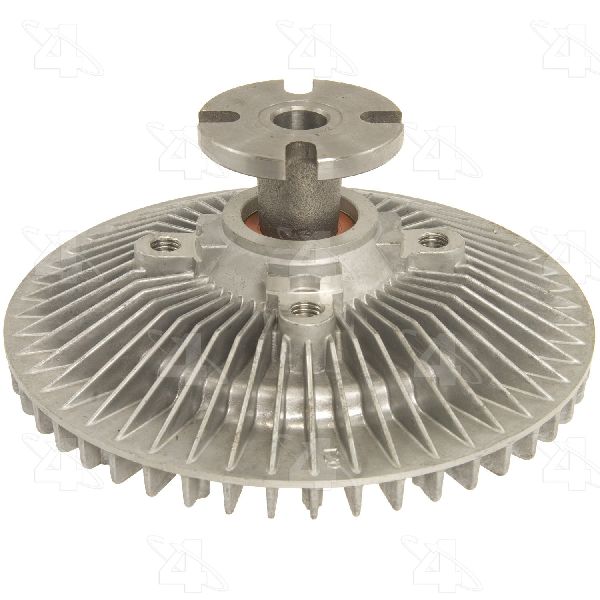

- Good - Value Options (Four Seasons, Global Parts): These brands provide a cost-effective solution. Four Seasons is a well-known aftermarket brand, though some forum users have mixed opinions. Global Parts Distributors (GPD) specializes in cooling and A/C components and is a solid choice for a standard replacement.
- Better - Reputable OE Suppliers (GMB, US Motor Works): GMB is a global manufacturer for both OEM and aftermarket, known for precision and reliability. US Motor Works is often praised in forums for good performance, though some units can be aggressive (a bit noisy when engaged).

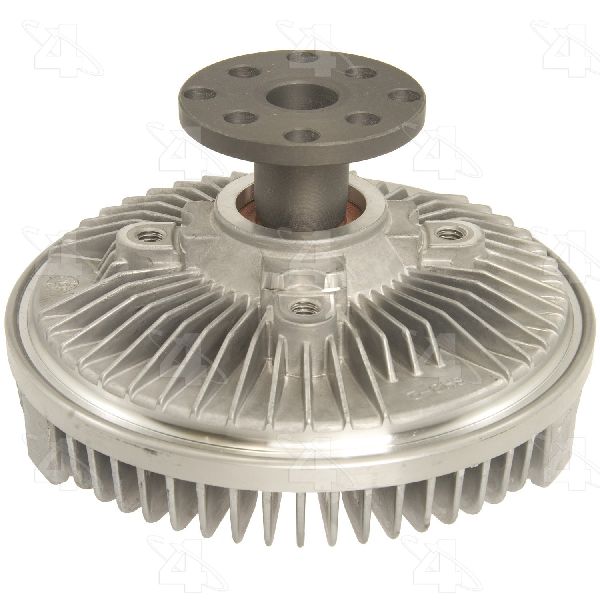

- Best - Heavy-Duty & Proven Performers (Hayden): Hayden is one of the most recognized names in fan clutches and has a long history. They often offer standard, heavy-duty, and severe-duty options. For a hard-working G2500 van, choosing a heavy-duty or severe-duty option from a brand like Hayden is a smart upgrade for better cooling performance, especially if you tow or carry heavy loads.
Match Your Van's Options
GM used different fan clutches depending on the van's engine, rear axle ratio, and whether it had air conditioning. Always match your new part to the vehicle's specifications. Some parts have codes like "DD" or "GN" stamped on them; matching these is crucial for correct function.
Cost to Replace a G2500 Fan Clutch
Replacing the fan clutch is a manageable DIY job for someone with mechanical experience. The main cost is the part itself, with labor being relatively low.
| Item | Cost Range |
|---|---|
| New Aftermarket Fan Clutch | $57 - $126 |
| Shop Labor | $90 - $175 |
| Estimated Total (Shop) | $147 - $301 |
Frequently Asked Questions
Is it hard to replace the fan clutch myself?
It is considered a DIY-friendly job with a difficulty of about 2 out of 5. You will need a special fan clutch wrench set, which can often be rented from auto parts stores. The process involves removing the fan shroud, using the special wrenches to unscrew the large nut holding the clutch to the water pump, and then swapping the clutch off the fan blade assembly.
Is a loud fan noise always a bad sign?
Not always. It is normal for the fan clutch to engage and create a roaring sound for a minute or two on a cold start or when the engine is very hot. However, if the roar is constant and never goes away as you drive, the clutch is likely seized and needs replacement.
What's the difference between a standard, heavy-duty, and severe-duty clutch?
The main difference is how aggressively they engage and how much air they pull. A standard clutch might turn the fan at 60% of the water pump's speed, while a heavy-duty or severe-duty clutch can engage up to 85-90%. For a G2500 van, which often works hard, a heavy-duty clutch is a good upgrade for improved cooling under load.
My new aftermarket clutch seems louder than the old one. Is it bad?
Not necessarily. Many aftermarket clutches, especially heavy-duty models, are designed to be more aggressive than the original factory part. This means they may engage more often or more firmly, creating more noise but also providing better cooling. As long as it disengages after the engine cools, it is likely working as designed.
Technical Specifications
OEM Part Numbers: 22124526 22149568 22073413 22082085 22120030 22135391 22136248
The fan clutch for this vehicle is typically a thermal, viscous type. Depending on the specific application and options, it will have either a standard or reverse (counter-clockwise) rotation. It attaches to the water pump pulley via a large threaded nut.
