Choosing a New Distributor for Your 1990-1996 Cadillac Commercial Chassis
It is critical to know if your professional vehicle has the early HEI or later Optispark ignition system.
- First, confirm your ignition type: 1990-1993 models have a simple HEI distributor, while 1994-1996 models use the complex front-mounted Optispark.
- For 1994-1996 LT1 engines, always replace the water pump at the same time as the Optispark distributor to prevent future failures from coolant leaks.
- When replacing an Optispark, choose a quality brand like ACDelco, Delphi, or an upgraded vented design from MSD for better longevity.
- The high cost of an Optispark replacement is primarily labor; the job is very difficult and not recommended for novice mechanics.
A Tale of Two Ignitions: HEI vs. Optispark
Before you shop for a new distributor, you must identify which ignition system your Cadillac Commercial Chassis uses. This depends entirely on the model year and engine.
- 1990-1993 Models (5.0L & 5.7L V8): These vehicles use a traditional High Energy Ignition (HEI) distributor. It's a robust and simple design located at the rear of the engine. Failures are usually straightforward, related to wear on the cap, rotor, or ignition module. Replacement is a relatively simple job for a DIY mechanic.
- 1994-1996 Models (5.7L LT1 V8): These later models use the LT1 engine with its infamous Optispark distributor. This is a complex optical unit mounted to the front of the engine block, directly behind the water pump. While very accurate when new, it is highly susceptible to failure from moisture, especially from a leaking water pump.
The Optispark Problem
The Optispark's location beneath the water pump is its biggest weakness. Coolant leaks from the pump's weep hole can drip directly onto the distributor, causing moisture to get inside. This moisture fouls the optical sensor and causes corrosion, leading to misfires, poor running, and eventually a no-start condition. For this reason, it is highly recommended to replace the water pump anytime the Optispark distributor is replaced, even if it is not currently leaking.
Symptoms of a Failing Distributor
Whether you have an HEI or an Optispark, the symptoms of failure are similar, though they may appear more suddenly with the Optispark.
- Engine misfires, which can feel like a stumble or hesitation.
- Rough or unstable idle.
- Difficulty starting the engine, especially in damp weather.
- Engine stalls when hot but may restart after cooling down.
- Check Engine Light illumination.
- For Optispark, symptoms can worsen dramatically as the engine warms up.
Choosing the Right Aftermarket Distributor
The quality of your replacement part matters, especially with the sensitive Optispark system. Brands can be grouped into different quality tiers.
Brand Quality Tiers
Tier 1: Premium OEM & Performance Upgrades
These brands offer the best quality, reliability, and design improvements. They are the recommended choice for the LT1 Optispark system.
- ACDelco & Delphi: As original equipment suppliers to GM, their parts offer a direct fit and factory-grade performance. For an Optispark, a genuine ACDelco or Delphi unit is a safe and reliable choice.
- MSD: A top performance brand, MSD offers a redesigned Optispark distributor that is a popular upgrade. It features a billet aluminum housing, improved seals to prevent leaks, and a fresh air vent to combat moisture buildup, addressing the original design's main flaws.
Tier 2: Standard Aftermarket
These brands provide a good balance of quality and value, suitable for both HEI systems and as a cost-effective option for the Optispark if a premium brand is out of budget.

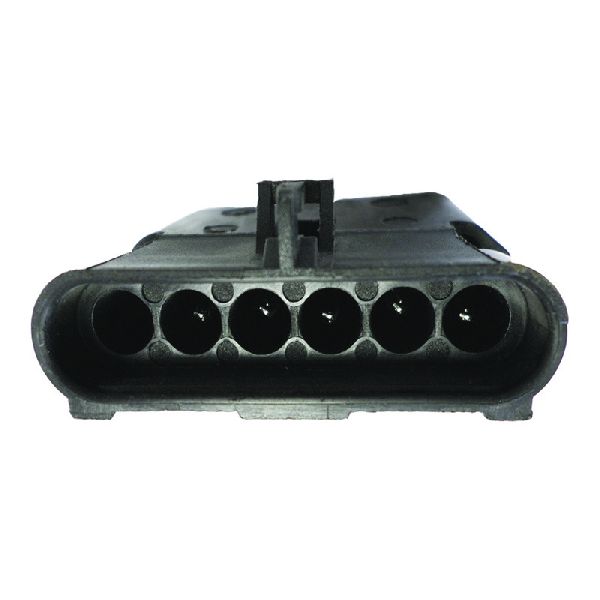

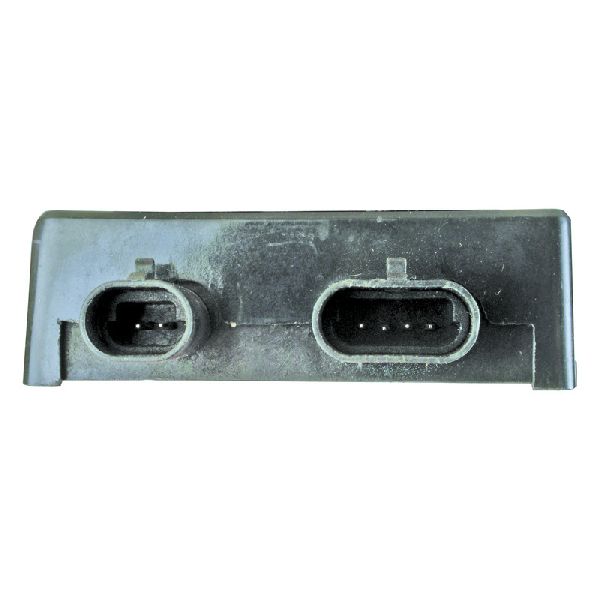

- WAI Global: Known for producing 100% new, not remanufactured, electrical parts that meet or exceed OE specifications.
- Cardone: A well-known brand that offers both new and remanufactured distributors. Quality can be good, and they often come with a lifetime warranty, but some forum users report mixed experiences.
Tier 3: Economy Brands
These are the most budget-friendly options.
- Replacement: This brand offers direct-fit parts at a low cost. While functional, they may not have the same longevity or robust construction as higher-tier brands. This is a viable option for an older, less-critical HEI system but should be considered carefully for an Optispark due to the high labor cost of replacement.
Pro Tip: Look for a Vented Optispark
Later model Optispark distributors were updated with a vacuum ventilation system to pull moisture and ozone out of the housing. When replacing an early, un-vented unit (1994), it is a worthwhile upgrade to install a later-style vented distributor. Brands like MSD incorporate this feature into their designs.
| Part Type | Estimated Cost |
|---|---|
| New OEM (ACDelco/Delphi) | $230 - $550 |
| New Aftermarket | $60 - $705 |
| Remanufactured (Cardone) | $80 - $300 |
| Shop Labor | $150 - $900 |
Note: Costs are estimates and can vary based on brand, vehicle year (HEI vs. Optispark), and labor rates. The high end of the labor cost reflects the difficult Optispark replacement.
Frequently Asked Questions (FAQ)
Why is replacing the Optispark distributor so expensive?
The high cost is due to labor. The Optispark is located behind the water pump, requiring the cooling system to be drained and the water pump, belts, and pulleys to be removed for access. This process can take a professional mechanic 4-6 hours.
Should I replace my water pump when I replace my Optispark?
Yes, absolutely. A leaking water pump is the number one killer of Optispark distributors. Since the water pump must be removed to access the distributor, replacing it at the same time is a critical preventative measure that saves you from having to pay for the same labor twice when the old pump eventually fails.
Is it hard to replace the HEI distributor on my 1990-1993 model?
No, for a mechanically inclined person, it is a relatively easy job. It involves marking the position of the old distributor, removing a single hold-down clamp, and carefully installing the new one. It is crucial to mark the rotor's position before removal to ensure the engine timing remains correct.
Are there any recalls for the distributor on this vehicle?
No. A search of the National Highway Traffic Safety Administration (NHTSA) database shows no recalls for the distributor on the 1990-1996 Cadillac Commercial Chassis.
Technical Specifications
OEM Part Numbers: 1103916
Distributor Type: Electronic HEI (1990-1993); Optical (1994-1996). Engine Compatibility: 5.0L V8, 5.7L L05 V8, 5.7L LT1 V8.
