Chevrolet G30 1990-1996 Distributor Ignition Pickup Replacement Guide
Solve stalling and no-start problems on your G30 van by learning how to diagnose and replace the distributor ignition pickup.
- A failing ignition pickup is a very common cause of stalling and no-start issues on 1990-1996 G30s.
- Replacement requires removing and disassembling the entire distributor, making it a moderately difficult job.
- Choose a high-quality aftermarket brand like ACDelco, Delphi, or Standard Ignition for long-term reliability.
- While the distributor is out, it is a good idea to also replace the ignition control module, cap, and rotor.
Is Your G30 Stalling or Refusing to Start?
A faulty distributor ignition pickup is a common cause of frustrating ignition problems in 1990-1996 Chevrolet G30 vans. Because this part is responsible for triggering the spark, its failure can mimic other issues, but often presents with specific symptoms. The most common signs are an engine that stalls unexpectedly or cranks but refuses to start. These problems can be intermittent at first, often happening after the engine warms up, and may leave you stranded without warning.
Common Symptoms of a Failing Ignition Pickup
- Engine Stalls Unexpectedly: The engine may shut off while driving or idling as if you turned the key.
- No-Start Condition: The engine will crank over with the starter but will not fire up because there is no spark.
- Engine Misfires or Runs Rough: You might feel the van bucking, sputtering, or shaking, especially under load.
- Hard Starting: The engine takes longer than usual to start, especially when warm.
Choosing the Right Aftermarket Ignition Pickup
For a vehicle like the 1990-1996 G30, you have several excellent aftermarket options. Original Equipment (OEM) parts are often unavailable or prohibitively expensive. High-quality aftermarket brands offer a reliable and affordable solution.
The key is choosing a reputable brand. While the pickup coil itself is a relatively simple part, the labor to replace it is involved, so you don't want to do the job twice.
- Tier 1 (OEM Equivalent): Brands like ACDelco and Delphi are top choices. Delphi was an original parts manufacturer for GM, and ACDelco is GM's own parts brand. Choosing either of these is as close to original quality as you can get and is highly recommended for reliability.
- Tier 2 (Quality Aftermarket): Standard Ignition (SMP) is a well-respected brand that produces reliable ignition components. Their parts are a dependable alternative to OEM brands and often come with a strong warranty.
Pro Tip: Given the labor involved in replacing the pickup coil, it is wise to also replace the ignition control module, distributor cap, and rotor at the same time, especially if they are old. These parts are located in the same area and are exposed to the same heat and wear.
Distributor Ignition Pickup Replacement Cost
The cost to replace the distributor ignition pickup involves the part itself and significant labor, as the distributor must be removed from the engine 🎬 See a step-by-step walkthrough of the distributor removal process. and disassembled.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $28.95 - $41.40 |
| Shop Labor | $140 - $250 |
| Total Estimated Cost | $168.95 - $291.40 |
Frequently Asked Questions
Can I test my old ignition pickup? 🎬 Watch this guide on how to diagnose a pickup coil.
Yes, you can test the pickup coil with a multimeter. You would test for resistance (ohms) between the two connector leads. A typical reading for a good GM pickup coil is between 500 and 1500 ohms. You should also check for a short to ground by testing for resistance between each lead and the distributor body; the reading should be infinite (open circuit). However, a coil can sometimes test good when cold but still fail when it gets hot.
Do I have to remove the distributor to replace the pickup coil?
Yes, on the 1990-1996 Chevrolet G30, the distributor must be removed from the engine to replace the ignition pickup. The distributor shaft must be taken out to access the pickup coil, which is secured inside the distributor housing.
Are there any recalls for the ignition system on my G30?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no specific recalls for the distributor, ignition pickup, or ignition module on the 1990-1996 Chevrolet G30. The well-known GM ignition switch recalls from the 2010s affected much newer vehicles and were for a different part.
Do I need special tools for this job?
You will need basic hand tools, a timing light, a distributor wrench (in some cases), and a small punch to remove the roll pin from the distributor gear. 🎬 Learn how to properly install a new GM distributor pickup. Because the distributor is removed, you will need to set the ignition timing after reinstallation, which is why a timing light is essential.
Helpful Videos
Technical Specifications

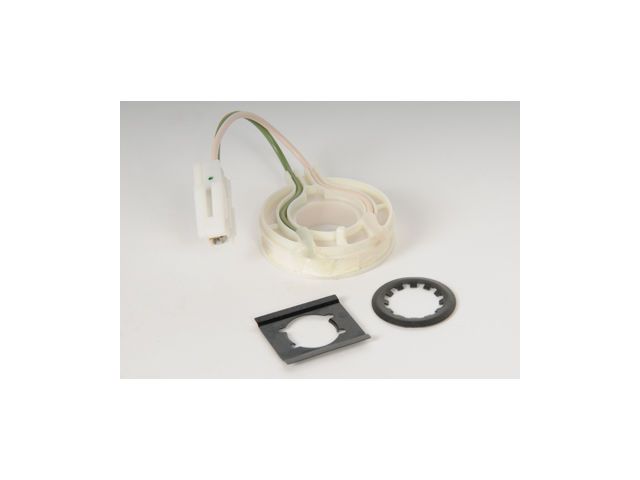

Functions as a magnetic pulse generator inside the distributor. Resistance typically measures between 500-1500 Ohms.
