Ignition Coil Replacement and Diagnosis for 1990-1996 Dodge Caravan
Solving misfires, rough idling, and no-start problems in your Caravan often points to a failing ignition coil.
- First, confirm your engine size (2.4L, 2.5L, 3.0L, 3.3L, or 3.8L) to determine if you need a single coil or a coil pack.
- Stick with reputable aftermarket brands like Delphi, NGK, Bosch, or Standard Motor Products for better reliability.
- Always replace spark plugs and spark plug wires at the same time as the ignition coil to ensure a complete repair.
- A misfire isn't always the coil; a bad crankshaft position sensor can cause similar no-spark issues.
Is It a Coil Pack or a Single Coil? Don't Order the Wrong Part.
Before you buy, you must know which ignition system your 1990-1996 Dodge Caravan has. This is the most common ordering mistake. The part you need depends on the engine inside your van.

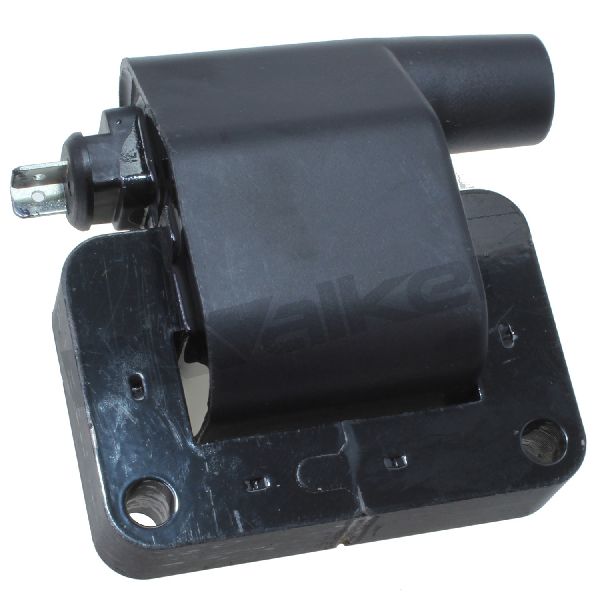

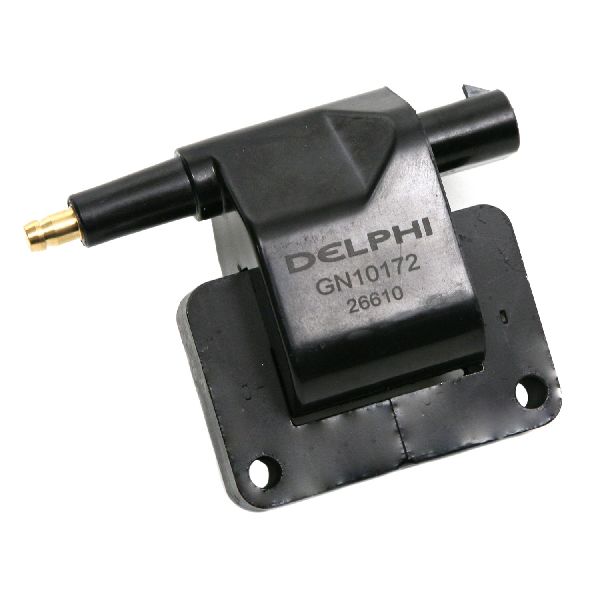

- Single Canister Coil: If you have the 2.5L 4-cylinder or the 3.0L V6 engine, your van uses a single, round, canister-shaped ignition coil. This coil works with a distributor and ignition wires to send spark to each cylinder.
- Ignition Coil Pack: If you have the 2.4L 4-cylinder, 3.3L V6, or 3.8L V6 engine, your van uses a rectangular ignition coil pack. This is a distributorless system where the pack contains multiple coils that fire pairs of cylinders directly through the spark plug wires.
Pro Tip: The easiest way to be sure is to open your hood and look. The coil pack is a black or grey rectangular block with spark plug wires coming out of it, usually mounted right on top of the engine or on a bracket nearby. The single coil is smaller, cylindrical, and typically mounted on the side of the engine bay.
Symptoms of a Failing Ignition Coil
When an ignition coil starts to fail, the signs are usually obvious because they directly affect how the engine runs. You may experience one or more of the following issues:
- Engine Misfires: The engine may stumble, shake, or jerk, especially when you accelerate. This feels like the engine is losing power for a moment.
- Rough Idle: When stopped, the engine may run unevenly and vibrate more than usual. In severe cases, it can cause the engine to stall.
- Check Engine Light: A failing coil will often trigger the Check Engine Light. For 1996 models (which are OBD-II), you may get codes like P0300 (random misfire) or P0301-P0306, which point to a specific cylinder.
- Hard Starting or No Spark: The engine may crank but struggle to start, or it may not start at all if the coil has completely failed.
- Reduced Power and Fuel Economy: Your van may feel sluggish and you'll notice you're filling up the gas tank more often.
- Gas Smell or Backfiring: A weak or non-existent spark can allow unburned fuel to pass into the exhaust, which can cause a popping sound (backfire) or a raw fuel smell.
Choosing the Right Aftermarket Ignition Coil
For a vehicle of this age, a quality aftermarket part is the most practical choice. However, not all aftermarket brands are created equal, especially for critical electrical components. Based on owner feedback and mechanic recommendations, it's best to avoid the cheapest, no-name options, which are known to fail prematurely.
Brand Quality Tiers
- Premium Brands (Recommended): These brands are often Original Equipment (OE) suppliers for many car manufacturers and have a strong reputation for reliability and longevity. Investing a little more here can save you from doing the job twice.
- Bosch
- Delphi
- NGK
- Standard Motor Products (SMP)
- Standard / Value Brands: These brands offer a functional replacement at a lower cost. They can be a good option for a budget-conscious repair, but may not match the durability of premium brands.
- Spectra
- Walker Products
- Crown Automotive
- Karlyn STI
- Prenco
| Coil Type | Price Range |
|---|---|
| Value / Economy Brands | $15 - $45 |
| Premium Brands (Delphi, NGK, Bosch, etc.) | $50 - $136 |
Note: Prices are for the part only and do not include labor. The higher end of the price range often includes performance brands like MSD or complete kits.
Frequently Asked Questions (FAQ)
My engine is misfiring. Is it definitely the ignition coil?
Not always. While the ignition coil is a common cause, other parts can create the same symptoms. On these Caravans, a faulty crankshaft position sensor is another frequent culprit for a no-spark condition. Bad spark plugs, worn spark plug wires, or even a problem with the engine computer (PCM) driver circuit can also cause misfires. It's best to diagnose the problem properly before replacing parts.
Should I replace the spark plugs and wires at the same time?
Yes, it is highly recommended. Old spark plugs and wires can put extra strain on a new ignition coil, causing it to fail prematurely. Since they are all part of the same system and are relatively inexpensive, replacing them all at once is smart preventative maintenance.
Were there any recalls on the ignition coil for my Caravan?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls specifically for the ignition coil on 1990-1996 Dodge Caravan models. Later model year Caravans had recalls for the ignition *switch*, which could cause the engine to shut off, but this is a different part and does not apply to this generation.
How difficult is it to replace the ignition coil myself?
This is a very DIY-friendly job. For both the single coil and the coil pack, the part is usually held on by two or three easily accessible bolts. The process involves disconnecting the battery, unplugging one electrical connector, removing the spark plug wires from the coil, unbolting the old coil, and installing the new one. Basic hand tools are all that's required.
Technical Specifications
OEM Part Numbers: 4609140 52525673 4443971 MD104696
Varies by engine. Systems include a single canister-style coil with an external distributor or a single distributorless ignition system (DIS) coil pack.
