GMC G3500 Vehicle Speed Sensor Guide for 1990-1996 Models
Fix your van's bouncing speedometer and harsh transmission shifting by understanding the Vehicle Speed Sensor.
- A faulty VSS is a very common cause of erratic speedometer readings and harsh shifting on 1990-1996 G3500s.
- Replacement is an easy DIY job, typically taking less than an hour with basic tools.
- Before replacing the sensor, always inspect the wiring and connector for damage, as this can cause the same symptoms.
- High-quality aftermarket brands like Standard Ignition or Dorman offer a reliable and cost-effective alternative to OEM parts for this vehicle.
Is a Failing Speed Sensor Causing Your G3500's Problems?
When the Vehicle Speed Sensor (VSS) on a 1990-1996 GMC G3500 starts to go bad, it can cause some very noticeable and frustrating issues. Because the sensor's data is used by multiple systems, a single faulty sensor can make it seem like you have several major problems at once. The most common signs are related to the speedometer and the automatic transmission's behavior.
Choosing the Right Aftermarket VSS
For an older workhorse like the 1990-1996 G3500, you don't need to pay high dealer prices for an OEM sensor. Aftermarket parts offer a reliable and affordable solution. However, quality can vary between brands. Here’s a breakdown of your options:
- Professional-Grade (Higher Tier): Brands like Standard Ignition (SMP) and Delphi are well-regarded in the industry. They often manufacture parts for original equipment suppliers and have a reputation for quality control and durability, making them a solid choice for a critical part like a VSS.
- Standard-Grade (Mid Tier): Brands like Dorman, Holstein, and Walker Products offer a good balance of price and quality. They are popular choices for DIY repairs and general use. Dorman is known for making a wide range of replacement parts that often include design improvements over the original. Holstein emphasizes using high-quality materials and offers a good warranty.
- Economy-Grade (Value Tier): Brands like True Tech fall into the value category. They are the most affordable option, which can be helpful for budget-conscious repairs, but may not have the same long-term durability or stringent quality control as higher-tier brands.
Pro Tip: Check the Connector First!
Before you buy a new sensor, take a close look at the wiring and the plastic connector that plugs into it. On these older vans, the wiring can become corroded or the plastic connector can get brittle and break. A bad connection can cause the exact same symptoms as a failed sensor. If the connector is the problem, it's a much cheaper fix.
Estimated Costs for VSS Replacement
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket VSS | $20 - $51 |
| Shop Labor | $50 - $100 |
| Total (DIY) | $20 - $51 |
| Total (Installed at Shop) | $70 - $151 |
Frequently Asked Questions (FAQ)
Where is the speed sensor located on my 1990-1996 G3500?
The Vehicle Speed Sensor (VSS) is typically found on the driver's side of the transmission, screwed into the tail-shaft housing. It's a small, cylindrical sensor with an electrical connector. It is usually held in place by a single bolt.
Can I replace the speed sensor myself?
Yes, this is a great job for a DIYer. The replacement is straightforward and requires basic hand tools. You'll need to safely raise the vehicle, locate the sensor on the transmission, disconnect the electrical plug, remove one bolt, and then pull or unthread the old sensor. The whole job can usually be done in under an hour.
What happens if I don't replace a bad VSS?
While you can still drive the van, it's not recommended for long. You'll have to deal with an unreliable speedometer and harsh, unpredictable shifting. This erratic shifting can cause premature wear and tear on your transmission, potentially leading to much more expensive repairs down the road.
Will a bad speed sensor always trigger a Check Engine Light?
Not always. A sensor that has failed completely will usually trigger a Check Engine Light and store a fault code. However, if the sensor is failing intermittently or sending erratic signals, you might experience shifting problems or a bouncing speedometer without any warning light on the dash, which can make it tricky to diagnose.
Are there any recalls for the G3500 speed sensor?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any specific recalls for the vehicle speed sensor on the 1990-1996 GMC G3500. There are recalls for newer GM vehicles related to wheel speed sensors, but these do not apply to this specific part or vehicle generation.
Technical Specifications
OEM Part Numbers: 15547452 89054099 2132361

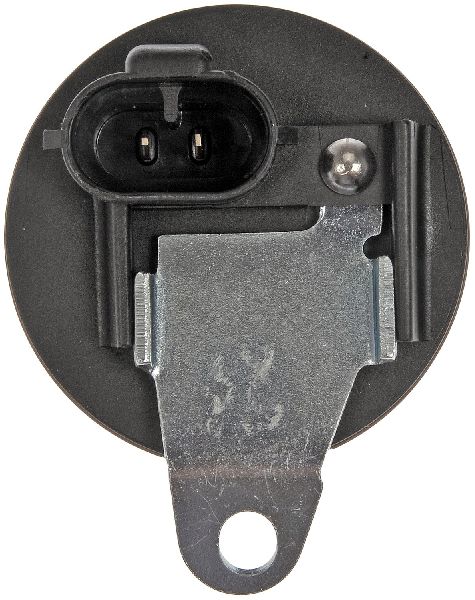

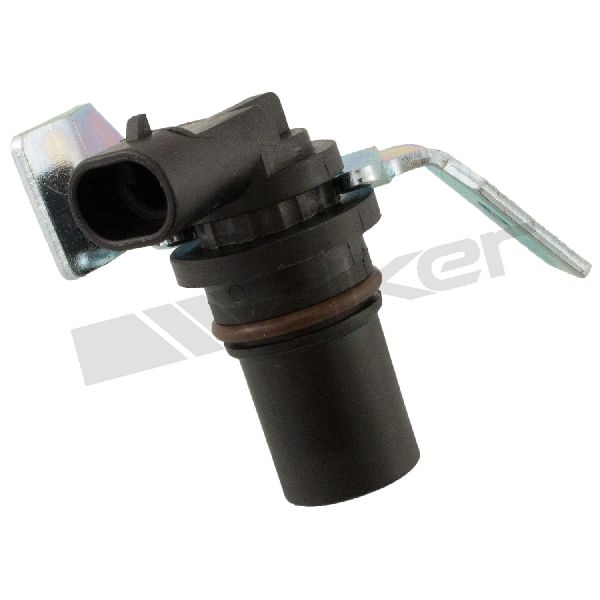

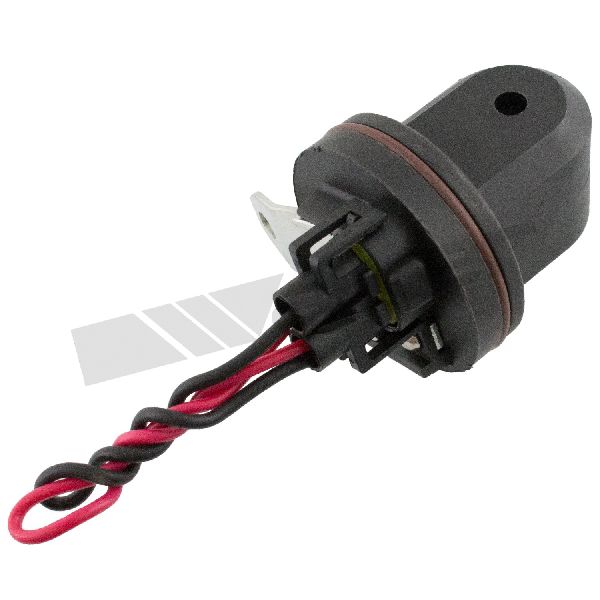

Typically a 2-pin, gear-driven or magnetic sensor that mounts to the transmission tail-shaft housing. The connector is usually a plug-in type held by a single bolt.
