Engine Oil Pan for the 1990-1997 Buick Regal: A Complete Guide
Leaking oil doesn't always mean a huge repair bill—here's what to know about your Regal's oil pan.
- The oil pan gasket is the most common source of leaks, but it's wise to replace the pan and gasket together due to high labor costs.
- For 3.8L V6 engines, confirm the leak isn't from the valve cover gaskets, which were subject to a safety recall for fire risk.
- Replacement is a difficult job that may require lifting the engine for clearance, making it a poor choice for a beginner DIY project.
- Aftermarket brands like Dorman, Spectra, and ATP are all viable options for a replacement pan.
Is Your Buick Regal Leaking Oil?
If you see oil spots on your driveway, the oil pan is a likely suspect. On a 1990-1997 Buick Regal, the most common reason for a leak isn't the metal pan itself, but the gasket that seals it to the engine block. Over years of heating and cooling, this gasket can become hard and brittle, allowing oil to seep out. The steel pan itself can also rust through over time, especially in areas where roads are salted in the winter. Finally, impact from road debris or bottoming out on a curb can dent or crack the pan, causing a leak.
Important Note on 3.8L V6 Engine Oil Leaks
Many 1997 Regals with the 3.8L V6 engine were part of a major safety recall. The valve cover gaskets could leak oil onto the hot exhaust manifold, creating a serious fire risk. If you have an oil leak, it's critical to identify the source. A leak from high up on the engine that drips down could be from the valve covers, not the oil pan.

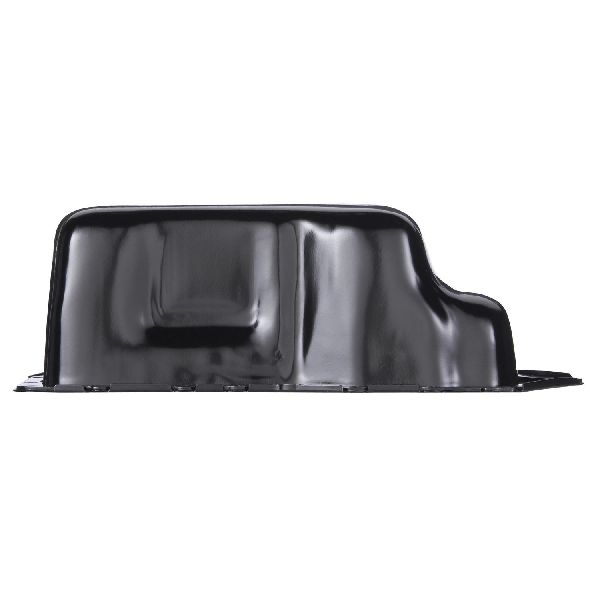

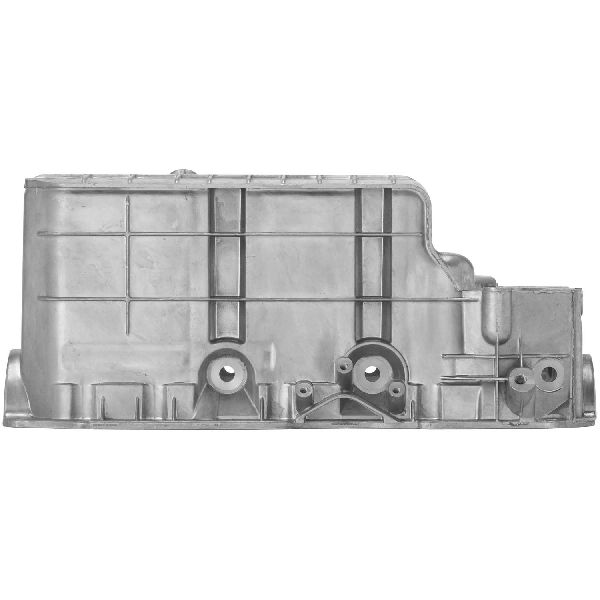

Choosing the Right Aftermarket Oil Pan
Since these Regals are older, finding a brand-new OEM (Original Equipment Manufacturer) oil pan from GM is unlikely. The aftermarket is your best bet. Aftermarket parts are made by companies other than the original car manufacturer. Here’s a look at some common brands.
- Tier 1 - Good Quality: Brands like ATP and Spectra often have a good reputation. Some mechanics report that ATP pans can be made from thicker, more corrosion-resistant steel than the original part. Spectra is well-known for making quality fuel tanks and cooling parts, and their oil pans are generally considered reliable.
- Tier 2 - Standard Replacement: Dorman is one of the most common aftermarket brands. Their quality is generally seen as perfectly acceptable for a daily driver. They offer a wide range of parts and are a standard choice for many repair shops. In some cases, Dorman and Spectra pans may even be identical parts from the same factory.
- Tier 3 - Other Brands: Pioneer Cable is a known brand, but as the name suggests, they are more focused on parts like shifter and throttle cables. While they may offer oil pans, there is less feedback available on their quality compared to the other brands.
Pro Tip: When buying your new oil pan, also buy a high-quality oil pan gasket from a brand like Fel-Pro. The gasket is the most common failure point, so don't reuse the old one. Also, make sure your new pan comes with a new drain plug and washer.
How Much Does an Oil Pan Replacement Cost?
Replacing the oil pan on a 1990-1997 Buick Regal can be more labor-intensive than you might think. Because of the way the engine and subframe are designed, a mechanic may need to unbolt motor mounts and lift the engine slightly to get the old pan out and the new one in. This adds to the labor time and cost.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Oil Pan | $103 - $234 |
| Shop Labor | $400 - $700+ |
| Total Estimated Cost | $503 - $934+ |
Cost estimates are for reference only and will vary based on your location, the specific shop, and your vehicle's engine (3.1L V6 vs 3.8L V6). Data based on provided inventory prices and search results.
Frequently Asked Questions (FAQ)
Can I replace the oil pan myself?
This is a challenging job for a beginner. It requires safely lifting and supporting the vehicle, draining the oil, and potentially lifting the engine to gain clearance. If you are an experienced DIY mechanic with the right tools, it is possible. For most people, it's a job best left to a professional mechanic.
Is it just the gasket or the whole pan?
Most leaks are from a failed gasket. However, if your pan is visibly rusted, dented, or has stripped drain plug threads, you should replace the entire pan. Since the labor is the most expensive part of the job, it's often wise to replace the pan and gasket at the same time to avoid doing the job twice.
What happens if I don't fix a leaking oil pan?
A small leak is a minor issue, but it will not get better on its own. If the leak becomes severe, your engine can run low on oil, leading to poor lubrication, overheating, and catastrophic engine failure. This can be a very expensive repair, far more than the cost of replacing the oil pan.
My oil leak is from higher up on the engine. What could it be?
On the 3.8L V6 engine, a common source for oil leaks is the valve cover gaskets. Oil leaks from the valve covers, which are at the top of the engine, can run down the side of the engine block and look like a leak from the oil pan. Always clean the engine and carefully trace the leak to its highest point before buying parts.
Technical Specifications
Material: Stamped Steel. Gasket Type: Typically one-piece rubber or cork/rubber composite. Engine Fitment: 3.1L V6, 3.8L V6 (naturally aspirated and supercharged models may use different pans).
