Engine Timing Sets for the 1990-1997 Ford E-250 Econoline
Keep your workhorse van running strong by understanding its specific timing set needs, whether you have the inline-six or a V8.
- First, identify your engine. The 4.9L inline-six uses timing gears, while the V8 engines use a timing chain.
- For the 4.9L engine, always upgrade from the original fiber gear to a steel aftermarket gear set for long-term reliability.
- For V8 engines, a rattling noise on startup is a serious warning sign that the timing chain guides are failing.
- Replacing the water pump at the same time is highly recommended, as it must be removed to access the timing components.
Is Your Econoline's Engine Making Noise?
A failing timing set gives clear warning signs. For V8 engines, a rattling sound on startup is a classic symptom of a loose timing chain. For the 4.9L inline-six, you might hear a dull knocking or grinding sound as the teeth on the factory fiber gear begin to strip. In either case, ignoring these sounds can lead to your van leaving you stranded.
Gears vs. Chains: A Critical Difference for E-250 Owners
Before buying a timing set, you must know which engine is in your van. The 1990-1997 E-250 used different engine types, and they do not use the same parts.
- 4.9L (300ci) Inline-Six: These engines use a timing gear set. From the factory, the camshaft gear was made of a phenolic fiber material to keep the engine quiet. This fiber gear is a known failure point; the teeth can shear off, causing the engine to stop running instantly.

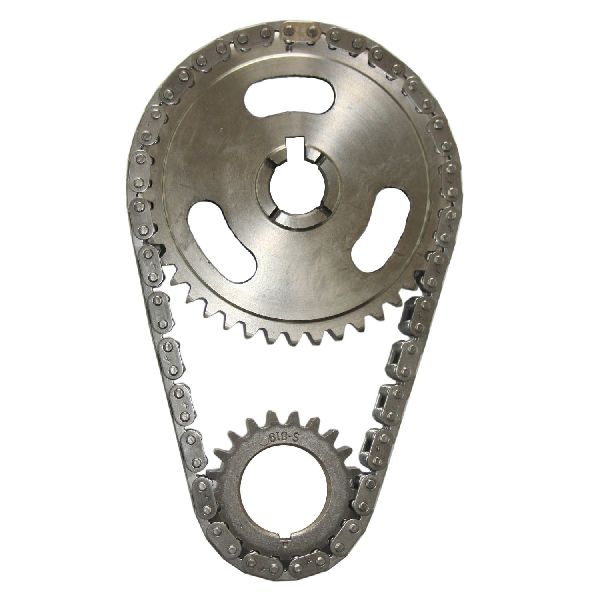

- 5.0L (302ci), 5.8L (351ci), and 7.5L (460ci) V8s: These engines use a timing chain and sprocket set. Over many miles, the chain can stretch, causing sloppy timing, poor performance, and eventually, it can jump a tooth.
Pro Tip: Check Your Engine
Look for the Vehicle Emission Control Information (VECI) sticker under the hood or on the radiator support. It will list your van's engine size in liters (e.g., 4.9L, 5.8L). This is the most important step before you order parts.
Choosing the Right Aftermarket Timing Set
For a vehicle of this age, aftermarket parts are not only more available but can also be a significant upgrade over the original factory parts.
Brand Quality Tiers
For the 4.9L Inline-Six Engine (Gears):
- Upgrade (Recommended): Melling and Cloyes both offer replacement gear sets with a steel camshaft gear. This is a highly recommended upgrade over the original fiber gear for durability, though it may produce slightly more engine noise.
- Economy: Budget brands are available, but given the importance of this part and the labor to replace it, choosing a reputable brand like Melling or Cloyes is a smart investment.
For the V8 Engines (Chains):
- Performance/Heavy-Duty (Ford Performance, Edelbrock, Melling Select Performance): These kits often feature double-roller chains and billet steel sprockets. They offer increased strength and more precise timing with multiple keyways for adjustments. This is a great choice for vans that are heavily loaded or used for towing.
- OE-Quality (Cloyes, Melling, INA): These are the workhorses of the aftermarket. They provide reliable, stock-level performance and are an excellent choice for a daily driver or light-duty work van. Both Cloyes and Melling are long-standing, reputable brands for timing components.
- Economy (Skyward): These kits meet basic requirements and are the most budget-friendly. They are suitable for getting a vehicle back on the road, but may not have the same long-term durability as premium or OE-quality brands.
OEM vs. Aftermarket Quality
For these vans, new OEM parts from Ford are becoming scarce or discontinued. Aftermarket manufacturers like Melling and Cloyes have been making these parts for decades and often offer improved designs. For the 4.9L, an aftermarket steel gear is a clear upgrade. For the V8s, a double-roller chain from a performance brand is stronger than the original silent-type chain.
Known Issues, Recalls, and Bulletins
No specific recalls or Technical Service Bulletins (TSBs) from Ford were issued for timing set failures on these vans during this period. However, the failure of the 4.9L's fiber timing gear is a widely known issue among mechanics and enthusiasts. The replacement process involves removing many components from the front of the engine, including the radiator and water pump.
| Part Type | Typical Cost |
|---|---|
| Aftermarket 4.9L Gear Set | $40 - $80 |
| Aftermarket V8 Chain Set (Standard) | $45 - $100 |
| Aftermarket V8 Chain Set (Heavy-Duty/Performance) | $100 - $325+ |
Frequently Asked Questions (FAQ)
Should I replace my water pump at the same time?
Yes. Replacing the timing set requires removing the water pump on both the I6 and V8 engines. Since you already have it off, it is highly recommended to install a new water pump to save on future labor costs.
Are special tools needed for this job?
Yes. You will likely need a harmonic balancer puller and a fan clutch wrench set. For the 4.9L gear set, you may also need a gear puller. Some of these tools can be rented from auto parts stores.
What is the difference between a single-roller and double-roller timing chain?
A double-roller chain is physically stronger and more durable than a standard single-roller or silent-type chain. For heavy-duty use in a work van, a double-roller chain is a worthwhile upgrade if your budget allows.
My 4.9L engine just stopped working. Could it be the timing gears?
It's a strong possibility. A common test is to remove the distributor cap and have a helper crank the engine. If the crankshaft pulley is turning but the distributor rotor is not, the timing gears have likely failed.
Technical Specifications
OEM Part Numbers: F6TZ-6268-AA E7TZ-6268-A C8SZ-6268-A
Component type is engine-dependent. The 4.9L I6 engine uses a gear-and-gear set. The 5.0L, 5.8L, and 7.5L V8 engines use a chain-and-sprocket set.
