Guide to the 1990-1998 Chevrolet Camaro Engine Oil Pressure Switch
Understanding the oil pressure switch in your fourth-generation Camaro is key to engine health and avoiding misdiagnosis.
- The switch can affect fuel pump operation; a failure can cause stalling or no-start issues.
- Location varies by engine; 1994-1998 V8 models are very difficult to access, increasing labor costs.
- A fluctuating gauge or warning light is a common symptom, but always check your oil level first.
- For hard-to-reach sensors, using a quality aftermarket brand like Standard Ignition is recommended to avoid repeat repairs.
Understanding the Oil Pressure Switch in Your Camaro
The engine oil pressure switch, often called a sender or sensor, is a small but vital component. Its primary job is to monitor the oil pressure inside your engine. For Camaros with a gauge, it sends a variable signal to show the exact pressure. For cars with just a warning light, it acts as a simple on/off switch. A critical and often overlooked function on these GM vehicles is its role as a backup for the fuel pump circuit, which can make diagnosing electrical or fuel-related problems tricky if you don't know about it.
Symptoms of a Failing Oil Pressure Switch
A bad oil pressure switch can cause symptoms that might make you think you have a major engine problem. The most common signs include:
🎬 Watch: A breakdown of symptoms caused by a bad sensor.- Fluctuating or Incorrect Gauge Reading: The needle on your oil pressure gauge may bounce around, read zero, or be pegged at maximum.
- Oil Pressure Light On or Flickering: A common symptom is the oil pressure warning light illuminating on the dash.
- Oil Leaks: The switch itself can fail, leaking oil. This is a common failure point, especially on older vehicles. You might smell burning oil if it drips onto hot engine parts.
- Engine Starting Problems or Stalling: Because the switch is tied to the fuel pump circuit, a complete failure can sometimes prevent the fuel pump from getting power, leading to a no-start condition or stalling.
Important Warning
Never ignore a low oil pressure warning. While it could be a faulty sensor, it could also indicate a serious lack of oil or a failing oil pump, which can destroy your engine in minutes. Always check your oil level first.
Choosing the Right Aftermarket Part
For a 1990-1998 Camaro, you don't necessarily need to buy an expensive OEM part. Several quality aftermarket brands offer reliable replacements at a lower cost. Here’s a breakdown of the available options:
- Standard Ignition (Standard Motor Products): Generally considered a top-tier aftermarket brand. They have a long history of producing quality electronic components that meet or exceed OE specifications. Many professional mechanics trust and use their parts.
- Rostra Powertrain: Rostra is a well-established manufacturer, IATF-16949 certified, and known for making OE and aftermarket transmission and electronic components. They are a solid mid-range choice that offers a good balance of quality and price.
- Global Parts: This is typically a budget-friendly or private-label brand. While it can save you money, the quality and longevity may not match that of more established brands. It's an option if the budget is the primary concern, but for a part that is difficult to access on some engines, spending a little more for a premium brand might be wise.
Pro-Tip: Location Matters
The location of the oil pressure switch varies by engine and year, which dramatically affects replacement difficulty. On 1993 LT1 engines, it's conveniently located above the oil filter. However, on 1994-1997 LT1 and 1998 LS1 engines, 🎬 See this walkthrough for replacing the sensor on LT1 engines. it's notoriously difficult to reach, tucked away behind the intake manifold at the back of the engine block. For these models, many owners choose to install a relocation kit to make future replacements easier.
Cost to Replace a 1990-1998 Camaro Oil Pressure Switch
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $8 - $83 |
| Shop Labor | $50 - $250 |
| Total Estimated Cost | $58 - $333 |
Note: Labor costs vary significantly based on the engine. The higher end of the range reflects the difficult replacement on 1994-1998 V8 models.
Frequently Asked Questions
Where is the oil pressure switch on my Camaro?

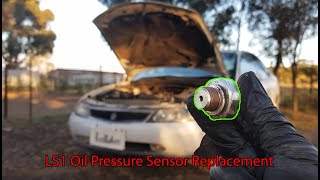

It depends on your engine. For 1993 LT1 V8s, it's on the driver's side of the block, near the oil filter. For 1994-1997 LT1 V8s and 1998 LS1 V8s, it is at the very back of the engine, behind the intake manifold, 🎬 Watch: Step-by-step guide for the difficult LS1 sensor replacement. which is a very tight space. On V6 models, it is typically located on the side of the engine block, near the oil filter housing.
Can I replace the oil pressure switch myself?
For models where the switch is easily accessible (like the 1993 LT1), it is a very simple DIY job that requires a special socket. For 1994-1998 V8 models, it is a much more difficult and frustrating job due to the location. While it can be done by a patient DIYer with the right tools (deep socket, extensions, universal joint), many people choose to have a shop do it.
What's the difference between a switch, a sender, and a sensor?
The terms are often used interchangeably. Technically, a "switch" is for a simple on/off warning light. A "sender" or "sensor" provides a variable resistance signal for a gauge. For your Camaro, you need to buy the part that corresponds to your car's equipment (gauge or light), but most parts catalogs will list them under all three names.
Is an expensive switch really better?
For this part, paying a little more for a trusted brand like Standard Ignition is often worth it, especially if your sensor is in the hard-to-reach location. A premature failure of a budget part could mean re-doing a very difficult job. The cost difference is small compared to the labor involved.
Are there any recalls for the oil pressure switch?
No, there are no specific NHTSA recalls for the oil pressure switch on 1990-1998 Chevrolet Camaros. Any issues are addressed through individual repairs.
Helpful Videos
Technical Specifications
OEM Part Numbers: 19244504 12555492 10045775
Varies by engine and year. Can be a 1, 2, or 3-terminal switch/sender. The 1998 LS1 uses a unique 2-wire sensor. Thread size is typically 1/8" NPT or 1/4" NPT depending on location.
