Essential Guide to the 1990-1999 Mitsubishi Eclipse Timing Belt & Water Pump
Protect your 4G63 engine from catastrophic failure by understanding this critical service.
- The 4G63 engine is an interference engine; a failed timing belt will cause catastrophic damage.
- The replacement interval is strictly 60,000 miles or ~5 years, whichever comes first.
- Always use a complete kit including the belt, water pump, hydraulic tensioner, and pulleys.
- Verify you have the 4G63 engine, as some base models used a different Chrysler 420A engine.
Is Your Eclipse's Engine at Risk?
For owners of a 1990-1999 Mitsubishi Eclipse with the 4G63 or 4G63T engine, the timing belt service is not something to postpone. Because it is an interference engine, a snapped timing belt doesn't just leave you stranded; it often means a complete engine rebuild or replacement. The recommended service interval is every 60,000 miles or about 5-6 years, whichever comes first. Age can make the rubber belt brittle, even if the mileage is low.
Confirm Your Engine Before Ordering
This guide is for the Mitsubishi 4G63 and 4G63T engines found in most GS, GST, and GSX models. Some non-turbo 2nd Generation (1995-1999) Eclipse RS and Talon ESi models were equipped with a Chrysler-built 420A engine. The 420A uses different timing components. Always verify your engine type before purchasing parts.
Symptoms of a Failing Timing Belt or Water Pump
While a timing belt can fail without any warning, the components in the system often give clues that service is due.
- Coolant Leaks: Puddles of green or pink coolant under the front of your engine are a classic sign of a failing water pump. Look for drips or white/colored crusty residue around the pump and timing cover area.
- Overheating: If your temperature gauge is climbing into the red, the water pump may not be circulating coolant effectively. This could be due to a worn impeller or a leak.
- Ticking or Rattling Noises: A rattling or ticking sound from the timing belt area, especially at idle, often points to a failing hydraulic tensioner or a bad pulley bearing. This is a serious warning sign that the belt could lose tension and skip time.
- Squealing or Grinding Sounds: A high-pitched squeal or a rough grinding noise from the front of the engine can indicate a failing water pump bearing or idler pulley.
- Rough Idle or Misfires: If the timing belt has stretched or slipped a tooth due to a weak tensioner, the engine's timing will be off. This can cause poor performance, rough running, and check engine lights.
Choosing the Right Aftermarket Kit
The labor involved in this job is significant, so it's critical to use a complete, high-quality kit. Replacing just the belt is a recipe for disaster, as an old tensioner or water pump can fail and take out your new belt. All kits should include the timing belt, a water pump with a gasket, a hydraulic tensioner, and idler/tensioner pulleys.
Brand Quality Tiers

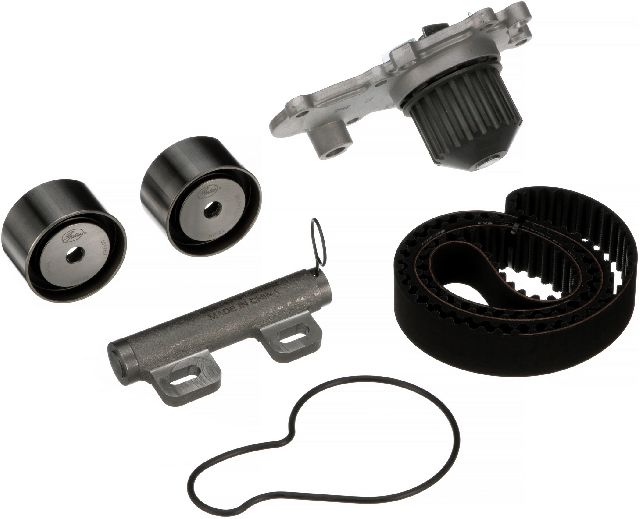

- Premium OEM-Equivalent (Continental, Gates): These brands are well-regarded in the DSM community and are known to be OEM suppliers for many manufacturers. Gates is a very popular choice for the 4G63, and their kits are widely trusted. Both Continental and Gates provide high-quality belts and components designed to meet or exceed factory specifications. For an engine this sensitive, spending a little more for a premium kit provides critical peace of mind.

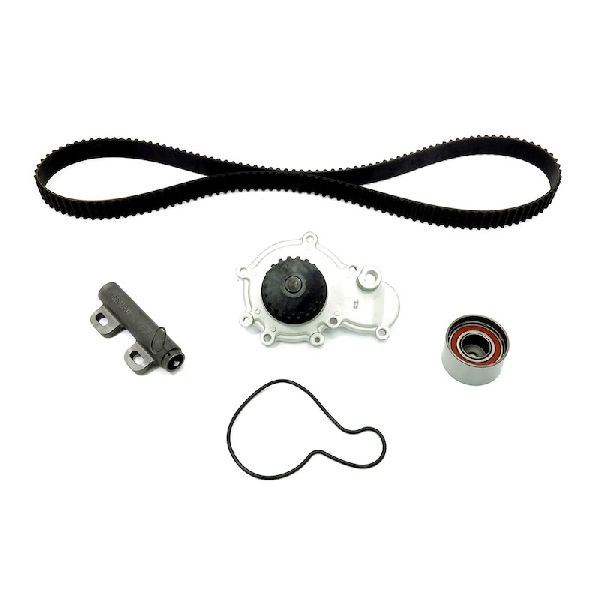

- Standard/Budget (US Motor Works): While more affordable, brands like US Motor Works are generally considered a lower tier. Forum discussions contain reports of premature leaks or failures from budget-brand water pumps. Given the catastrophic consequences of a failure on this engine, a budget kit is a significant gamble that could cost you much more in the long run.
The Balance Shaft Belt: A Known 4G63 Weak Point

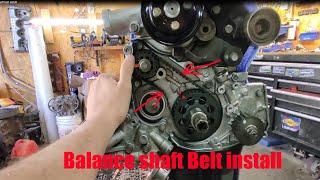

The 4G63 engine has a second, smaller timing belt called a balance shaft belt. A common and well-documented failure is this smaller belt breaking, getting tangled in the main timing belt, and causing it to fail. Your timing belt kit should include this belt. Ensure it is replaced and tensioned correctly. Many enthusiasts opt for a 'balance shaft delete kit' to eliminate this potential failure point entirely.
Replacement Costs
The cost to replace a timing belt kit varies by location and shop, but the labor is the most expensive part.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Kit (Premium) | $233 - $317 |
| Shop Labor (4-6 hours) | $500 - $900 |
| Total Professional Job | $733 - $1,217 |
Costs are estimates and can vary. Labor rates are based on a general $125-$150/hour rate.
Frequently Asked Questions (FAQ)
Is the 1990-1999 Eclipse 4G63 engine an interference engine?
Yes, absolutely. The 2.0L 4G63 and 4G63T engines are interference designs. If the timing belt breaks or slips, the pistons will hit the valves, causing catastrophic and very expensive engine damage. This is why replacing the belt on time is not optional.
When do I absolutely need to replace my timing belt kit?
The service interval is 60,000 miles or about every 5-6 years, whichever comes first. Do not ignore this interval. If you have just purchased a used Eclipse and do not have proof of the last timing belt service, you should plan to replace it immediately, regardless of mileage.
What else should I replace during the timing belt job?
A complete timing belt kit is essential. This must include the belt, water pump, hydraulic tensioner, and all idler and tensioner pulleys. You should also replace the balance shaft belt and its tensioner. While you're in there, it is wise to inspect and replace the accessory drive belts (alternator, power steering) if they show signs of cracking or wear.
Can I do this job myself (DIY)?
This is an advanced, labor-intensive job. While it is possible for a skilled home mechanic with the right tools, it is not recommended for beginners. Setting the timing correctly, and especially tensioning the hydraulic tensioner and balance shaft belt, requires precision. An error during installation can destroy the engine just as quickly as a broken belt.
Helpful Videos
Technical Specifications
Engine Application: Mitsubishi 4G63 & 4G63T (2.0L DOHC Non-Turbo and Turbo). Service Interval: 60,000 Miles. Belt Type: Toothed, Interference Engine Application. Kit must include: Timing Belt, Balance Shaft Belt, Water Pump, Hydraulic Tensioner, Idler Pulley, Tensioner Pulley.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
