Cadillac DeVille Fuel Pressure Regulator Guide for 1990-2000 Models
Solve your DeVille's rough running, hard starts, and fuel smells by understanding and replacing its fuel pressure regulator.
- The most definitive test for a bad regulator is checking for raw fuel in the vacuum hose.
- For 1995-1997 models, check if the critical fuel rail safety recall (NHTSA #04V110000) has been performed.
- Symptoms like black smoke, hard starts, and a strong fuel smell point directly to a failed regulator.
- Replacing the regulator is a simple DIY job that can solve many engine performance issues.
Is Your DeVille's Fuel Pressure Regulator Failing?
A bad fuel pressure regulator can cause a range of confusing problems on your Cadillac. The most common failure is when the internal diaphragm tears. This allows raw fuel to be sucked through the vacuum hose directly into the engine, causing it to run "rich" (too much fuel, not enough air).
Quick Test: A simple and sure way to check for failure is to find the regulator on the fuel rail and pull off the small vacuum hose connected to it. If you see or smell raw gasoline in this hose, the regulator's diaphragm has failed and it must be replaced.
Common Symptoms of a Bad Regulator
- Black Smoke from Exhaust: This is a classic sign of the engine running too rich because of a failed regulator.
- Hard Starting: The engine cranks for a long time before starting, especially when it's warm.
- Poor Performance: You may notice a rough idle, hesitation when you accelerate, engine misfires, or a general lack of power.
- Strong Fuel Smell: A gasoline odor around the engine is a major warning sign. You might even smell gas on your oil dipstick, which indicates fuel is contaminating your engine oil.
- Bad Gas Mileage: An engine running rich wastes fuel, so you'll be filling up more often.
Important Safety Recall for 1995-1997 Models
Before replacing any parts, be aware of a critical safety recall (NHTSA #04V110000) for 1995-1997 Cadillac DeVille models with the 4.6L V8. The original nylon fuel rails can crack and leak fuel, creating a serious fire risk. The fix involves replacing the fuel rail with a more durable stainless steel version. Since the fuel pressure regulator attaches directly to this rail, it is vital to ensure this recall work has been performed on your vehicle. A GM dealer can check your VIN to see if the repair was completed.
Choosing the Right Aftermarket Regulator
When shopping for a replacement, you'll find a few quality tiers available.

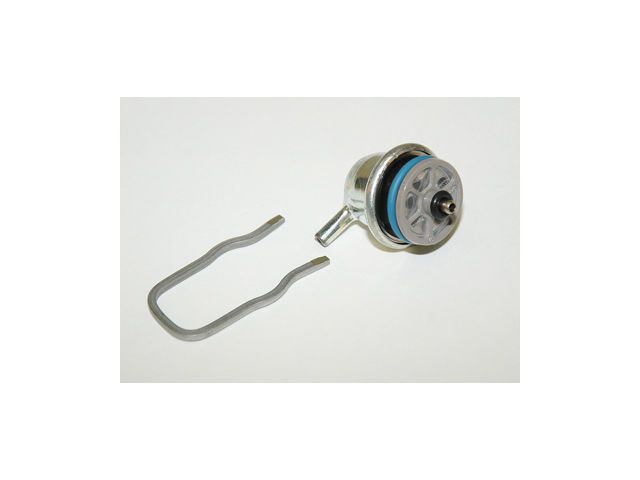

- Premium Brands (ACDelco): ACDelco is General Motors' own parts brand. While often considered the original equipment (OE) equivalent, be aware that some modern ACDelco parts are made by various global manufacturers and quality can differ from the original factory part. However, for a critical fuel system component, it remains a trusted choice for fit and function.

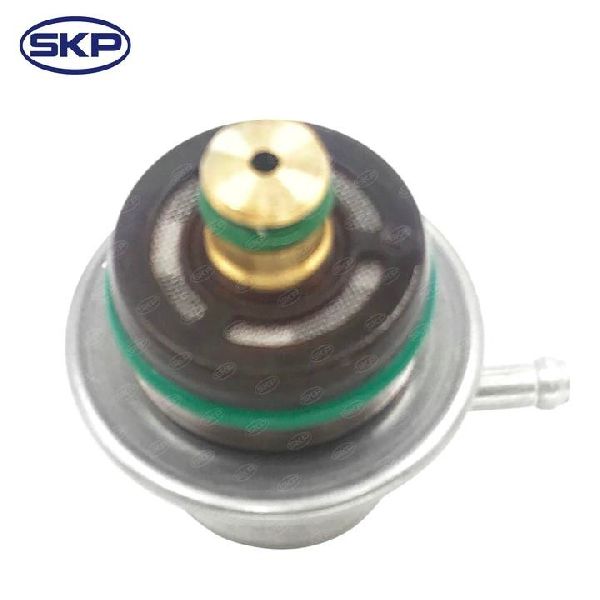

- Value Brands (Replacement, Skyward): These brands offer a more budget-friendly option. They are designed to meet the basic requirements of the vehicle and can be a good choice if cost is the primary concern. For a component as critical as a fuel pressure regulator, long-term durability might be a trade-off.
Cost of Replacing a Fuel Pressure Regulator
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $29.93 - $94.41 |
| Shop Labor | $100 - $150 |
Frequently Asked Questions
Can I replace the DeVille fuel pressure regulator myself?
Yes, this is a DIY-friendly job for someone with basic mechanical skills. The main steps are to safely relieve the fuel system pressure, disconnect the battery, remove the clip holding the old regulator, and install the new one with fresh O-rings. Always work in a well-ventilated area away from any sparks or flames.
What does it mean if there's gas in the regulator's vacuum hose?
This is a definite sign that the regulator's internal diaphragm has torn. The diaphragm is supposed to separate the fuel side from the vacuum side. When it rips, fuel gets sucked into the engine, causing a rich running condition, black smoke, and poor performance. The regulator must be replaced immediately.
My car is running rich. Could it be an O2 sensor instead?
While a bad oxygen sensor can cause a rich condition, it's wise to check the fuel pressure regulator first. A leaking regulator can trick the engine's computer and may even cause misleading O2 sensor trouble codes (like P0172). Checking the vacuum line for fuel is the quickest way to rule out or confirm the regulator is the problem.
Where is the fuel pressure regulator located?
On all 1990-2000 Cadillac DeVille models, including the 4.5L, 4.9L, and 4.6L Northstar engines, the fuel pressure regulator is a small, round, metal part mounted directly on the fuel rail in the engine bay. It will have a small vacuum hose connected to the top of it.

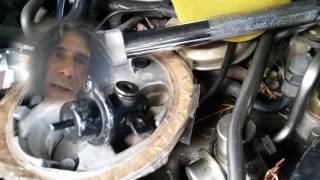

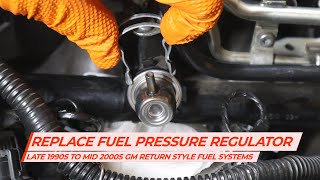

Helpful Videos
Technical Specifications
OEM Part Numbers: 19245530
Vacuum-actuated, return-style regulator mounted on the fuel rail.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
