GMC C3500 A/C Clutch Cycle Switch Guide (1990-2000)
Is your truck's A/C blowing warm or not working at all? This critical sensor could be the reason.
- A faulty A/C clutch cycle switch is a common cause of A/C failure, with symptoms identical to being low on refrigerant.
- Replacement is a simple, low-cost DIY job that usually doesn't require evacuating the A/C system.
- The switch is located on the A/C accumulator near the firewall and can be replaced in minutes with a basic wrench.
- Aftermarket brands like Four Seasons and Global Parts are considered reliable and budget-friendly choices for this specific part.
Symptoms of a Failing A/C Clutch Cycle Switch
When the A/C clutch cycle switch on your 1990-2000 GMC C3500 starts to fail, you'll notice issues with your air conditioning. Because this switch controls when the compressor runs, a bad switch can leave you with warm air and a frustrating driving experience. Here are the most common signs:
- A/C Blows Warm Air: This is the most obvious symptom. If the switch fails in the 'off' position, it will never tell the compressor to engage, so the refrigerant won't circulate to cool the air.
- Intermittent Cooling: The A/C might work sometimes but not others. A faulty switch can give erratic signals, causing the compressor to cycle on and off randomly.
- Compressor Clutch Doesn't Engage: You can often hear a 'click' from the engine bay when the A/C compressor engages. If you turn on the A/C and don't hear this click, and the center part of the compressor pulley isn't spinning, the cycle switch 🎬 Watch this video to diagnose why your compressor isn't engaging. may not be sending the signal to turn on.
- Compressor Cycles Too Rapidly: You might hear the A/C clutch clicking on and off every few seconds. This is known as short cycling and can be caused by a faulty switch or low refrigerant levels.
Is it the Switch or Low Refrigerant?
Many symptoms of a bad cycle switch are the same as those for a system low on refrigerant. The switch is designed to stop the compressor if refrigerant is low to prevent damage. Before replacing the switch, it's wise to have the system's pressure checked by a qualified technician.
Choosing the Right Aftermarket A/C Cycle Switch
For a workhorse truck like the 1990-2000 C3500, keeping the A/C running is important. When it comes to replacing the A/C clutch cycle switch, you have options. The original ACDelco part may be available, but aftermarket brands offer a cost-effective alternative.
Brand Tiers for Your Truck:

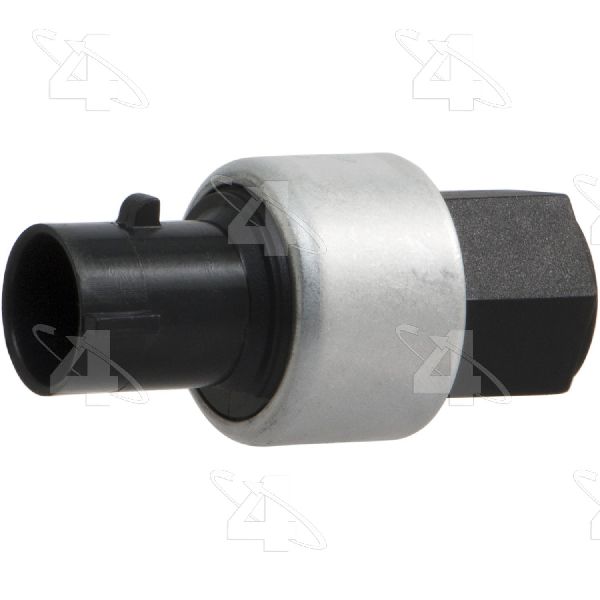

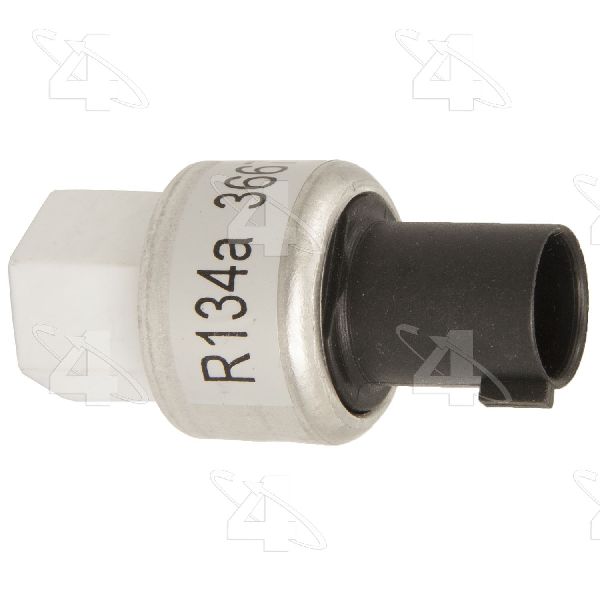

- Four Seasons: A widely available aftermarket brand. For simple electronic components like a pressure switch, Four Seasons is generally considered a reliable, standard-replacement option. While some forum users have mixed opinions on their more complex parts like compressors, their switches and sensors are typically a dependable choice for a repair.
- Global Parts Distributors (GPD): Another common aftermarket supplier. Like Four Seasons, GPD offers parts that meet OE-style fit and function. Some user reviews suggest Four Seasons may have a slight edge in perceived quality for certain components, but GPD is a viable budget-friendly option.
For a straightforward part like the A/C clutch cycle switch, both Four Seasons and Global Parts are suitable replacements that offer good value. The decision often comes down to price and availability.
Cost of Replacing the A/C Clutch Cycle Switch
Replacing this switch is one of the more affordable A/C repairs you can perform on your truck. The part itself is inexpensive, and labor is minimal.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $16 - $36 |
| New OEM (ACDelco) Switch | $25 - $45 |
| Shop Labor | $50 - $100 |
| Total (DIY) | $16 - $36 |
| Total (Installed) | $66 - $136 |
Frequently Asked Questions (FAQ)
Where is the A/C clutch cycle switch located on a 1990-2000 GMC C3500?
The switch is almost always located on the A/C accumulator (a metal can-like component, usually near the firewall on the passenger side 🎬 See exactly where the switch is located on your truck.). It's a small sensor with a two-wire electrical connector that screws onto a port on the accumulator.
Can I replace the A/C cycle switch myself?
Yes, this is a very DIY-friendly job. It typically requires only a small wrench. You simply unplug the electrical connector, unscrew the old switch, and screw the new one on. The entire process can take as little as 10-15 minutes.
🎬 Follow this easy step-by-step guide to replace the switch yourself.Do I need to evacuate the A/C system to replace the cycle switch?
No, in most cases you do not. The switch is mounted on a Schrader valve, similar to a tire valve. When you unscrew the switch, the valve should seal itself, preventing refrigerant from escaping. Have the new switch ready to install quickly just in case the valve leaks slightly.
Are there any recalls or TSBs for this part on my truck?
Searches of the NHTSA database did not show any specific recalls or Technical Service Bulletins (TSBs) for the A/C clutch cycle switch on the 1990-2000 GMC C3500. Any issues with this part are typically due to age and normal wear.
Helpful Videos
Technical Specifications
OEM Part Numbers: 52466358 52451436 52457853 52457854
Typically a 2-pin connector, screws onto a Schrader valve port on the A/C accumulator.
