Lexus LS400 A/C O-Ring and Gasket Kit Guide (1990-2000)
Stop nagging A/C leaks and restore cold air in your classic Lexus LS400.
- Confirm if your LS400 is the R12 (1990-1992) or R134a (1993-2000) version before ordering parts.
- Always use new HNBR o-rings when servicing an R134a system or a converted R12 system.
- It is best practice to replace all o-rings on any component that is disconnected to prevent future leaks.
- A/C system repair requires specialized tools for evacuation and recharging; it is not a simple DIY job for beginners.
Is Your LS400 A/C Not Blowing Cold?
A common reason for the A/C to fail in a 1990-2000 Lexus LS400 is a loss of refrigerant. This is almost always caused by a leak somewhere in the system. The o-rings and gaskets at every connection point are frequent culprits. Due to age and constant exposure to heat and pressure, these rubber seals degrade and lose their ability to seal properly. Replacing them is a critical step whenever the A/C system is opened for any repair.
Critical: Know Your Refrigerant Type
The single most important factor when servicing your LS400's A/C is the refrigerant type. This directly impacts which o-rings you must use.
- 1990-1992 Lexus LS400: Originally used R12 refrigerant. These systems use black Neoprene o-rings.
- 1993-2000 Lexus LS400: Used R134a refrigerant from the factory. These systems require green or black HNBR (Hydrogenated Nitrile Butadiene Rubber) o-rings.
If your 1990-1992 model has been converted to R134a (look for retrofit service port caps), you MUST use the newer HNBR o-rings. Using old-style R12 o-rings with R134a will cause them to fail quickly. All modern aftermarket kits should contain HNBR o-rings.
Common Leak Points on the LS400
While a leak can happen at any seal, some areas are more common on the first and second-generation LS400. When diagnosing a leak, pay close attention to the connections at the:
- A/C Compressor
- Condenser
- Receiver-Drier
- Expansion Valve
- Evaporator Core
Using a UV dye kit can help pinpoint the exact location of a leak by showing a bright glow under a UV light.

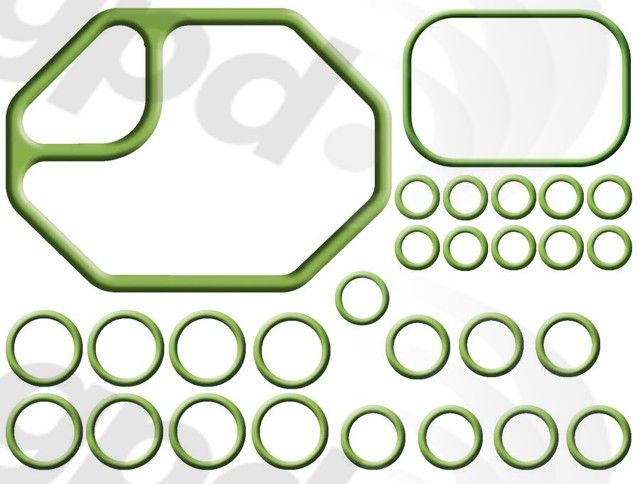

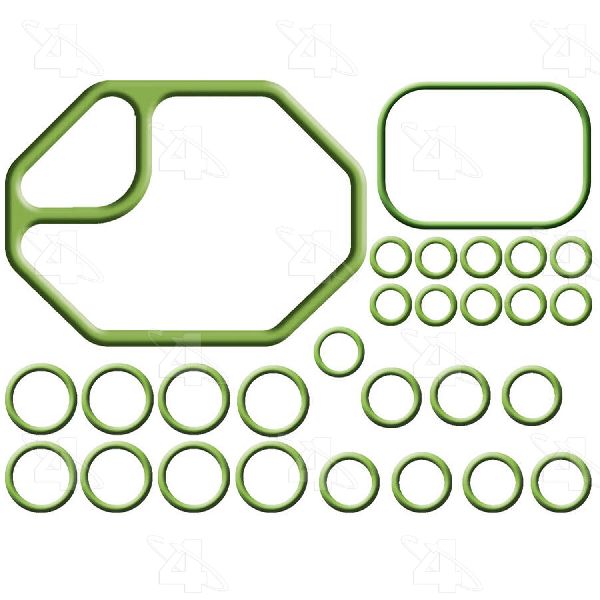

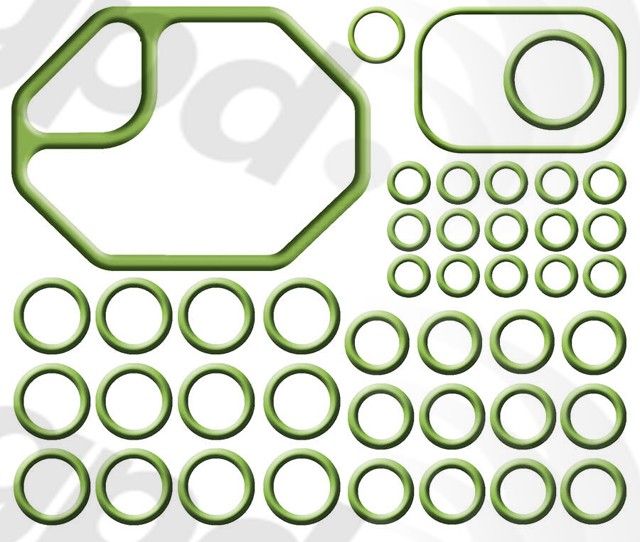

Choosing an Aftermarket O-Ring Kit
For a vehicle of this age, aftermarket o-ring kits provide excellent value. OEM kits from a Lexus dealer can be expensive and may not be readily available. Aftermarket brands offer comprehensive kits that are more than adequate for the job, provided they are made from the correct material (HNBR).
Brand Quality Tiers:
- Good (Value Focused): Brands like Global Parts (gpd) offer affordable kits that meet the basic requirements. While some professional mechanics have noted occasional issues with various aftermarket brands, they are generally sufficient for a DIY repair.
- Better (Trusted Aftermarket): Four Seasons and ACDelco are well-regarded names in the A/C parts world. They have a reputation for providing quality components and comprehensive kits. For a critical job like sealing the A/C system, spending a few extra dollars for a kit from one of these brands is a wise investment.
Pro Tip: When you open the A/C system for any reason—like replacing a compressor or condenser—it is essential to replace all the o-rings on the components you disconnect. They are single-use parts and reusing them will almost certainly lead to a leak.
Estimated Costs for A/C O-Ring Replacement
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket O-Ring & Gasket Kit | $10.58 - $26.88 |
| New OEM O-Ring & Gasket Kit | $50 - $100+ |
| Shop Labor (Evacuate & Recharge) | $150 - $300 |
Note: Labor costs can vary significantly based on location and the extent of the repair. This estimate is for the labor to evacuate and recharge the system, which is required for any o-ring replacement.
Frequently Asked Questions
Do I have to replace all the o-rings at once?
It is highly recommended. If one o-ring has failed due to age, others are likely not far behind. Since the system must be professionally evacuated and recharged anytime it's opened, it's most cost-effective to replace all accessible seals at the same time to prevent future leaks.
What's the difference between green and black A/C o-rings?
The color often indicates the material. Green o-rings are typically made of HNBR, which is compatible with R134a refrigerant. Some modern HNBR o-rings are also black. The original black o-rings in R12 systems were made of Neoprene and are not compatible with R134a. Always use an HNBR kit for a 1993+ LS400 or a converted early model.
Can I just use a stop-leak product?
A/C stop-leak products are generally not recommended by professionals. They can clog sensitive components like the expansion valve and condenser, leading to more expensive repairs down the road. The proper solution is to find and fix the leak by replacing the faulty seal.
Is this kit all I need to fix my A/C?
No. This kit only provides the seals. A full A/C repair requires specialized tools, including a manifold gauge set to read system pressures, a vacuum pump to remove air and moisture from the system, and the correct type and amount of refrigerant and compressor oil. This job is often best left to a professional or a very well-equipped DIY mechanic.
Technical Specifications
Material: HNBR (Hydrogenated Nitrile Butadiene Rubber) for compatibility with R134a refrigerant and PAG oil. Includes a variety of seal sizes for A/C line connections, compressor, condenser, and expansion valve.
