Lexus LS400 Engine Coolant Bypass Hose Explained (1990-2000)
Understanding the small hoses that can cause big overheating problems in your 1UZ-FE engine.
- A failing coolant bypass hose can cause serious engine overheating in your LS400.
- Symptoms include coolant leaks, a sweet smell from the engine bay, and an rising temperature gauge.
- High-quality aftermarket brands like Gates and Continental are reliable and cost-effective choices for this repair.
- Consider replacing these hoses preventively during other major services like a timing belt change to save on labor.
Is Your LS400 Losing Coolant or Overheating?
A failing engine coolant bypass hose is a common issue on older vehicles like the 1990-2000 Lexus LS400. Due to decades of heat cycles, the original rubber hoses can become brittle, crack, or swell. The result is often a coolant leak that can be difficult to spot. Because the hose is located on a hot part of the engine, small leaks may evaporate before they have a chance to drip onto the ground, leaving you with an unexplained loss of coolant.

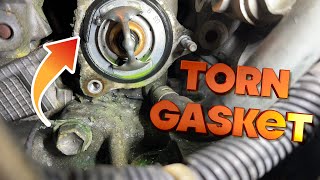

🎬 Watch this example of a major LS400 coolant leak.Don't Ignore the Signs
A small leak from a bypass hose can quickly lead to low coolant levels. This can cause your LS400 to overheat, which may result in severe engine damage like a blown head gasket. Addressing a failing hose early is key to protecting your engine.
Choosing the Right Aftermarket Bypass Hose
When replacing a coolant hose on your LS400, you have a choice between OEM (Original Equipment Manufacturer) from a Lexus dealer and aftermarket parts. While OEM hoses are known for their excellent quality and long life, they can be more expensive. For a vehicle of this age, a high-quality aftermarket hose is a smart and budget-friendly choice.
- Top Tier Aftermarket (Gates, Continental): Brands like Gates and Continental are well-regarded in the automotive community for producing hoses that meet or exceed OEM specifications. They are known for proper fitment and using durable EPDM rubber, which resists heat and degradation. For the LS400, these brands offer a reliable and affordable alternative to OEM.
- OEM: The original Toyota/Lexus hoses have proven they can last for many years. If you prefer to stick with original parts, the OEM hose is an excellent, albeit more expensive, option.
Pro Tip: Replace While You're In There
Many of the bypass hoses on the 1UZ-FE engine are difficult to access. The best time to replace them is during a larger service, such as a timing belt and water pump replacement, when other components are already removed. 🎬 Watch a walkthrough of the timing belt and pump replacement. This can save you a significant amount in labor costs down the road.
Engine Coolant Bypass Hose Cost for 1990-2000 Lexus LS400
| Part Type | Price Range |
|---|---|
| New Aftermarket (Gates, Continental) | $15 - $71 |
| New OEM (Lexus/Toyota) | $8 - $15 |
| Shop Labor Cost | $240 - $510 |
Note: Prices are estimates and can vary based on location, supplier, and the specific hose being replaced. Labor costs are highly dependent on which hose is failing, as some are much more difficult to access than others.
Frequently Asked Questions
Where is the engine coolant bypass hose located?
The term 'bypass hose' can refer to several small hoses on the LS400 engine. A common one that fails is a short, molded hose located under the thermostat housing, just above the water pump. 🎬 See a detailed explanation of the 1UZ thermostat bypass circuit. Other bypass hoses are located under the intake manifold and connect to the throttle body. Pinpointing the exact location of a leak is necessary before ordering a part.
Can I replace the LS400 coolant bypass hose myself?
This depends on the location of the hose and your mechanical skill. Some hoses are relatively accessible, while others require removing the intake manifold or other major components. Due to the difficulty of accessing clamps in tight spaces, this job can be challenging. If you are not experienced with extensive cooling system work, professional installation is recommended.
Is this the same as a radiator hose?
No. Radiator hoses are the large-diameter hoses that connect the top and bottom of the radiator to the engine. Bypass hoses are much smaller in diameter and circulate coolant within the engine itself or to components like the throttle body.
Should I use OEM or aftermarket hoses?
For the LS400, both are good options. OEM hoses have a proven track record of longevity. However, top-tier aftermarket brands like Gates and Continental offer excellent quality and fit at a lower price, making them a very practical choice for this vehicle.
Helpful Videos
Technical Specifications

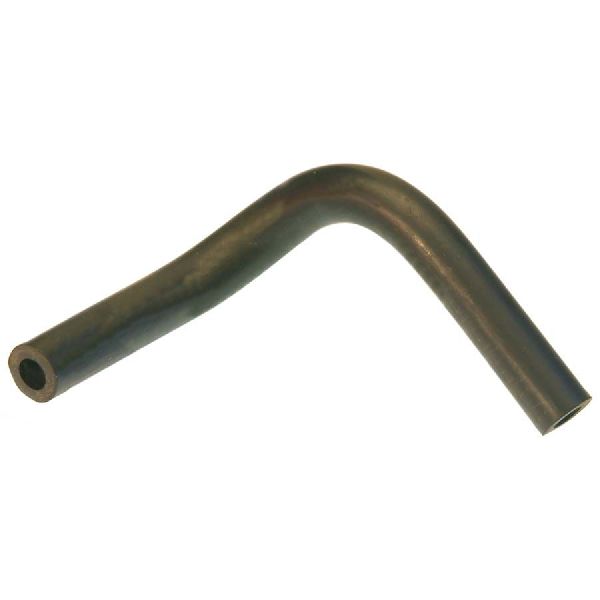

OEM Part Numbers: 16261-50090 16261-50020 16264-50040
The Lexus LS400 uses several small EPDM rubber bypass hoses. The specific part needed depends on the location of the failure. Common sizes have inside diameters around 1/4" (7mm) or 3/8" (10mm). It is crucial to identify the correct molded hose for the specific application, as a generic straight hose may not fit.
