Lexus LS400 Engine Timing Belt Kit: A Guide for 1990-2000 Models
Understanding the timing belt service is critical, especially for 1995-2000 LS400s with interference engines.
- For 1995-2000 models, a timing belt failure will cause catastrophic engine damage; this service is not optional.
- Always replace the complete kit: belt, water pump, tensioner, and idlers. Component failure is the most common cause of a broken belt.
- The recommended service interval is 90,000 miles or 7 years, whichever comes first. Do not ignore the time limit.
- Aisin timing belt kits are widely considered the best option, as they contain OEM-quality components trusted by Lexus specialists.
The Most Important Job on Your LS400
For any 1990-2000 Lexus LS400 owner, the timing belt service is the single most important piece of preventative maintenance you can perform. The 1UZ-FE V8 engine is famous for its durability, but that reliability depends on replacing the timing belt and its related components on schedule. The recommended interval is every 90,000 miles or 7 years, whichever comes first. It's common for a seized idler pulley or a failing water pump to cause the belt to break, not the belt itself.
Generation Differences: Interference vs. Non-Interference
A critical difference exists between early and later LS400 models that affects the urgency of this repair:
- 1990-1994 LS400: These models have a non-interference engine. If the timing belt breaks, the engine will shut down, but the pistons and valves will not collide. This will leave you stranded but won't destroy the engine.
- 1995-2000 LS400: These models have an interference engine. If the timing belt fails, the pistons will strike the valves, causing severe and expensive internal engine damage that often requires a complete rebuild. For these years, using high-quality parts and sticking to the service interval is not negotiable.
Symptoms of a Failing Timing Belt Kit
A failing timing belt component doesn't always give a warning, but you should stop driving immediately if you notice these signs:
- Ticking or Scraping Noises: A ticking or grinding sound from the front of the engine can indicate a worn belt or a failing pulley bearing.
- Engine Won't Start: If the belt has snapped, the engine will crank over (often faster than usual) but will not start because there is no compression.
- Rough Idle or Misfires: If the belt has stretched or jumped a tooth, the engine's timing will be off, leading to poor performance, a rough idle, and a potential check engine light. 🎬 See a video breakdown of common timing symptoms and issues.
Choosing the Right Aftermarket Kit
While several brands are available, owner experiences show a clear preference for quality, especially on the interference engines (1995-2000). The cost of the parts is small compared to the labor or the cost of engine damage from a failed component.
Brand Quality Tiers for Your LS400
Tier 1 - OEM Quality (Highly Recommended): Aisin
Aisin is the Original Equipment Manufacturer (OEM) for many of the timing components, including the water pump. An Aisin kit (like TKT-021 or TKT-030) is widely considered the best choice, as it typically includes the same parts you would get from a Lexus dealer, such as a Mitsuboshi belt and Koyo or NSK bearings. For any 1995-2000 LS400, this is the safest and most recommended option.

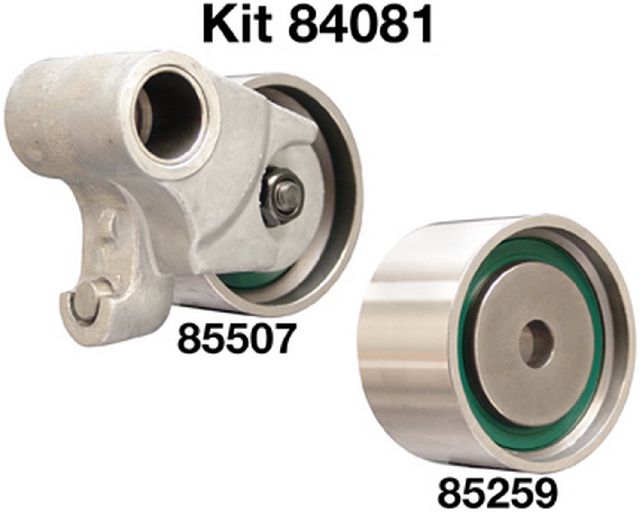

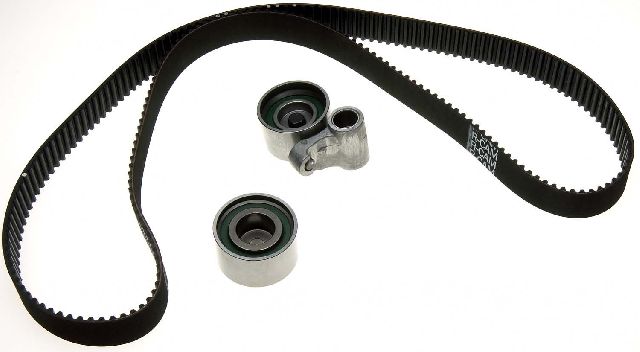

Tier 2 - Reputable Aftermarket: Gates & Dayco
Gates and Dayco are well-known belt manufacturers with a generally good reputation. The main concern voiced by mechanics and owners is not with the belts themselves, but with the other components in the kits, like water pumps and pulleys, which may be of lower quality than the Japanese-made parts found in Aisin kits. While they can be a budget-friendly choice, especially for non-interference engines, many owners avoid the risk on 1995+ models.

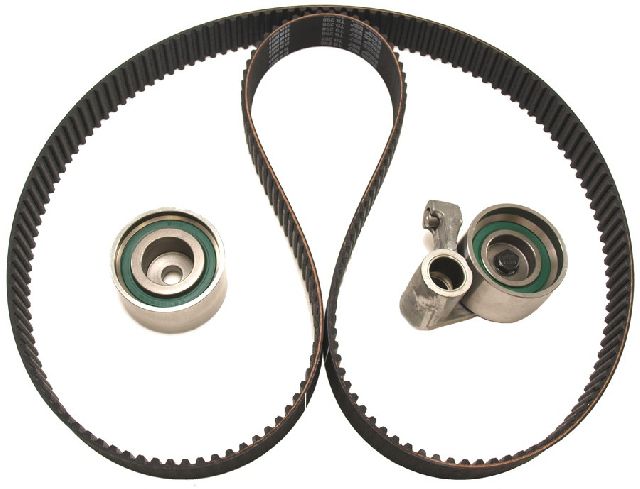

Other Brands: Cloyes
Searches for Cloyes timing kits for the LS400 often lead to parts for other Toyota engines. Ensure any kit you consider is specifically listed for the 4.0L 1UZ-FE V8 engine for your exact year.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Kit | $82.90 - $168.57 |
| New OEM Kit (Dealer) | $674 - $774 |
| Shop Labor | $579 - $849 |
| Total Professional Job (Aftermarket) | $662 - $1,018 |
| Total Professional Job (OEM) | $1,252 - $1,623 |
Frequently Asked Questions (FAQ)
What else should I replace with the timing belt?
Since the job is so labor-intensive, it's smart to replace other parts at the same time. A complete kit should include the belt, water pump, hydraulic tensioner, and both idler pulleys. It is also highly recommended to replace the camshaft and crankshaft seals, the thermostat, and the serpentine (drive) belt.
Can I just replace the belt and not the other parts?
No, this is a very bad idea. The pulleys and water pump wear out, and their failure is a more common cause of the timing belt breaking than the belt itself. The majority of the replacement cost is labor, so saving a few dollars on parts puts your engine at massive risk.
Is this a difficult job to do myself (DIY)?
For a novice mechanic, this is not recommended. It is a complex, time-consuming job rated at a 9/10 difficulty. It requires special tools and precision. An error in setting the timing can destroy an interference engine the moment you try to start it. For an experienced home mechanic, it is feasible but plan for a full weekend.
🎬 Watch: Part I of this comprehensive timing belt replacement walkthrough.Are there any recalls on the LS400 timing belt?
No. There are no recalls or major Technical Service Bulletins (TSBs) from Lexus or the NHTSA for the timing belt system on the 1990-2000 LS400. It is considered a regular maintenance item that must be replaced due to age and mileage.
Helpful Videos
Technical Specifications
OEM Part Numbers: 13568-59095 13568-09070 13568-59045
Engine: 4.0L 1UZ-FE V8. Belt Tooth Count: 191 (Note: Pre-1998 and 1998+ VVT-i engines may use different kits; always verify fitment.)
