Lexus LS400 Engine Valve Cover Gasket Set Replacement Guide (1990-2000)
Stop oil leaks and burning smells by choosing the right valve cover gasket set for your LS400's 1UZ-FE engine.
- A burning oil smell is the most common sign of a failed valve cover gasket on an LS400.
- Choose a complete kit that includes valve cover gaskets, spark plug tube seals, and bolt grommets.
- Aftermarket brands like Beck Arnley offer OEM-quality without the high dealer price.
- Applying a small amount of FIPG/RTV sealant at the corners and half-moons is critical for a leak-free seal.
Symptoms of a Failing Valve Cover Gasket on Your LS400
The gaskets on your LS400 are made of rubber and sit in a very hot environment. Over time, they become hard, brittle, and compress, losing their ability to seal properly. When this happens, you'll likely notice one or more of these symptoms:
- Burning Oil Smell: This is the most common sign. Oil leaks from the valve cover and drips onto the hot exhaust manifolds below, creating a noticeable burning smell, especially after you park the car. 🎬 Watch: How to diagnose a leaking valve cover gasket.
- Visible Oil Leaks: You may see oil residue, grime, and dirt buildup on the valve covers, particularly around the edges and at the back near the firewall. In more advanced cases, you'll see drips on the ground.
- Oil in Spark Plug Wells: When you remove a spark plug wire or ignition coil, you might find oil pooled in the spark plug tube. This is caused by failed spark plug tube seals, which are part of the gasket set, and can lead to engine misfires.
- Low Engine Oil: A significant leak can cause a noticeable drop in your engine oil level between changes, requiring you to add oil.
Fire Hazard Warning
A significant oil leak that drips onto a hot exhaust manifold is a fire risk. While a minor seep is less urgent, any leak that causes smoking or a strong burning smell should be addressed promptly to ensure safety.
Choosing the Right Aftermarket Gasket Set
For the LS400, you don't necessarily need to buy the expensive OEM gasket set from a Lexus dealer to get a quality, long-lasting seal. Many aftermarket brands offer excellent quality, sometimes from the same factories that supply Toyota/Lexus. Here's a breakdown of popular choices:
- Top Tier (OEM Equivalent): Beck Arnley is often cited by LS400 owners as a top choice. Their kits are frequently reported to be made in Japan and are considered as close to OEM quality as you can get, often at a fraction of the price. They typically provide a complete kit with all necessary seals and grommets.
- Reliable Performer: Fel-Pro is a well-known and trusted name in the aftermarket gasket industry. They design their gaskets for the "imperfect sealing surfaces" of older engines, which can be a benefit on a high-mileage LS400. While generally reliable, some users have noted fitment can occasionally be less precise than OEM.
- Good Value Options: Victor Reinz and Mahle are also strong contenders. Victor Reinz is an OEM supplier for many European brands, and their gaskets are known to be made of soft, pliable rubber. Apex is generally positioned as a budget-friendly option.
Pro Tip: A full "set" is highly recommended. These kits should include the two main valve cover gaskets, eight spark plug tube seals, and sixteen bolt grommets. Replacing only the main gaskets is a common mistake that often results in continued leaks from the old, hardened tube seals or grommets.
Cost of Replacing LS400 Valve Cover Gaskets
The cost can vary based on who does the work and the parts you choose. The job is labor-intensive due to the number of components that must be removed to access the covers.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $36 - $80 |
| Shop Labor | $350 - $600 |
| Total Professional Installation | $386 - $680 |
Frequently Asked Questions (FAQ)
Is this a good DIY job for a beginner?
This job is considered intermediate to advanced. While straightforward, it is time-consuming and requires removing many parts like the air intake, throttle body, and wiring harnesses to gain access. The passenger side is significantly more difficult than the driver's side. Plan for a full weekend if it's your first time.

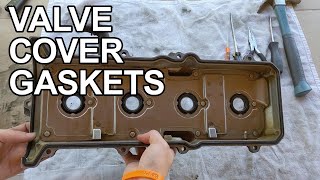

🎬 See this step-by-step walkthrough for replacing your gaskets.Do I need any special tools?
You'll need a good metric socket set with various extensions and swivels (especially for 10mm bolts), a torque wrench (in-lb), pliers, and a tool for installing the new spark plug tube seals (a large socket or piece of wood works well). A cordless driver can save a lot of time.
What is FIPG and do I need it?
FIPG stands for "Form-In-Place Gasket," which is a type of RTV silicone sealant. For the LS400, Toyota specifies applying a small amount of FIPG at the sharp corners where the cylinder head meets the camshaft caps and on the half-moon plugs at the back of the heads to prevent leaks in these critical areas. Do not apply it along the entire gasket.
Are there any recalls or TSBs for this issue?
There are no specific recalls or Technical Service Bulletins (TSBs) from Lexus for leaking valve cover gaskets on the 1990-2000 LS400. This is considered a normal wear-and-tear maintenance item. However, Lexus did issue a general TSB (L-SB-0002-20) that helps technicians differentiate between a minor "seep," which is normal, and an active "leak" that requires repair.
Is there a difference between gaskets for early and late models?
Yes, there is a difference. The 1990-1997 models (non-VVT-i) use a different gasket set than the 1998-2000 models (with VVT-i). The valve covers and head design were changed with the introduction of VVT-i. Ensure you purchase the correct set for your specific year.
Helpful Videos
Technical Specifications
OEM Part Numbers: 11213-50021 11214-50011 11193-15010 90210-07001 11213-50031

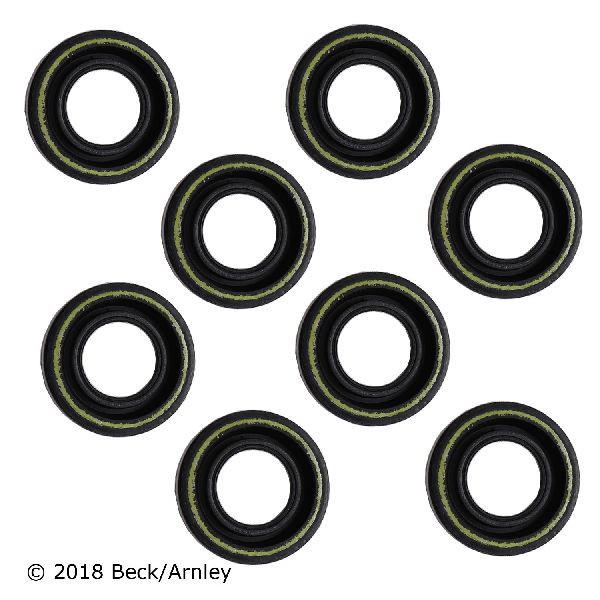

The full set for a 1990-2000 Lexus LS400 includes: two (2) valve cover gaskets, eight (8) spark plug tube seals, and sixteen (16) bolt grommet washers. The specific part numbers for the main gaskets differ between 1990-1997 (non-VVT-i) and 1998-2000 (VVT-i) models.
