Chevrolet Lumina Starter Replacement Guide for 1990-2001 Models
Don't get stranded by a bad starter; learn the signs of failure and how to choose the right replacement for your Lumina.
- A single loud click is a classic sign of a bad starter, but always test the battery first as a weak battery can cause similar symptoms.
- For this vehicle, a new aftermarket starter provides better value and reliability than a remanufactured one, with no core return required.
- When replacing the starter, check for and reinstall any original shims to ensure proper gear alignment.
- Starting problems can also be caused by the GM Pass-Key anti-theft system or corroded battery cables, not just the starter itself.
Is Your Lumina's Starter Failing?
A starter problem can easily be mistaken for a dead battery. Before you decide the starter is bad, always make sure your battery is fully charged and the terminals are clean and tight. A weak or dead battery is one of the most common reasons for a no-start condition. 🎬 Watch: How to tell if your battery, alternator, or starter is failing. If the battery is good, the issue likely lies with the starter or its related components.
Common Symptoms of a Bad Starter
Listen closely when you turn the key. The sounds your car makes—or doesn't make—can tell you a lot about what's wrong.
🎬 See a video breakdown of these 5 common bad starter symptoms.- Single Loud Click: You turn the key and hear one solid click, but the engine doesn't crank. This often points to a bad starter solenoid, which is part of the starter motor assembly.
- Rapid Clicking/Chattering: A fast clicking or buzzing sound usually means the starter is getting power but doesn't have enough from the battery to turn the engine. This is more often a sign of a weak battery or a poor electrical connection.
- No Sound at All: If your dashboard lights turn on but you hear nothing when you turn the key, the starter may have completely failed, or it could be a problem with the ignition switch or starter relay.
- Engine Cranks Slowly: If the engine turns over much slower than usual, the starter motor could be wearing out and losing its power.
- Grinding or Whirring Noise: A high-pitched whirring or grinding sound can mean the starter gear is not engaging correctly with the engine's flywheel, or it has failed to disengage after the engine started.
Other Potential Starting Issues
Sometimes, a starting problem isn't the starter at all. On these GM vehicles, issues like a faulty GM Pass-Key anti-theft system, a bad starter relay, or loose/corroded battery cables can prevent the engine from cranking. Always check these possibilities, especially on an older vehicle.
Choosing the Right Aftermarket Starter
For a vehicle like the 1990-2001 Lumina, a new aftermarket starter offers the best combination of reliability and value. Unlike remanufactured parts, which may contain used components, these new starters are built with 100% new materials and do not require you to return the old part (a "core").
Here’s a breakdown of the available brands:
- Bosch: Often considered a top-tier brand, Bosch parts are known for their quality and engineering. While they may be at a higher price point, they are a reliable choice.
- Remy: With roots connected to GM's original part supplier (Delco-Remy), Remy is a well-respected name in aftermarket electrical parts. They offer a good balance of quality and affordability.
- WAI Global & BBB Industries: These are major aftermarket manufacturers that produce a wide range of new electrical parts. They are common in professional repair shops and represent a solid, standard-quality replacement option that meets or exceeds original specifications.
A Note on Installation
When replacing the starter, pay close attention to see if there are any thin metal plates, called shims, between the old starter and the engine block. If present, these shims must be reinstalled in the same position with the new starter to ensure proper gear alignment and prevent damage.
Cost of a New Aftermarket Starter for a 1990-2001 Chevrolet Lumina
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Starter | $99.96 - $268.68 |
| Shop Labor for Installation | $120 - $250 |
Frequently Asked Questions
Is it hard to replace the starter on a Lumina?

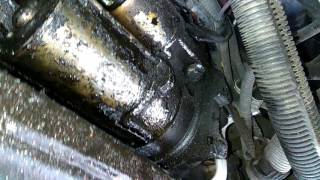

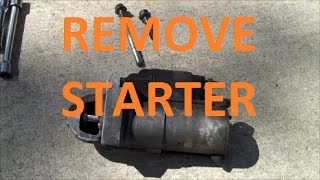

The difficulty varies by engine. On most models with the 3.1L V6, the starter is on the front of the engine and is fairly easy to access from underneath. 🎬 Watch this step-by-step guide to replacing a Lumina 3.1L starter. However, on some models like the Lumina Z34 with the 3.4L DOHC engine, access is much more difficult and may require removing other components. The job typically takes 1-2 hours for a moderately skilled DIY mechanic.
What tools do I need to replace the starter?
You will need basic hand tools, including a ratchet and sockets (typically 10mm, 13mm, and 15mm). A universal joint or swivel socket can be very helpful for reaching the rear mounting bolt. Remember to always disconnect the battery before beginning work.
My car just clicks. Is it the starter or the battery?
It could be either, but there's an easy way to check. Turn on your headlights. If they are bright, your battery is likely okay, and the problem is probably the starter or its connections. If the headlights are dim or don't turn on, your battery is the problem. A rapid clicking noise almost always points to a weak battery.
What is a starter solenoid?
The solenoid is a small, cylindrical component usually attached to the top of the starter. It acts as a powerful switch, taking the small electrical signal from your ignition key and using it to close a circuit that sends the full power of the battery to the starter motor. It also pushes the starter gear out to engage the engine's flywheel. All new starters for this vehicle include a new solenoid.
Were there any recalls for the starter on the 1990-2001 Lumina?
No, a search of the National Highway Traffic Safety Administration (NHTSA) database shows no safety recalls specifically for the starter motor on the 1990-2001 Chevrolet Lumina. Any failures are typically due to age and normal wear.
Helpful Videos
Technical Specifications
The starter is typically a 12-volt, direct-drive unit with a solenoid-actuated gear. The number of teeth on the drive gear can vary by engine and year, so it is crucial to match the new part to the specific vehicle configuration. Power ratings for aftermarket units typically range from 1.2 kW to 1.6 kW.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
