Engine Timing Sets for the 1990-2001 Ford F-150: A Complete Guide
Don't let a rattling timing chain sideline your Ford F-150; understand your replacement options before it's too late.
- Identify your engine first; timing systems differ greatly between the 4.9L I6 (gears), pushrod V8s (single chain), and Triton V8s (dual chains with guides).
- For Triton V8s (4.6L/5.4L), a startup rattle is a critical warning of failing guides that must be addressed immediately to prevent engine destruction.
- Choose high-quality aftermarket kits from brands like Melling or Cloyes, which often feature improved designs like cast iron tensioners.
- This is a very labor-intensive job; always replace related items like the water pump, front crank seal, and timing cover gaskets at the same time.
Understanding Your F-150's Timing System: Not All Are Created Equal
The 1990-2001 Ford F-150 generation spans several different engine designs, and their timing systems vary significantly. It's crucial to know what's in your truck before you shop for parts.

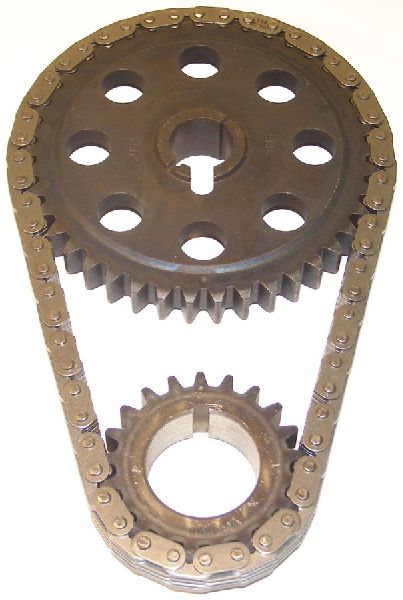

- 1990-1996 (9th Gen): This era featured the legendary 4.9L (300ci) inline-6 and the 5.0L (302ci) and 5.8L (351W) V8s. The 4.9L I6 is unique because it uses a set of two robust gears, not a timing chain. These are extremely durable but can wear out at very high mileage, often causing a grinding noise. The V8s use a more conventional single timing chain and sprocket setup, which is simple and reliable but the chain can stretch over time.

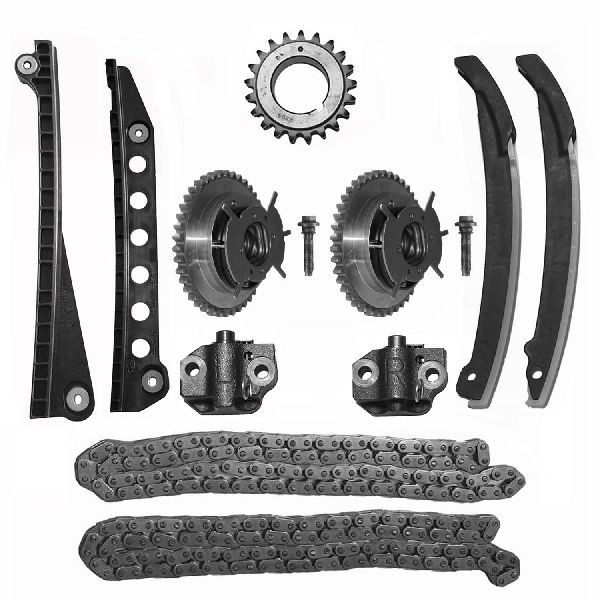

- 1997-2001 (10th Gen): This generation introduced new engines. The 4.2L V6 uses a timing chain. The 4.6L and 5.4L Triton V8s feature a more complex overhead cam (OHC) design with two long timing chains, multiple plastic guides, and oil-pressure-fed tensioners. These Triton V8 systems are well-known for specific problems, primarily the plastic guides becoming brittle and breaking apart.
Warning: The Triton V8 Startup Rattle
If you own a 1997-2001 F-150 with a 4.6L or 5.4L V8, do not ignore a rattling or slapping noise from the front of the engine on a cold start. 🎬 Watch this video to identify and diagnose Triton V8 startup rattle. This is the classic sign of failing plastic timing chain guides and/or bad tensioners. Ignoring this can lead to the chain jumping time, causing pistons to hit valves and resulting in catastrophic, expensive engine failure.
Choosing the Right Aftermarket Timing Set
When it's time for a replacement, you have several choices. For these trucks, a high-quality aftermarket kit is often the best and most cost-effective solution.
Brand Tiers & Quality

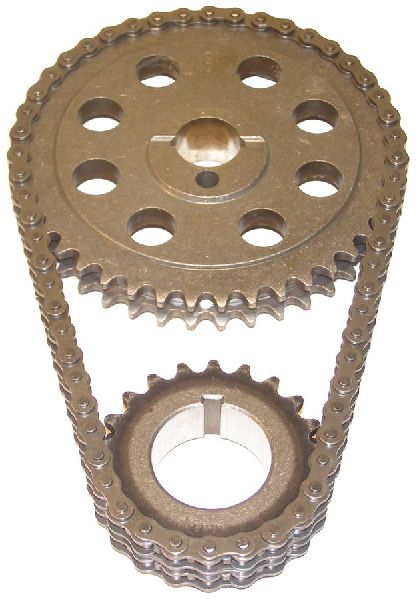

- Premium & Heavy-Duty (Melling, Cloyes): These are the most recommended brands for a stock or heavy-duty replacement. They are well-regarded in forums and by mechanics. Melling and Cloyes often offer kits with upgraded components, such as cast iron tensioners for Triton V8s to replace the weaker original plastic designs. For the older pushrod V8s, they offer durable double-roller chain sets.
- Performance (Ford Performance, Edelbrock, Melling Select): These brands are for high-performance or racing builds. They offer features like billet steel gears and adjustable timing, which are unnecessary and not cost-effective for a daily driver or work truck.
- Standard (INA, Skyward): INA is a known OEM supplier for many manufacturers and can be a reliable choice. Brands like Skyward are typically budget-focused. While the initial cost is lower, durability may be a concern, especially for the complex Triton V8 systems where the quality of guides and tensioners is critical. Given the high labor cost of this job, saving a few dollars on a budget kit is often not worth the risk of premature failure.
Pro Tip: While You're In There...
Replacing the timing set is a labor-intensive job that requires removing many components from the front of the engine, including the water pump. It is highly recommended to replace the water pump, front crankshaft seal, and timing cover gaskets at the same time. For Triton V8s, many owners also choose to install a new high-volume oil pump (like the Melling M340HV or M360HV) to ensure strong oil pressure for the new tensioners.
Known Issues, Recalls, and Service Bulletins
While searches for official NHTSA recalls on timing components for the 1990-2001 F-150 did not yield specific results, this era is known for several common issues and Technical Service Bulletins (TSBs).
- Triton V8 (4.6L/5.4L): The most significant issue is the failure of the original plastic timing chain guides and tensioner seals. The plastic becomes brittle with age and heat cycles, breaking into pieces that can fall into the oil pan and clog the oil pump pickup tube. This leads to chain slack, noise, and eventually, engine failure.
- 4.2L V6: Early versions of this engine (1997-1998) were known for issues with the timing cover gasket failing, which could allow coolant to leak into the engine oil. Ford addressed this with service program #99B29, which involved replacing the gasket.
- 4.9L I6: The original camshaft gear was made of a phenolic fiber material that could strip teeth after very high mileage. Most aftermarket replacements are made of more durable aluminum or cast iron. 🎬 Learn how to replace the camshaft timing gear on a 4.9L I6.
Frequently Asked Questions (FAQ)
How much does it cost to replace an F-150 timing set?
The cost varies widely by engine. Aftermarket part kits can range from around $42 to over $840. Shop labor is the biggest expense, estimated between $1,466 and $2,150 for a V8, as the job can take 8-15 hours. A simple 5.0L V8 will be on the lower end, while a 5.4L OHC V8 will be on the higher end.
Is this a DIY job?
For most people, no. Replacing a timing set is a complex and difficult job. The 9th Gen V8s are moderately difficult for an experienced DIYer. The 10th Gen Triton V8s are an expert-level job due to the complexity of the OHC system. 🎬 See a step-by-step guide for replacing Triton V8 timing components. Mistakes in timing alignment can destroy the engine. Special tools like a harmonic balancer puller are also required.
Should I use OEM or Aftermarket parts?
For these older trucks, high-quality aftermarket parts from brands like Melling or Cloyes are often considered an upgrade over the original stock parts, especially for the Triton V8s where aftermarket kits use improved materials like cast iron tensioners. Many forum users and mechanics recommend this approach over sourcing expensive or potentially unavailable OEM parts.
What are the timing-related engine codes?
A failing timing set can trigger several Diagnostic Trouble Codes (DTCs). Look for codes like P0340 (Camshaft Position Sensor Circuit Malfunction), P0016 (Crankshaft Position - Camshaft Position Correlation), or general misfire codes (P0300-P0308) as the engine's timing becomes erratic.
Helpful Videos
Technical Specifications
System type varies by engine: Gear-driven (4.9L I6), single chain with sprockets (5.0L, 5.8L V8), dual chains with hydraulic tensioners and guides (4.2L V6, 4.6L V8, 5.4L V8).
