Ford Thunderbird Engine Coolant Bypass Hose Guide (1990-2002)
Addressing common coolant leaks on your Thunderbird, from simple fixes to hidden problems.
- Correctly identify your engine (3.8L V6, 4.6L V8, or 3.9L V8) as the bypass hose is different for each.
- On V8 models, be aware that a common and hard-to-find leak source is the coolant hose/pipe located under the intake manifold.
- Labor is the most significant cost for this repair if the hose is under the intake manifold; the part itself is inexpensive.
- Aftermarket brands like Gates, Continental, and Dayco offer reliable, OEM-quality replacements for this part.
Understanding Your Thunderbird's Cooling System: MN12 vs. DEW98
The 1990-2002 Ford Thunderbird covers two very different platforms. The specific Engine Coolant Bypass Hose you need depends on your engine.
- 1990-1997 (MN12 Platform): These models came with a 3.8L V6 or a 4.6L V8 (1994-1997). The 4.6L V8 is known for a coolant leak from a metal heater tube that runs under the plastic intake manifold. This part often corrodes and leaks, and its rubber hose connections fail.
- 2002 (DEW98 Platform): The revived Thunderbird uses a 3.9L V8, which is related to the engine in the Lincoln LS. This engine also has coolant hoses located under the intake manifold that are a common source of leaks. Additionally, the plastic thermostat housing on these models is prone to cracking. 🎬 Watch: How to replace the 3.9L thermostat housing and outlet.
Symptoms of a Failing Bypass Hose
A failing bypass hose will cause a coolant leak. Because these hoses are often hidden, you might notice other symptoms before you see a puddle on the ground.
- Sweet Smell of Coolant: You may smell hot antifreeze around the engine bay after a drive.
- Engine Overheating: Especially at idle or in stop-and-go traffic, the temperature gauge may climb higher than normal. 🎬 See this diagnostic overview for 3.9L V8 overheating issues.
- Low Coolant Light: The warning light on your dashboard may illuminate.
- Visible Coolant Residue: For leaks under the intake manifold on V8 models, you may see coolant pooling in the engine valley between the cylinder heads. It might look like a stain or a small puddle that doesn't reach the ground until the leak is severe.
- Puddles Under the Car: A significant leak will eventually result in green, orange, or yellow puddles on your driveway.
Known Issue: Under-Manifold Coolant Leaks on V8 Engines
For both the 4.6L (1994-1997) and 3.9L (2002) V8 engines, the most notorious coolant bypass path is under the intake manifold. The metal pipe and its hose connections can corrode and fail over time. Replacement is labor-intensive as the entire intake manifold must be removed 🎬 Watch: This V8 intake manifold removal guide shows the process. to access the part. If you have an unexplained coolant leak on a V8 Thunderbird, this is a primary suspect.
Choosing the Right Aftermarket Bypass Hose
For a simple rubber part like a hose, aftermarket brands offer excellent quality and value. The original OEM hoses have aged, and a new aftermarket part is a reliable choice. There is no significant quality drop-off compared to OEM for this part, and in some cases, modern rubber compounds may be superior.
Brand Quality Tiers:
- Tier 1 (Excellent Quality & Fit): Gates, Continental
Gates has a strong reputation among mechanics for excellent fitment and durability. Continental (which also produces hoses under the Goodyear name) is another premium brand known for OEM-level quality. - Tier 2 (Good Quality): Dayco
Dayco is a well-known brand that produces reliable hoses. While some users occasionally report minor fitment differences compared to the original part, they are a dependable and widely available option.
Ultimately, choosing between Gates, Continental, or Dayco will result in a quality repair. The most important factor is ensuring the part number matches your specific year and engine.
Typical Replacement Costs
The cost to replace an engine coolant bypass hose varies dramatically based on its location.
| Item | Estimated Cost |
|---|---|
| Aftermarket Bypass Hose | $19.87 - $61.72 |
| Shop Labor (Accessible Hose) | $100 - $200 |
| Shop Labor (Under Intake Manifold) | $600 - $950+ |
| Total (Accessible Hose) | $120 - $262 |
| Total (Under Intake Manifold) | $620 - $1,012+ |
Cost estimates are for parts and labor and can vary by location and vehicle specifics. The high labor cost reflects the complexity of replacing hoses under the intake manifold.
Frequently Asked Questions (FAQ)
Are there any recalls for the Thunderbird coolant bypass hose?
No, there are no recalls from Ford or the NHTSA for the engine coolant bypass hose on any 1990-2002 Ford Thunderbird. While many other recalls exist for these model years, none address the cooling system hoses.
Is replacing the bypass hose a DIY job?
It depends on the location. If the hose is easily accessible, it is a feasible DIY job for someone with basic tools. However, if the hose is under the intake manifold (a common failure on V8 models), the job is much more complex. It requires significant disassembly and is best left to an experienced mechanic.
My V8 is leaking coolant, but I can't see from where. What should I check?
If you have a 4.6L or 3.9L V8 and an unexplained coolant leak, the prime suspect is the coolant pipe running under the intake manifold. Coolant often pools in the engine valley and may not drip onto the ground until the leak is severe. Use a flashlight to inspect the area between the cylinder heads, under the fuel rails and intake runners.
Is an aftermarket hose from Gates, Dayco, or Continental good enough?
Yes. These are all reputable manufacturers that supply parts to automakers. For a wear item like a hose, a new, quality aftermarket part is a reliable and cost-effective choice. Fitment is the most important consideration, and these brands generally have a good reputation for it.

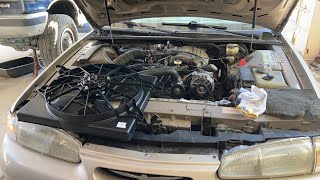

Helpful Videos
Technical Specifications

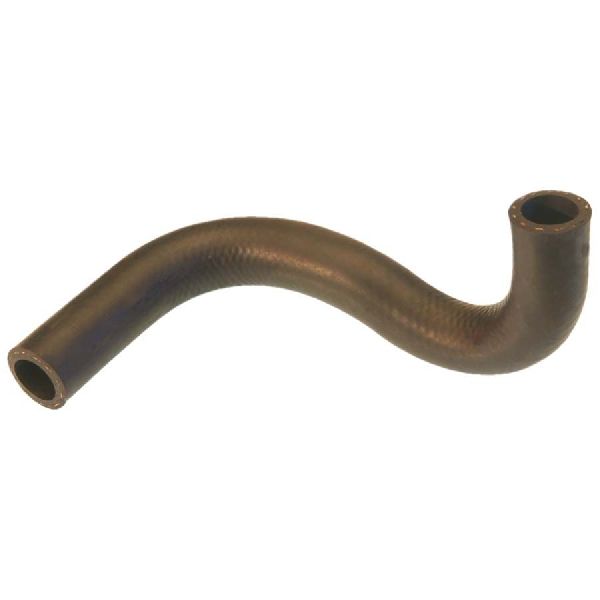

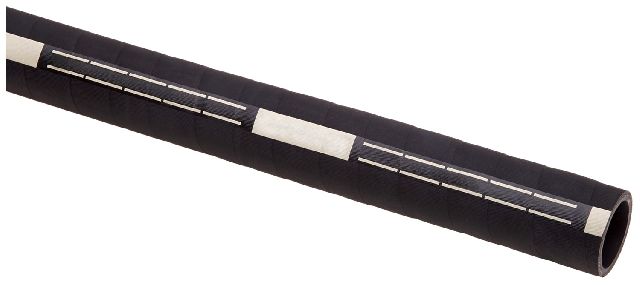

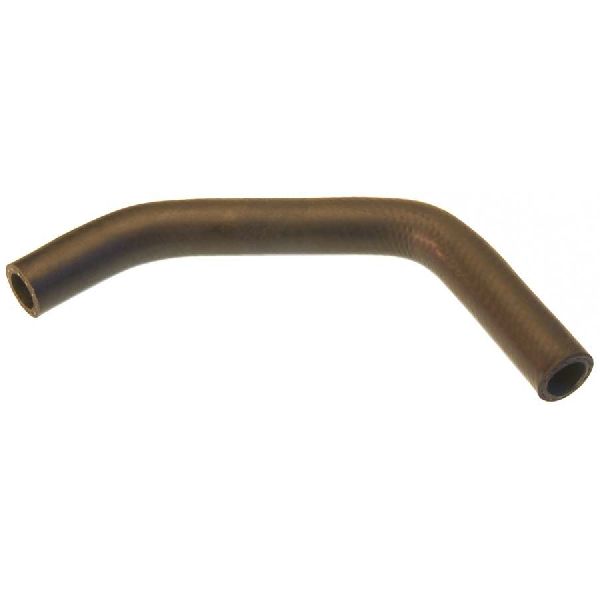

The Engine Coolant Bypass Hose varies by engine type and year. It is typically a molded rubber hose designed to withstand high temperatures and coolant chemicals. On V8 models, it may be part of an assembly that includes a metal pipe.
