Engine Valve Cover Gasket Set for the 1990-2002 Mercury Cougar
Stop oil leaks and that burning smell by replacing your Cougar's valve cover gaskets.
- Identify your engine first; 1990-1997 and 1999-2002 Cougars use completely different engines and gaskets.
- A burning oil smell is the most common sign of a failed valve cover gasket.
- High-quality aftermarket brands like Fel-Pro and Victor Reinz are excellent choices and often preferred over OEM.
- Labor costs for V6 models are significantly higher due to the difficulty of accessing the rear valve cover.
Generational Differences are Key
Before buying a valve cover gasket set, you must know which Mercury Cougar you have. The 1990-2002 model years span two very different generations of the car with different engines.
- 1990-1997 (MN12 Platform): These rear-wheel-drive Cougars came with a 3.8L V6 or a 4.6L V8 engine. Gasket sets for these are specific to the V-engine configuration.
- 1999-2002 (New Edge Platform): These front-wheel-drive Cougars were based on the Ford Contour and came with a 2.0L 4-cylinder or a 2.5L V6 Duratec engine. The gasket sets for these engines are completely different from the earlier generation.
Ordering Mistake: The most common mistake is ordering a gasket for the wrong engine. Always verify your Cougar's year and engine size before purchasing a new gasket set.
Symptoms of a Failing Valve Cover Gasket
A bad valve cover gasket is one of the most common oil leaks on an engine. The signs are usually easy to spot.
- Burning Oil Smell: This is the most common symptom. Leaking oil drips onto the hot exhaust manifold, where it burns off and creates a distinct, unpleasant smell that can sometimes get into the cabin.
- Visible Oil Leaks: You may see oil seepage around the top of the engine where the valve cover meets the cylinder head. This area will often be covered in dirt and grime that sticks to the oil.
- Low Engine Oil: A significant leak will cause your engine oil level to drop over time, requiring you to top it off frequently. If left unchecked, this can lead to serious engine damage.
- Oil in Spark Plug Wells: On many Cougar engines, the valve cover gasket set also includes seals for the spark plug tubes. When these fail, oil leaks into the wells, soaking the spark plugs and wires. 🎬 Watch a general guide on how to replace a valve cover gasket. This can cause engine misfires.
- Smoke from Engine Bay: In cases of a larger leak, you might see smoke coming from under the hood as the oil hits hot engine components.
Choosing the Right Aftermarket Gasket
For a part like a valve cover gasket, a high-quality aftermarket brand is often just as good, if not better, than the original OEM part. Many aftermarket brands use modern materials and designs to provide a better seal on older, imperfect surfaces.
Brand Tiers (Based on Owner Feedback and Reputation):
- Premium Tier (Fel-Pro, Victor Reinz): Fel-Pro is a highly trusted name in the aftermarket, known for making durable gaskets that fit well, often using improved materials like their PermaDry molded rubber. Victor Reinz is another top-tier brand, often considered OEM-equivalent or better, and praised for its quality materials.
- Standard Tier (Apex, Cometic, Edelbrock): These brands offer reliable, cost-effective solutions that meet or exceed OEM specifications. They are a solid choice for a daily driver and provide a good seal for most repairs.
Many gasket sets for V6 and V8 engines will include gaskets for both valve covers, spark plug tube seals, and bolt grommets. It is highly recommended to replace all of these components at the same time to ensure a complete, long-lasting repair.
Estimated Cost Comparison
| Part Type | Price Range |
|---|---|
| New Aftermarket Gasket Set | $17.24 - $94.68 |
| Shop Labor | $140 - $1000+ |

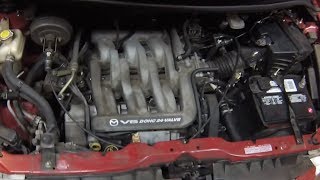

Note: Labor costs vary significantly based on your engine. The 2.0L 4-cylinder and older V8s are relatively straightforward. The V6 engines, especially the rear gasket on the 2.5L FWD model, require much more labor as the intake plenum often needs to be removed 🎬 Watch this walkthrough for the difficult 2.5L V6 gasket replacement. for access, drastically increasing the cost.
Frequently Asked Questions (FAQ)
Do I need to use RTV sealant with the new gasket?
In most cases, yes, but only in specific spots. A small dab of oil-resistant RTV sealant is typically required where the timing cover meets the cylinder head, or at any sharp corners, to prevent leaks. The installation instructions with your gasket set will specify where to apply it. Do not coat the entire gasket in sealant.
Is it hard to replace a valve cover gasket on a Mercury Cougar?
The difficulty depends entirely on your engine. On the 1990-1997 4.6L V8 and the 1999-2002 2.0L I4, the job is relatively easy 🎬 See how to replace the gasket on a 4-cylinder Duratec engine. for a DIY mechanic. On the 3.8L V6 and especially the 2.5L V6, replacing the rear valve cover gasket is much more difficult due to extremely tight access and the need to remove the upper intake manifold.
Should I choose a cork or rubber gasket?
For these models, you should use the material specified for your engine, which is almost always molded rubber. Modern molded rubber gaskets offer superior durability and sealing compared to older cork designs. Fel-Pro's PermaDry molded rubber is a popular and effective choice.
Were there any recalls for valve cover gasket leaks?
No, there have been no specific recalls issued by the NHTSA for leaking valve cover gaskets on the 1990-2002 Mercury Cougar. This issue is considered normal wear and tear. There was a TSB for the 2.5L Duratec engine related to a ticking noise that involved removing the valve cover, but it was not for a leak itself.
Helpful Videos
Technical Specifications
The primary specification is the gasket material, which is typically PermaDry molded rubber for most applications in this year range. The specific shape is determined by the engine (2.0L I4, 2.5L V6, 3.8L V6, 4.6L V8).
