Chevrolet Camaro Vehicle Speed Sensor: A Guide for 1990-2003 Models
Fix your Camaro's erratic speedometer and harsh shifting by understanding its Vehicle Speed Sensor.
- A faulty VSS most commonly causes an erratic speedometer and poor automatic transmission shifting.
- For reliability and longevity, ACDelco and Delphi are the most recommended aftermarket brands by owners.
- Replacement is a simple, low-cost DIY job that most owners can complete in under an hour with basic tools.
- The sensor is located on the tail shaft of the transmission and is held in by a single bolt.
Symptoms of a Failing Vehicle Speed Sensor
When the VSS on your Camaro starts to go bad, it can cause a number of problems that you'll notice while driving. Because the sensor's data is used by multiple systems, a failure can create a domino effect of issues. The most common signs are often related to the transmission and the speedometer.
🎬 Watch: How to test if your speed sensor has failedKey Failure Symptoms
- Erratic or Dead Speedometer: The speedometer needle may jump around, read incorrectly, or drop to zero while driving.
- Harsh or Incorrect Shifting (Automatic Transmission): Your automatic transmission may shift hard, delay shifts, or get stuck in one gear because it isn't receiving the correct speed information. This is one of the most serious symptoms.
- Cruise Control Not Working: The cruise control system will often disable itself if it can't get a reliable speed reading from the VSS.
- Check Engine Light: The powertrain control module (PCM) can trigger a Check Engine Light if it detects a faulty or missing signal from the speed sensor.
Choosing the Right Aftermarket VSS for Your Camaro
When replacing the VSS, you have a choice between OEM (Original Equipment Manufacturer) and various aftermarket brands. For a critical sensor like this, quality matters. Forum discussions among Camaro owners often highlight that while some budget parts work, they may not last as long as higher-quality options. ACDelco and Delphi are frequently recommended as top choices for reliability, as they are often the original suppliers to GM.
Brand Quality Tiers
- Tier 1 (OEM Quality): ACDelco and Delphi. These brands are widely considered to be the same or very close to the original factory part. Owners who want a fit-and-forget solution often choose one of these, even if they cost a bit more.
- Tier 2 (Quality Aftermarket): Brands like Standard Ignition (SMP) and Walker Products offer a good balance of quality and price. They are reputable manufacturers in the aftermarket space.
- Tier 3 (Economy): Brands like Dorman and other store brands offer a budget-friendly option. While they can restore function, some owners report shorter lifespans compared to OEM-quality parts. For a daily driver, especially with an automatic transmission, investing in a Tier 1 or Tier 2 brand is often recommended.
Pro Tip: The VSS is located on the tail shaft of the transmission. On 2WD models, it's typically on the passenger side, while on 4WD models, it's on the transfer case. When you remove the sensor, a small amount of transmission fluid may leak out, so have a drain pan ready.
🎬 Pro Tip: How to remove a stuck or broken sensorTypical Replacement Costs
Replacing a VSS is a relatively inexpensive repair. The part itself is affordable, and the labor is minimal since it's an easy-to-access part. You can expect to pay between $100 and $250 at a repair shop for the complete job.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $22.71 - $100.05 |
| Shop Labor | $50 - $125 |
| Total Estimated Cost (Shop) | $75 - $225 |
Frequently Asked Questions (FAQ)
Where is the Vehicle Speed Sensor located on a 1990-2003 Camaro?
For most of this generation, the VSS is located on the tail housing of the transmission, held in by a single 10mm bolt. On earlier models (around 1990), the sensor system could involve a buffer box located under the dash near the ECU, but the primary sensor is still on the transmission.
Can I replace the VSS myself?

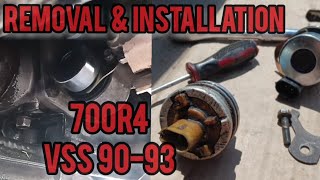

Yes, this is a very DIY-friendly job. It typically requires only basic hand tools like a wrench or socket to remove one bolt. You'll need to safely raise the vehicle, locate the sensor on the transmission, disconnect the electrical connector, remove the bolt, and swap the old sensor for the new one. 🎬 See this walkthrough for replacing a 700r4 speed sensor The entire process can usually be done in under an hour.
What happens if I don't replace a bad VSS?
While you can still drive the car, it's not recommended. You will have an unreliable or non-working speedometer, and if you have an automatic transmission, you risk damage from harsh and improper shifting. The lack of cruise control and a persistent Check Engine Light are other consequences.
Is there a difference between a Vehicle Speed Sensor and a Wheel Speed Sensor?
Yes. The Vehicle Speed Sensor (VSS) measures the speed of the transmission's output shaft to determine overall vehicle speed. A Wheel Speed Sensor, also called an ABS sensor, is located at each wheel and measures individual wheel rotation for the Anti-lock Braking System (ABS) and traction control. While they both measure speed, they serve different primary systems.
Are there any recalls for the 1990-2003 Camaro VSS?
Searches of the National Highway Traffic Safety Administration (NHTSA) database did not show any specific recalls for the Vehicle Speed Sensor itself on 1990-2003 Chevrolet Camaros. TSBs (Technical Service Bulletins) for this specific part on this model range were also not found, though some bulletins mention wheel speed sensors in relation to ABS or StabiliTrak noise.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10456091 24232083 24225896
Typically a 2-wire magnetic pulse generator located on the transmission tail shaft. The signal is converted by the ECU or a buffer module into a square wave pulse for the speedometer and cruise control.
