Mazda Protege Suspension Strut Bellows Guide (1990-2003)
Keep your Protege's suspension protected by understanding when and how to replace your strut bellows.
- A torn strut bellow on your Protege will cause the entire strut to fail prematurely by allowing dirt and moisture to damage the main seal.
- It is highly recommended to replace bellows in pairs (both front or both rear) and to inspect the strut for replacement at the same time.
- KYB is a well-regarded aftermarket brand for suspension components for the Protege, while Skyward is a more budget-oriented option.
- There are no specific recalls for the 1990-2003 Mazda Protege suspension struts or bellows.
Symptoms of a Failing Strut Bellows
The strut bellows itself doesn't have mechanical symptoms you can feel while driving. The signs of failure are visual and can lead to bigger problems if ignored.
- Visible Damage: The most obvious sign is seeing that the rubber or plastic boot is torn, cracked, brittle, or completely missing. Over time, the original bellows on a 1990-2003 Protege will simply decompose.
- Visible Debris on Strut Shaft: If you can see dirt, grime, or moisture on the shiny metal piston rod of the strut, it means the bellow is no longer doing its job.
- Oil Leaks from the Strut: A torn bellow allows contaminants to wear out the strut's main seal, causing hydraulic fluid to leak. A Mazda Technical Service Bulletin (TSB 02-001/13) notes that some oil film is normal, but if oil is actively running down the strut body past the spring seat, the strut has failed and needs replacement.
- Suspension Noises: While a bad bellow itself is silent, it leads to strut failure which can cause clunking or banging noises when going over bumps.
Why You Shouldn't Ignore a Torn Bellow
While you can technically drive with a torn strut bellow, it's not recommended. Exposing the strut shaft to the elements is a sure way to shorten the life of the entire strut assembly. A simple, inexpensive bellow replacement can prevent a much more costly strut replacement down the road.
Choosing the Right Aftermarket Bellows
For the 1990-2003 Mazda Protege, replacing the original bellows with a new aftermarket part is the standard repair. OEM parts for a vehicle this age can be difficult to find and may not offer a significant quality advantage over top-tier aftermarket options. The key is choosing a quality brand.
Brand Quality Tiers

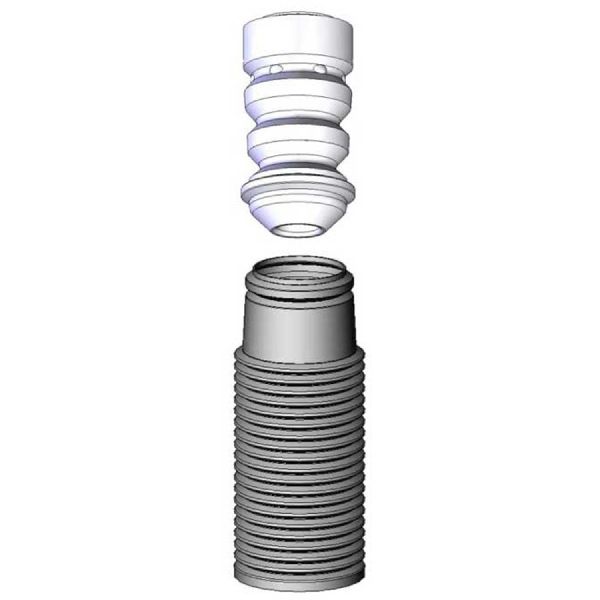

- Better Quality (Recommended): Brands like KYB are well-regarded in the aftermarket suspension world. They often produce parts that meet or exceed original equipment (OE) specifications and are a trusted choice for replacement components like bellows and complete struts. Many KYB kits include both the bellow and the internal bump stop.
- Standard Quality: Brands like TRW and SKP offer OE-grade replacement parts that are a reliable choice for a daily driver. They focus on providing a direct fit and restoring original function.
- Economy: The brand Skyward falls into a more budget-friendly category. While less information is available about their long-term durability compared to established brands like KYB, they can be a viable option for a cost-conscious repair. There is very little specific owner feedback available for this brand on the Mazda Protege.
Pro Tip: Replace in Pairs and Consider the Strut
It is always recommended to replace suspension components in pairs (both front bellows or both rear bellows) to ensure even performance and wear. Since replacing the bellows requires disassembling the strut assembly, inspect the strut itself. If your Protege has high mileage or the struts are original, it is often more time and cost-effective to replace the entire strut assembly (which includes a new bellow) rather than just the boot.
Cost to Replace Mazda Protege Strut Bellows
| Part | Estimated Cost |
|---|---|
| New Aftermarket Bellows (Single) | $19.97 - $41.89 |
| Shop Labor to Install (One Side) | $100 - $200 |
| Total (DIY) | $20 - $42 per side |
| Total (Installed at Shop) | $120 - $242 per side |
Note: Labor costs are estimates and can vary by location. Replacing the entire strut assembly will be more expensive but may be a better long-term value.
Frequently Asked Questions (FAQ)
Do I need a wheel alignment after replacing just the strut bellows?
No. If you are only replacing the bellows and reinstalling the original strut, an alignment is not typically necessary. However, if you replace the entire strut assembly or loosen any alignment-related bolts during the process, a wheel alignment is highly recommended.
Can I reuse my old bump stop with a new bellow?
It's not recommended. The bump stop is made of foam and degrades over time. Most quality aftermarket bellow kits, like those from KYB, include a new bump stop. Given the age of the 1990-2003 Protege, the original bump stop is likely worn out.
Is there a difference between front and rear bellows?
Yes, front and rear strut bellows are often different parts. They are designed specifically for the front or rear suspension geometry. Always ensure you are purchasing the correct part for the specific location on your Protege.
Were there any recalls for the 1990-2003 Protege suspension struts?
No, searches of the NHTSA database did not find any recalls specifically related to the suspension struts or bellows for the 1990-2003 Mazda Protege. Recalls found were for newer Mazda models and different suspension components.
Technical Specifications
Fitment is specific to front or rear position. Some aftermarket kits include the internal bump stop. Check for compatibility with your specific model year (1990-2003) and suspension type (e.g., with or without performance suspension for 2001-2003 models).
