Toyota Corolla Vehicle Speed Sensor Guide: 1990-2003 Models
Is your speedometer acting up or is your automatic transmission shifting hard? Your vehicle speed sensor might be the problem.
- A faulty VSS on a 1990-2003 Corolla will cause an erratic speedometer, poor automatic shifting, and a P0500 check engine code.
- Replacement is a simple DIY job, with the sensor located on the transmission and held by one bolt.
- For 1998-2002 models, if a new sensor doesn't fix the issue, the problem may be a failed part on the instrument cluster circuit board.
- Quality aftermarket brands like Delphi or Standard Ignition (SMP) offer a reliable and cost-effective alternative to expensive OEM parts.
Is Your Corolla's Speed Sensor Failing?
When a vehicle speed sensor (VSS) starts to go bad on a 1990-2003 Corolla, it can cause several noticeable problems. Because the sensor tells the car's main computer how fast you're moving, a bad signal can confuse other systems. The most common issue is a speedometer that doesn't work correctly or at all.
Common Symptoms of a Bad VSS:
🎬 Watch: 5 common symptoms of a failing speed sensor- Erratic or Dead Speedometer: The needle may jump around wildly, or just sit at zero mph even when you are moving.
- Harsh Automatic Shifting: If you have an automatic transmission, it might shift hard, late, or at the wrong times because it can't determine the correct vehicle speed.
- Check Engine Light: A faulty VSS will almost always turn on the check engine light and store a P0500 trouble code in the car's computer.
- Cruise Control Won't Work: The cruise control system needs a steady speed signal to function, so it will stop working if the sensor is bad.
A Special Note for 1998-2002 Corolla Owners
For the 8th generation Corolla, if you replace the speed sensor and still have a P0500 code with a dead speedometer, the problem may not be the sensor. A common failure point is a small blue ceramic resonator on the instrument cluster's circuit board. 🎬 See how to fix the P0500 code for just $1 This requires removing the cluster and soldering a new resonator, which is a more complex repair.
Choosing the Right Aftermarket Speed Sensor
For an older vehicle like the 1990-2003 Corolla, a quality aftermarket VSS is a smart and affordable choice. While an OEM (Original Equipment Manufacturer) part from Toyota is always an option, good aftermarket brands provide reliable performance for a fraction of the price. Here’s how to think about the brands available:

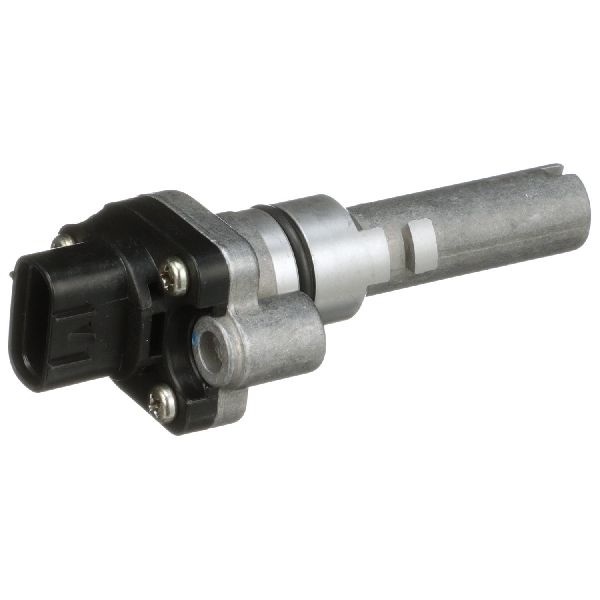

- Tier 1 (High-Quality Aftermarket): Brands like Delphi and Standard Ignition (SMP) have a strong reputation for producing reliable electronic parts that meet or exceed original specifications. They are often trusted by professional mechanics.

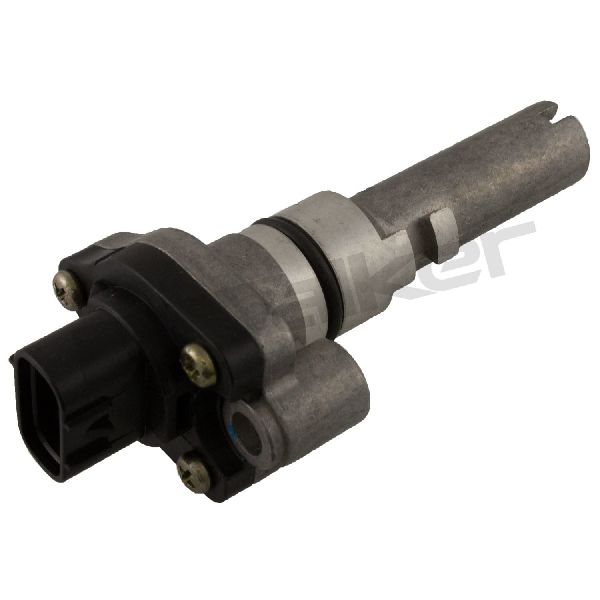

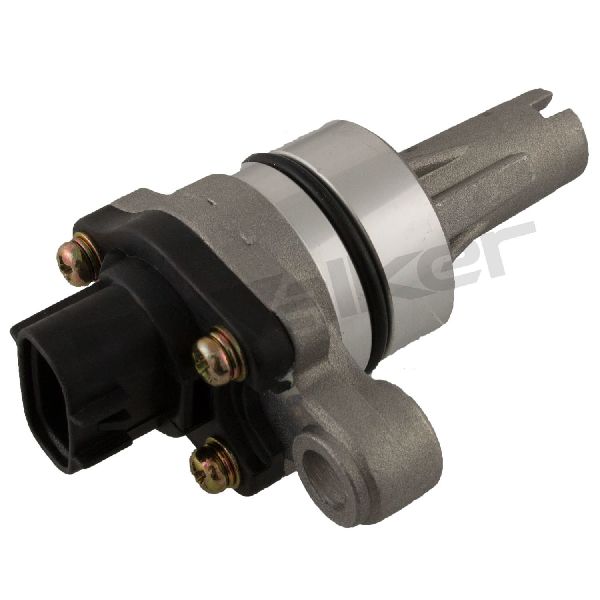

- Tier 2 (Standard Aftermarket): Brands such as Holstein, Walker Products, and Global Parts offer a balance of affordability and function. They are a good fit for a budget-conscious repair where a solid, functional part is needed.
- Tier 3 (Economy): URO Parts is generally considered a budget brand. While it can save you money, some users in forums report mixed results with their electronic components. For a critical sensor like the VSS, it may be worth spending a little more for a brand with a stronger track record.
Typical Costs for VSS Replacement
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $28 - $162 |
| New OEM (Toyota) | $160 - $260 |
| Shop Labor | $75 - $200 |
Pro Tip: Easy DIY Replacement
Replacing the VSS on a 1990-2003 Corolla is a job most DIYers can handle. The sensor is on top of the transmission, held by a single 10mm bolt. 🎬 Watch this step-by-step speed sensor installation walkthrough You may need to remove the air filter box for easier access. The old sensor can get stuck, so be prepared to wiggle and pull firmly to get it out. Always lubricate the O-ring on the new sensor with a little transmission fluid before installation.
Frequently Asked Questions
Where is the vehicle speed sensor located on a 1990-2003 Corolla?
The VSS is mounted on the top of the transaxle (transmission), usually toward the back of the engine bay near the firewall. It has an electrical connector and is held in place by one bolt.
What is the main trouble code for a bad speed sensor?
The most common Diagnostic Trouble Code (DTC) for a vehicle speed sensor malfunction is P0500. An OBD-II scanner can confirm this code if your check engine light is on.
Can I still drive my Corolla with a bad speed sensor?
Yes, but it's not recommended for long. Your speedometer will not work, and if you have an automatic transmission, the shifting can become harsh and unpredictable, which is a safety risk. It's best to repair it as soon as possible.
I replaced the VSS, but my speedometer still doesn't work. What now?
First, check the wiring and connector for damage. If those are fine, and you own a 1998-2002 model, the problem could be a failed component inside the instrument cluster itself, which is a known issue for these years. You should also ensure you purchased the correct part, as manual and automatic transmission sensors can differ.
Are there any recalls for the speed sensor on these Corollas?
No, there are no active recalls from Toyota or the NHTSA for the vehicle speed sensor on the 1990-2003 Toyota Corolla.
Helpful Videos
Technical Specifications
OEM Part Numbers: 83181-12040 83181-12020 83181-12050 83181-12060
Mounts on the transaxle. Gear-driven design. Features a 3-pin male blade electrical connector.
