1990-2005 Buick Century Transmission Output Speed Sensor Replacement Guide
Fix your Century's erratic shifting and incorrect speedometer by understanding this critical sensor.
- A bad output speed sensor is a very common cause of harsh shifting and speedometer failure on the 1990-2005 Buick Century.
- Look for trouble code P0722, which directly points to a problem with the output speed sensor circuit.
- For a reliable repair, choose a sensor from ACDelco (GM Original Equipment or Gold) or Standard Ignition (SMP).
- Before replacing the sensor, always check its electrical connector and wiring for damage, as this can cause the same symptoms.
Is Your Buick Century Shifting Hard or is the Speedometer Acting Up?
If your 1990-2005 Buick Century is experiencing sudden harsh shifts, a bouncing speedometer needle, or the Check Engine Light is on, a failing automatic transmission output shaft speed sensor is a likely culprit. This sensor is a key part of the transmission system, and when it fails, it can make your car difficult and unsafe to drive. This article will help you understand the symptoms, choose the right replacement part, and know what to expect for costs.
Symptoms of a Failing Output Speed Sensor
A bad output speed sensor on a Buick Century will cause noticeable problems. Here’s what to look for:
- Harsh & Erratic Shifting: The most common sign is the transmission slamming into gear, delaying shifts, or shifting at the wrong times. This happens because the car's computer is guessing the vehicle's speed.
- Speedometer Not Working: The speedometer may stop working, read 0 MPH while moving, or fluctuate wildly.
- Check Engine Light: A failing sensor will trigger the Check Engine Light. A common trouble code is P0722 (Output Speed Sensor Circuit No Signal).
- Cruise Control Failure: The cruise control system needs a steady speed signal to work, so it will likely become inoperative.
- Limp Mode: The transmission may get stuck in a single gear (like 2nd or 3rd) to protect itself from damage.
Wiring Can Be the Problem
Sometimes the sensor itself is fine, but the wiring or connector going to it is damaged, corroded, or has come loose. One owner found their sensor was simply unplugged. Always inspect the wiring harness for visible damage before replacing the sensor itself.
Choosing the Right Aftermarket Sensor: Brand Quality Matters
For a critical electronic part like a speed sensor, brand quality is important. Cheap, no-name sensors are known to fail quickly or be dead on arrival. Sticking with reputable brands is your best bet for a lasting repair.
- ACDelco: As the original parts supplier for GM, ACDelco is the benchmark. However, they have different product lines. ACDelco GM Original Equipment is the exact same part your car was built with. ACDelco Gold parts are their premium aftermarket line, offering a high-quality alternative. For sensors, sticking to these higher tiers is recommended over their budget lines.
- Standard Ignition (SMP): Standard Motor Products is a well-respected aftermarket manufacturer that produces reliable sensors. Many professional mechanics trust and use Standard parts as a cost-effective alternative to OEM without sacrificing quality.
Pro-Tip: While saving money is tempting, avoid the cheapest unbranded sensors. The potential for premature failure means you might end up doing the job twice, costing you more in the long run.
Cost to Replace a Buick Century Output Speed Sensor
The total cost depends on the part you choose and whether you do the work yourself or hire a shop.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Sensor (Standard, ACDelco Gold) | $37 - $155 |
| New OEM Sensor (ACDelco GM Original Equipment) | $100 - $200+ |
| Shop Labor | $100 - $300 |
| Total Professional Replacement | $137 - $455+ |
Frequently Asked Questions
Where is the output speed sensor located on a 1990-2005 Buick Century?
The output speed sensor (VSS) is located on the automatic transaxle. It is typically found on the top or side of the transmission case, often near where the passenger-side CV axle enters the transmission. Access may require removing the air filter box or the front passenger wheel.
Can I replace this sensor myself?
Yes, this is a feasible DIY job for someone with moderate mechanical experience. The sensor is usually held in by a single bolt and has one electrical connector. The main challenge is often accessing the sensor, which can be in a tight space. Ensure the engine is cool and you have disconnected the battery before starting.
What happens if I don't replace a bad output speed sensor?
Continuing to drive with a bad sensor is not recommended. The harsh shifting can cause long-term, expensive damage to internal transmission components like clutches and gears. You will also have an unreliable speedometer and may get stuck in limp mode, making the car unpredictable and unsafe to drive.
Is the Input Speed Sensor the same as the Output Speed Sensor?
No, they are two different sensors. The Buick Century's transmission uses both an Input Shaft Speed (ISS) sensor and an Output Shaft Speed (OSS) sensor. The computer compares the signals from both to ensure the transmission is in the correct gear. While they may look similar, they have different functions and locations and are not interchangeable.

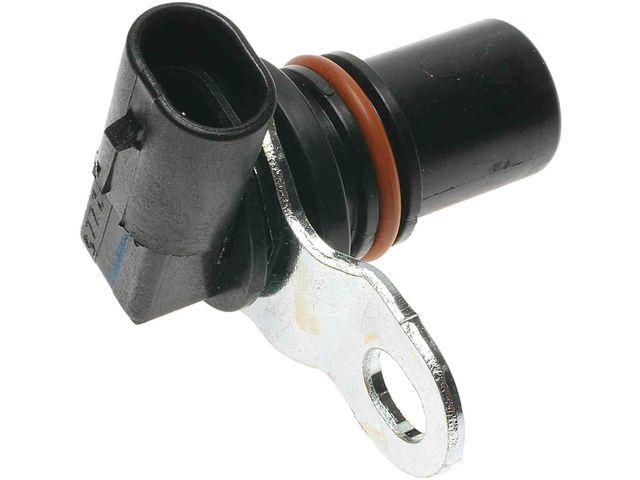

Technical Specifications
OEM Part Numbers: 10456568 24239526 8665903 10456509
The sensor is typically a magnetic pickup that generates a signal as a toothed reluctor wheel on the transmission output shaft spins past it. It is located externally on the transmission case for easier service.
