Chevrolet Astro Universal Joint Guide for 1990-2005 Models
Hearing a clunk or feeling a vibration? Your Astro's U-joints might be the culprit.
- A clunk when shifting or a vibration at speed are serious symptoms that require immediate inspection.
- For longevity and heavy use, choose premium brands like Dana Spicer or Moog.
- Greasable U-joints can extend service life, but only if you commit to greasing them regularly.
- It is strongly recommended to replace all U-joints on a driveshaft at the same time for balanced performance.
Is Your Astro's U-Joint Failing?
A worn-out U-joint will give you clear warning signs. Because they are under constant stress and often neglected, they have a high failure rate. Ignoring these symptoms can lead to more significant damage or a complete driveshaft separation.
Common Failure Symptoms
- Clunking Noise: A distinct "clunk" or ringing sound when you shift from Park into Drive or Reverse is a classic sign of a bad U-joint. This is caused by excessive play in the joint.
- Vibrations: A vibration that you can feel throughout the van, especially at highway speeds (above 45-60 mph), often points to a failing U-joint. This can sometimes be confused with unbalanced tires, but U-joint vibration is often related to acceleration and deceleration.

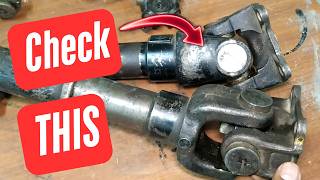

- Squeaking or Chirping: A rhythmic squeaking that changes with your speed, usually heard at lower speeds (under 10 mph), indicates the U-joint is dry and has lost its internal grease. 🎬 Watch this video to see and hear these failure symptoms.
Choosing the Right Aftermarket U-Joint
When replacing U-joints on your 1990-2005 Astro, you have several good aftermarket options. The original parts were likely made by a major supplier like Dana Spicer and were non-greasable, meaning they were lubricated for life. Many aftermarket replacements offer a grease fitting (zerk), which allows for periodic maintenance to flush out contaminants and extend the part's life.
Brand Quality Tiers
Not all aftermarket parts are created equal. Here’s a breakdown of the brands available for your Astro, sorted by quality and reputation among mechanics and owners.
Tier 1: Premium / Heavy-Duty
- Dana Spicer: Often the original equipment manufacturer (OEM), Spicer is considered the highest quality replacement available. They are known for durability and are a top choice for owners who tow or put their van under heavy use.
- Moog (Super Strength / Premium): Moog is a highly respected aftermarket brand. Their "Super Strength" and "Premium" lines are engineered to be as good as or better than the original part, often featuring improved seals and greasable designs for longer life.
- SKF: Known for high-quality bearings, SKF offers durable U-joints, sometimes under a "Brute Force" line, that are a reliable choice for a long-lasting repair.
Tier 2: OEM-Quality / Standard
- ACDelco (Professional Series): As GM's official parts arm, the ACDelco Professional line is designed to meet original factory specifications. These are a solid, reliable choice for a standard replacement.
- Yukon Gear & Axle: While known for performance and off-road parts, Yukon offers high-quality U-joints and hardware that are more than suitable for a daily-driven Astro.
Tier 3: Economy
- GMB: GMB is a well-known manufacturer that produces reliable, standard-grade parts. They are a good option if you're on a tight budget but still want a dependable part for light-duty use.
- ACDelco (Advantage Series): This is ACDelco's budget-friendly line. It offers a lower-cost alternative but may not have the same longevity as the Professional series.
Pro Tip: Greasable vs. Non-Greasable
Choosing between a greasable and a non-greasable (sealed) U-joint is a matter of preference. Greasable joints can last longer if you perform regular maintenance by adding grease every oil change. This pushes out old grease, water, and dirt. Non-greasable joints often have better seals from the factory but have a finite lifespan. If you don't plan on doing regular maintenance, a high-quality, non-greasable joint from a brand like Spicer or SKF is an excellent choice.
How Much Does a U-Joint Replacement Cost?
The cost depends on the brand you choose and whether you do the work yourself. The parts themselves are relatively inexpensive. A professional mechanic will typically charge for 1-2 hours of labor per driveshaft.
| Item | Estimated Cost |
|---|---|
| Aftermarket U-Joint (Single) | $19 - $60 |
| Shop Labor (per driveshaft) | $120 - $250 |
| Total Professional Replacement | $200 - $450 |
Frequently Asked Questions
How many U-joints does my Chevrolet Astro have?
A standard Rear-Wheel Drive (RWD) Astro has two U-joints on the rear driveshaft. All-Wheel Drive (AWD) models have an additional front driveshaft, which also has U-joints, bringing the total to four or more depending on the specific driveshaft configuration.
Should I replace all the U-joints at once?
It is highly recommended. If one U-joint has failed due to age and mileage, the others are likely near the end of their service life as well. Replacing them all at the same time saves you from having to do the same job again in the near future and ensures the entire driveshaft is balanced and smooth.
Can I replace a U-joint myself?
Yes, this is a DIY-feasible job for someone with mechanical experience and the right tools. You will need to safely raise the vehicle, remove the driveshaft, and use a large bench vise, a ball joint press, or a hammer and sockets to press the old joints out and the new ones in. If you are not comfortable with this process, it is best to have a professional mechanic do the work.
What happens if a U-joint fails completely?
A complete failure is dangerous. The driveshaft can disconnect from the transmission or differential, causing a total loss of power. At speed, the loose driveshaft can swing violently, causing significant damage to the exhaust, fuel tank, brake lines, and underside of your van before falling onto the road.

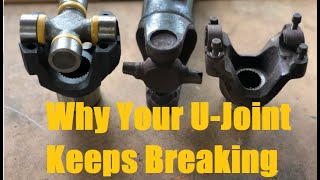

🎬 Learn why U-joints break and how to prevent complete failure.Were there any recalls for Astro U-joints?
Searches of the National Highway Traffic Safety Administration (NHTSA) database did not show any specific recalls or widespread safety campaigns for universal joints on the 1990-2005 Chevrolet Astro. Most failures are due to normal wear and tear over time.
Helpful Videos
Technical Specifications
OEM Part Numbers: 23104840 89059111 26047645 15617322 26021107
Chevrolet Astro vans can have different U-joint sizes depending on the year, drivetrain (RWD vs AWD), and whether it has an aluminum or steel driveshaft. It is critical to measure your existing U-joints or use a VIN lookup to ensure you purchase the correct replacement parts. Some models may have different sized U-joints on the front and rear of the same driveshaft.
