GMC Safari Steering Drag Link: A Guide for 1990-2005 Models
If your Safari's steering feels loose or wanders, the drag link could be the culprit.
- A worn drag link on a 1990-2005 GMC Safari causes loose steering, wandering, and uneven tire wear.
- Verify if your van is RWD or AWD before ordering, as the parts can be different.
- Premium aftermarket brands like Moog or Delphi often offer upgraded, greaseable designs for longer life.
- A professional wheel alignment is mandatory after replacing the drag link to prevent unsafe handling and tire damage.
Is Your Safari's Steering Feeling Sloppy?
The 1990-2005 GMC Safari and its twin, the Chevy Astro, are known for being workhorses. But after years of service, the steering components can wear out. A common wear item is the steering drag link, also known as a center link. When the joints on the ends of this link become worn, it creates looseness or "play" in the steering system. This means you can move the steering wheel back and forth slightly without the wheels actually turning. This guide will help you understand the symptoms of a bad drag link and how to choose the right aftermarket replacement.
Symptoms of a Worn Drag Link
A failing drag link will give you clear signs that something is wrong with your steering. You might notice one or more of these issues:
- Loose Steering: This is the most common sign. The steering wheel feels vague, sloppy, or has excessive play.
- Steering Wander: Your van may drift to one side, forcing you to constantly make small corrections to drive straight.
- Uneven Tire Wear: Worn steering parts can throw off your alignment, causing the edges of your front tires to wear down faster than the rest.
- Vibrations: You might feel a vibration or shudder through the steering wheel, especially as you drive faster.
- Popping or Clunking Noises: Hearing noises from the front of the van when you turn the wheel can point to worn-out joints on the drag link.
Check Drivetrain Before Ordering
The GMC Safari was available in Rear-Wheel Drive (RWD) and All-Wheel Drive (AWD). The steering drag link can be different between these two systems. Always verify you are ordering the correct part for your specific van to avoid installation problems.

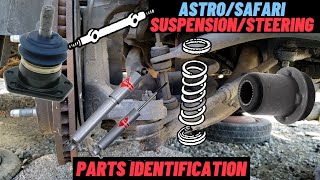

🎬 See this video to identify RWD steering and suspension components.Choosing the Right Aftermarket Drag Link
For a vehicle like the 1990-2005 Safari, original OEM parts can be hard to find and expensive. The aftermarket offers a wide range of options that meet or exceed original quality. Here’s a breakdown of common brand tiers:
- Premium Brands (Moog, Delphi): These brands are well-respected and often chosen by professional mechanics. Moog, in particular, is known for its "Problem Solver" line which often includes improvements over the original design, such as greaseable joints for longer life. Delphi is an original equipment manufacturer for many car brands, so their quality is typically very high. These are an excellent choice for durability.
- Mid-Grade Brands (Mevotech): Mevotech offers a good balance of quality and price. They often have multiple product lines, like the higher-end "TTX" series, giving you options depending on your budget and needs. They are a solid choice for a daily-driven vehicle.
- Economy Brands (Dorman, QuickSteer): These brands provide a cost-effective solution to get your van back on the road. While they will restore proper steering function, they may not have the same long-term durability or advanced features as the premium brands.
Pro Tip: Greaseable is Better
Many aftermarket drag links come with grease fittings (also called zerks). This is an upgrade over many non-serviceable factory parts. Make sure to pump them full of quality chassis grease after installation and at every oil change. This simple step pushes out dirt and water, dramatically extending the life of the part.
Known Issues, Recalls, and TSBs
Searches for official recalls or Technical Service Bulletins (TSBs) from GM or the NHTSA did not show any specific issues for the drag link on the 1990-2005 GMC Safari. However, it is a widely known issue in owner forums and mechanic communities that the entire steering linkage on these vans, including the drag link and idler arms, is a common wear point that leads to loose steering over time. This is generally considered normal wear and tear for the age and design of the vehicle.
Cost to Replace a GMC Safari Drag Link
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Drag Link | $39 - $124 |
| Shop Labor | $150 - $300 |
| Total Professional Replacement | $189 - $424 |
| Required Wheel Alignment | $80 - $150 |
Costs are estimates and can vary based on location, part brand, and shop labor rates. A wheel alignment is required after replacement.
Frequently Asked Questions
Do I need an alignment after replacing the drag link?
Yes, absolutely. Replacing the drag link will change your vehicle's alignment. You must get a professional front-end alignment done immediately after the repair to ensure your van drives straight, handles safely, and doesn't cause rapid tire wear.
Can I replace the drag link myself?
Yes, this is a DIY-feasible job for someone with mechanical experience. It requires safely lifting and supporting the front of the vehicle. You will also need special tools like a pitman arm puller or a pickle fork to separate the old joints, which can be stuck on tight. If you are not comfortable with these steps, it's best to leave it to a professional mechanic.
Should I replace other parts at the same time?
It's a very good idea. The drag link is connected to the idler arms and pitman arm. If the drag link is worn out, these other parts are likely worn as well. Many owners replace the drag link, both idler arms, and the inner and outer tie rod ends at the same time to completely restore the steering and only pay for one alignment.
🎬 Watch: Full walkthrough of a front steering and suspension kit replacement.What's the difference between a drag link and a center link?
For the GMC Safari, the terms are often used interchangeably. Both refer to the central steering rod that connects the pitman arm to the rest of the linkage.
Helpful Videos
Technical Specifications
The steering system on the 1990-2005 GMC Safari is a recirculating ball type, which utilizes a steering box, pitman arm, and a drag link/center link design, as opposed to a rack and pinion system. Aftermarket replacements are available for both RWD and AWD models, with some featuring greaseable joints for extended service life.
