Infiniti Q45 (1990-2006) Ignition Knock Sensor: A Complete Guide
A bad knock sensor is robbing your Q45's V8 of power; here's how to choose the right replacement part.
- Replacement is a very difficult, labor-intensive job because the sensors are located under the intake manifold.
- Always replace the knock sensor sub-harness at the same time as the sensors; the harness is a common failure point due to engine heat.
- Choose a high-quality OEM-tier brand like Hitachi or NGK to avoid repeating the expensive labor.
- A bad knock sensor forces the engine into a 'safe mode' with reduced power and poor fuel economy.
Symptoms of a Failing Knock Sensor in a Q45
When a knock sensor fails on the Q45, the ECU can no longer detect detonation. To protect the engine, it defaults to a very conservative "safe mode" timing map. This leads to several noticeable symptoms.
- Check Engine Light: This is the most common sign. A failed knock sensor circuit will trigger Diagnostic Trouble Code (DTC) P0325. 🎬 Watch this video to understand the P0325 code and diagnosis.
- Poor Acceleration: The engine will feel sluggish and unresponsive because the ignition timing is significantly retarded by the ECU's safe mode.
- Reduced Fuel Economy: With the engine running inefficiently, you will notice a drop in your miles per gallon.
- Engine Pinging (Rare): In some cases, you might hear a metallic pinging or knocking sound during acceleration, though the ECU's safe mode usually prevents this.
Critical Pro Tip: Always Replace the Harness

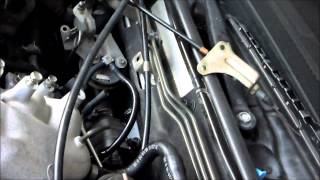

For all 1990-2006 Q45 models (VH45DE, VH41DE, and VK45DE engines), the knock sensor(s) are located in the hot engine valley, underneath the entire intake manifold assembly. The extreme heat makes the sensor's wiring harness brittle over time, causing cracks and connection failures. In many cases, the harness fails before the sensor itself. Because replacement requires hours of labor to remove the intake, it is critical to replace the knock sensor sub-harness 🎬 See a walkthrough of the upper plenum and sensor replacement. at the same time as the sensor(s). Failing to do so often means you'll be doing the entire job again when the old harness inevitably fails.
Choosing the Right Aftermarket Knock Sensor
The labor involved in this repair is extensive and expensive. Choosing a low-quality sensor to save a few dollars is a major risk that could force you to pay for the same difficult job twice. Here is a breakdown of available brands to help you make a reliable choice.
Tier 1: OEM Supplier Quality
These brands are original equipment manufacturers for Nissan and other Japanese automakers. They are the safest choice for a part you only want to replace once.
- Hitachi: Hitachi is the original equipment supplier for Nissan/Infiniti knock sensors. Choosing a Hitachi sensor is the closest you can get to buying the part from an Infiniti dealer, ensuring perfect fit and function.
- NGK (NTK): NTK is the sensor division of NGK. They are a top-tier OEM supplier known for excellent quality electronics that rival factory parts.
Tier 2: Reputable Aftermarket
These brands have a strong reputation in the aftermarket. They often source their parts from various manufacturers, sometimes even re-boxing the OEM part.
- Beck Arnley: This brand specializes in sourcing parts for foreign nameplates and has a reputation for often providing the OE part in their own box. While quality is generally high, it can vary depending on their supplier for a specific batch.
- Standard Ignition (Standard Motor Products): SMP is a long-standing aftermarket manufacturer with a generally solid reputation. Some of their parts are re-boxed OEM components.
Tier 3: Budget Options (Use With Caution)
While the price is tempting, these brands have more inconsistent reviews. Given the high labor cost of a Q45 knock sensor replacement, using budget parts is not recommended.
- Delphi: While a major OEM for domestic brands, reviews for Delphi knock sensors on Japanese vehicles are mixed. Some users report success, while others experience early failures.
- Other Value Brands: Brands like Walker, Facet, and other private labels are the most affordable but carry the highest risk of premature failure. Avoid these for a labor-intensive job like this one.
Cost of Replacing an Infiniti Q45 Knock Sensor
The cost is dominated by labor due to the sensor's location under the intake manifold.
| Part/Service | Estimated Cost |
|---|---|
| Shop Labor | $430 - $630 |
| New OEM Sensor (Each) | $205 - $225 |
| New Aftermarket Sensor (Each) | $36 - $177 |
| Total Professional Replacement | $1050 - $1300+ |
Frequently Asked Questions
Why is this replacement so expensive for the Q45?
The high cost is due to the sensor's location. On the Q45's V8 engines, the two knock sensors are in the valley between the cylinder heads, buried under the upper and lower intake manifolds. A mechanic needs several hours to remove these components just to access the sensors, making labor the largest part of the bill.
How many knock sensors does my 1990-2006 Q45 have?
All V8 engines in the 1990-2006 Infiniti Q45 have two knock sensors, one for each cylinder bank. It is highly recommended to replace both sensors and the connecting sub-harness at the same time.
Can I replace the knock sensor myself?
This is not a job for a beginner. It requires significant mechanical experience, proper tools, and the ability to carefully disassemble and reassemble the top half of the engine, including fuel rails and intake manifolds. For most owners, this is a job best left to a professional mechanic.

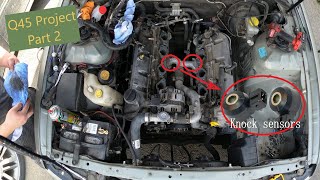

🎬 Watch a project car video showing the intensive replacement process.What happens if I ignore a P0325 code?
Your car will continue to run, but the ECU will keep the engine in a low-power, inefficient safe mode. This means you'll have poor performance and waste fuel. While the safe mode is designed to prevent immediate catastrophic damage, it's not a permanent solution and the underlying issue should be fixed.
Helpful Videos
Technical Specifications
OEM Part Numbers: 22060-30P00 22060-2Y000 22060-2A000
Location: Engine valley, under intake manifold. Quantity: 2 required.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
