Choosing the Right Transmission Filter Kit for Your 1990-2007 Mack RD
Keep your heavy-duty Mack RD shifting reliably by selecting the correct transmission filter kit for your specific gearbox.
- You MUST identify your specific transmission model (e.g., Allison, Mack T200, Eaton) before purchasing a kit.
- Symptoms like rough shifting, slipping gears, or whining noises point to a needed service.
- Quality aftermarket brands like Wix and ATP are reliable and cost-effective choices for this truck.
- Check for signs of coolant contamination in Allison automatics, a known issue for this vehicle series.
Before You Buy: Identify Your Transmission
The most important step in buying a transmission filter for a 1990-2007 Mack RD is identifying which transmission is in your truck. Over its long production run, the RD was equipped with several different gearboxes from manufacturers like Mack, Allison, and Eaton. A kit for a Mack T200 manual transmission is completely different from a kit for an Allison automatic. Check the ID tag on the transmission housing itself before ordering any parts.
Common Ordering Mistake
Do not order a transmission filter kit based only on the year and model of your Mack RD. You must confirm the make and model of the transmission installed in your specific truck to get the correct parts.
Symptoms of a Clogged Transmission Filter
A dirty or clogged filter restricts fluid flow, which can starve the transmission of the lubrication and hydraulic pressure it needs to function. Look out for these common signs:
- Rough or Delayed Shifting: The truck may hesitate or jerk when changing gears.
- Slipping Gears: The transmission may unexpectedly pop out of gear or struggle to stay engaged under load.
- Whining or Grinding Noises: Unusual noises from the transmission area, especially during shifts, can indicate fluid starvation.
- Burning Smell: A burnt toast odor suggests the transmission fluid is overheating, a condition a clogged filter can cause.
- Fluid Leaks: While not a direct symptom of a bad filter, low fluid levels from a leak will put extra strain on the filter and transmission.
Choosing the Right Aftermarket Brand
For the Mack RD, OEM parts can be hard to find and expensive. Aftermarket brands offer a reliable and cost-effective alternative. The key is to choose a quality brand that meets or exceeds original specifications.
Brand Quality Tiers
- Good Tier (Wix, ATP): Both Wix and ATP are well-regarded brands in the aftermarket community. Wix is known for its consistent quality in filtration products. ATP is also a trusted name, and some mechanics prefer their kits for features like their "third hand" pan gaskets, which have undersized holes to hold bolts in place during installation. You can confidently use either brand for your Mack RD.
Pro Tip: A transmission filter failure is almost always due to neglect, not a defect in the filter itself. Regular service is more important than stressing over minor differences between reputable aftermarket brands.
Known Issues for the 1990-2007 Mack RD
While no recalls exist for the transmission filter itself, Mack has issued service bulletins (TSBs) for related problems:
- SB329006 - Coolant Contamination: This bulletin applies to trucks with Allison automatic transmissions. It warns of potential for engine coolant to contaminate the transmission fluid. Coolant is extremely damaging to transmission clutches and seals, and if this occurs, the entire system, including the filter and fluid, must be replaced after the root cause is fixed.
- SB329005 - Oil Cooler Brackets: This TSB points to revised mounting brackets for the transmission oil cooler on RD models. A failing oil cooler or lines can lead to leaks and fluid contamination, underscoring the importance of inspecting the entire system during a filter change.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Kit | $12.56 - $132.96 |
| Shop Labor | $150 - $300 |
Frequently Asked Questions (FAQ)
How often should I change the transmission filter on my Mack RD?
Service intervals depend heavily on the transmission model and how the truck is used. For heavy-haul applications, a fluid and filter change every 50,000 to 100,000 miles is a good practice. For trucks with Allison automatics, follow the manufacturer's specific fluid and filter change schedule. Always consult your transmission's service manual for the correct interval.
Does my manual transmission have a filter?

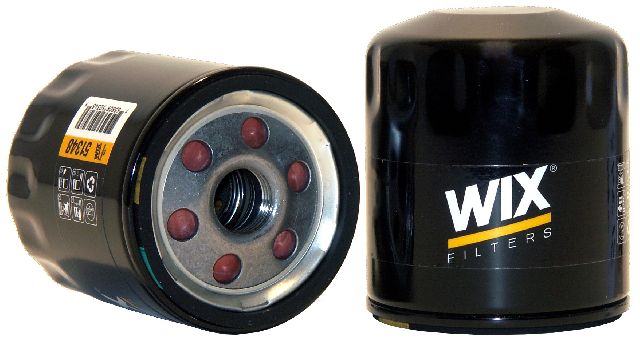

It depends on the model. Some Mack and Eaton manual transmissions use an external, spin-on oil filter similar to an engine oil filter. Others may only have an internal screen that is not typically serviced. If your manual transmission has an external filter, it should be changed with every fluid service.
What is included in a transmission filter kit?
This varies by application. A kit for an automatic transmission typically includes the main filter(s), a pan gasket, and any necessary O-rings or seals. A kit for a manual transmission with a spin-on filter may just be the filter itself, sometimes with a new gasket for the housing.
Can I change the transmission filter myself?
For most mechanically inclined owners, this is a DIY-feasible job. It involves draining the fluid, removing the transmission pan or filter housing, replacing the filter and gasket, and refilling with the correct type and amount of fluid. It can be messy, and ensuring the pan seals correctly to prevent leaks is critical.
Technical Specifications
OEM Part Numbers: 22038908 (Mack) 29540493 (Allison) 4304827 (Eaton Fuller)
Kit contents vary by transmission. May include pan gasket, O-rings, spin-on filters, or cartridge filters. Always verify against the transmission model.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
