Chevrolet Camaro Windshield Washer Pump: A Guide for 1990-2015 Models
If your washer pump is dead, here’s what you need to know to get your Camaro’s windshield clean again.
- Before replacing the pump, always check for simple fixes like a blown fuse, low fluid, or a kinked hose.
- Replacement on 2010-2015 models is more involved, requiring wheel and fender liner removal.
- Aftermarket pumps from brands like Trico are a cost-effective and reliable alternative to more expensive OEM parts.
- If you hear no sound from the pump, the issue is electrical; if you hear a hum but get no fluid, the pump or lines are the likely culprit.
Is Your Camaro's Windshield Washer Pump Failing?
A faulty windshield washer pump on a Chevrolet Camaro is a common issue, but the symptoms can sometimes be misleading. Before you replace the pump, it's important to know what to look for. The most frequent complaint is hearing the pump motor whir but seeing no fluid spray out. This could be the pump itself, but it could also be something simpler.
Common Failure Symptoms
- Pump Runs, No Fluid: You hear a humming sound when you activate the washers, but nothing comes out. This often points to a worn-out pump impeller, clogged lines, or even a kinked hose. On 5th Gen (2010-2015) Camaros, installing an aftermarket cold air intake can sometimes pinch the washer fluid hose.
- No Sound, No Fluid: If you hear nothing at all, the problem is likely electrical. It could be a blown fuse, a bad connection, or a completely dead pump motor. On some later models, the washer pump relay is part of the main fuse box and cannot be replaced separately, requiring a whole new fuse box if it fails.
- Weak or Uneven Spray: If the fluid just trickles out or doesn't reach the whole windshield, the pump may be losing pressure due to age. It can also be caused by cracked or leaking washer fluid lines, a common issue on older 4th Gen models.
Check Fuses and Hoses First
🎬 Watch this guide to diagnosing your washer system's electrical and fluid issues.Always check the simple things before buying parts. Make sure the washer fluid reservoir is full. Check the fuse for the washer system. Inspect the fluid lines for obvious cracks, disconnects, or kinks, especially in the engine bay and near the hood hinges.
Choosing a Replacement Pump: OEM vs. Aftermarket
For a part like the windshield washer pump, an aftermarket replacement is a reliable and cost-effective choice. The original equipment (OEM) pump from GM and an aftermarket pump from a quality brand like Trico are often made in similar factories. The main difference is that the OEM part has gone through GM's specific quality checks and carries the dealer price tag. Given the simplicity of the part, an aftermarket pump offers the same performance for a lower price.
Trico Aftermarket Pumps: Trico is a well-known brand that offers direct-fit replacement washer pumps for the Camaro. They are designed for easy installation without needing any special adjustments and have positive reviews for fit and function. For a straightforward repair, a Trico pump is a solid choice.
Installation Differences by Camaro Generation
The replacement process varies depending on your Camaro's year.

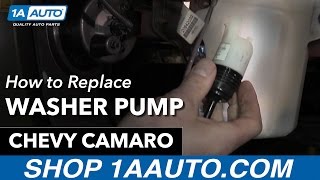

- 5th Generation (2010-2015): The pump is located on the washer reservoir, which is tucked inside the front passenger-side fender well. Access requires jacking up the vehicle, removing the front wheel, and taking out the plastic fender liner. Once you have access, the pump simply pulls out of a rubber grommet on the reservoir. 🎬 See a step-by-step walkthrough for replacing the pump on 5th Gen models.
- 4th Generation (1993-2002): On these models, the pump is also on the reservoir but is often accessible from under the hood without removing the wheel. This makes the replacement much faster and easier.
- 3rd Generation (1990-1992): These earlier models use a different design where the pump is integrated with the windshield wiper motor assembly on the firewall. 🎬 Check out this tech tip for fixing 3rd Gen wiper and pump assemblies.
Cost of Replacing a Camaro Windshield Washer Pump
| Part Type | Part Cost | Shop Labor Cost | Total Estimated Cost |
|---|---|---|---|
| New Aftermarket (Trico) | $29.34 | $100 - $150 | $129 - $179 |
| New OEM | $45 - $75 | $100 - $150 | $145 - $225 |
| DIY (Aftermarket Part) | $29.34 | $0 | $29.34 |
Cost estimates are approximate and can vary based on location and vehicle generation. Labor for 5th Gen models may be higher due to increased complexity.
Frequently Asked Questions
Why did my pump stop working after I installed a cold air intake?
This is a very common issue on 2010-2015 Camaros. The routing of the new intake often interferes with the washer fluid hose, pinching it when the hood is closed. Check the hose's path from the reservoir to the nozzles for any kinks or tight spots.
I replaced the pump and it still doesn't work. What now?
If a new pump doesn't solve the problem, re-check the fuse. If the fuse is good, the issue could be a clogged line, a bad electrical connector, or a faulty switch. On some later models, a failed integrated relay in the fuse box could be the cause, which is a more complex repair.
Can I use a universal washer pump?
While universal pumps exist, it is highly recommended to use a direct-fit aftermarket pump like the Trico model. This ensures the electrical connector and mounting style match your Camaro perfectly, avoiding the need for custom wiring or modifications.
How do I clear a clogged washer nozzle?
If you suspect a clog, you can disconnect the hose from the nozzle and try to activate the pump. If fluid sprays freely from the hose, the nozzle is clogged. You can often clear it by gently poking a small pin or a thin guitar string into the nozzle opening to break up the debris.
Helpful Videos
Technical Specifications
OEM Part Numbers: 22127653 19244681
Direct-fit electric pump, typically mounts to the washer fluid reservoir via a rubber grommet. Connector style and pump design vary by generation (1990-1992, 1993-2002, 2010-2015).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
