1991 GMC Syclone Engine Oil Pressure Switch & Sender Guide
An erratic or dead oil pressure gauge on your Syclone is a common issue; here’s what you need to know before buying a new part.
- An erratic, zero, or maxed-out oil pressure gauge is the most common symptom of a failed sending unit on a Syclone.
- Always verify the engine oil level and listen for unusual noises before assuming the sensor is the only problem.
- The sensor is located in a tight spot at the back of the engine near the distributor; a special socket is recommended for replacement.
- Aftermarket brands like Standard Motor Products (PS236) are a reliable and common replacement for the discontinued OEM part.
Is Your Syclone's Oil Gauge Acting Up?
A common point of failure on the 1991 GMC Syclone is the engine oil pressure switch, or sending unit. Symptoms often appear as problems with the oil pressure gauge. You might see the needle pegged at maximum, dropped to zero, or bouncing around erratically. While alarming, these issues often point to a bad sensor rather than a serious internal engine problem like a failing oil pump. However, because you can't be sure without testing, it's a problem that needs to be addressed.
Don't Ignore a Bad Reading
🎬 Learn more about the critical symptoms of a bad oil sensor.Never assume a bad gauge reading is just a faulty sensor. Always check your oil level first. If the level is good, listen for any engine noises like ticking, knocking, or grinding. If you hear unusual noises, it could indicate a real loss of oil pressure, and you should stop the engine immediately to prevent catastrophic damage.
Choosing the Right Aftermarket Part
For a specialty vehicle like the Syclone, finding original OEM parts can be difficult and expensive. The original ACDelco D1846 part is often listed as discontinued. Fortunately, the aftermarket offers reliable alternatives. The key is to get the correct 3-terminal switch that is designed for a gauge, not just a warning light.
- Standard Motor Products (SMP): Standard is a well-regarded aftermarket brand that produces a direct-fit replacement, part number PS236. This part is widely available and is a common choice for Syclone and Typhoon owners. It is engineered to meet or exceed original specifications and is a trusted option.
- Global Parts and Other Brands: While other brands exist, they are less documented in owner forums. Given the critical function of this sensor, sticking with a known, reputable brand like Standard Motor Products is a safer bet for long-term reliability.
Cost of Replacing an Engine Oil Pressure Switch (1991 GMC Syclone)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Standard, etc.) | $16.60 - $65.23 |
| New OEM (ACDelco) | $75.00+ (If available) |
| Shop Labor | $70 - $150 |
Pro Tip: Location and Installation
The oil pressure sending unit on the 4.3L V6 is located at the top rear of the engine block, near the distributor. It can be difficult to reach. While some mechanics remove the upper intake manifold for access, it is possible to replace it without doing so, though it requires patience and a special oil pressure switch socket. 🎬 See how to replace the switch without removing the intake manifold. The part should come with thread sealant already applied.
Frequently Asked Questions (FAQ)
Where is the oil pressure switch on a 1991 GMC Syclone?
It is located on the top of the engine block, behind the intake manifold and near the distributor cap. It's in a tight spot and can be hard to see.
What's the difference between an oil pressure switch and a sending unit?
Often the terms are used interchangeably. A simple "switch" just turns a warning light on or off. A "sending unit" or "sender" is a variable resistor that sends a changing signal to a gauge, showing the actual pressure reading. For the Syclone with its gauge, you need a sending unit.
Can a bad oil pressure switch cause the truck not to start?
It's possible. On these GM systems, the oil pressure switch can act as a secondary power source for the electric fuel pump. If the primary fuel pump relay fails, the truck won't start until the switch detects oil pressure while cranking. A completely failed switch could interrupt this backup circuit.
Are there any recalls for the 1991 GMC Syclone oil pressure switch?
No, there have been no recalls issued by the NHTSA for the oil pressure switch on the 1991 GMC Syclone.
How do I know if I have a bad sensor or a real oil pressure problem?
First, check your oil level. If it's correct, listen for engine noises like knocking or ticking. If the engine is quiet and the gauge reads zero or is erratic, the sender is the most likely culprit. For a definitive diagnosis, you can connect a mechanical oil pressure gauge to the engine to verify the true pressure.
🎬 Watch this guide to diagnose if your gauge or sensor is failing.Helpful Videos

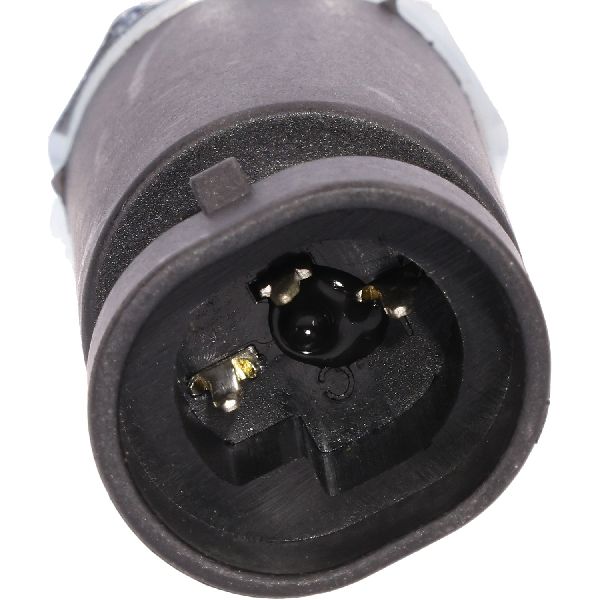

Technical Specifications
OEM Part Numbers: 19244500 10096179 D1846
3-Terminal Blade Connector, 1/8-27 NPT Thread Size
