Guide to the 1991-1993 Buick Roadmaster Distributor Ignition Pickup
Solve common stalling and no-start issues by understanding this critical ignition part in your Roadmaster's V8 engine.
- Stalling when the engine is hot is a classic sign of a failing ignition pickup coil.
- Choose a quality aftermarket brand like ACDelco, Delphi, or Standard Ignition for this critical part.
- Replacement requires opening the distributor and can be done by a DIYer, but may require resetting ignition timing.
- While replacing the pickup coil, inspect the distributor cap, rotor, and ignition module for wear.
Is Your Roadmaster Stalling or Refusing to Start?
If you own a 1991-1993 Buick Roadmaster with the 5.0L or 5.7L V8, you have a traditional distributor ignition system. A common failure point inside that distributor is the ignition pickup coil. When this part starts to fail, it can cause frustrating and intermittent problems that can leave you stranded. The most classic symptom is the engine stalling after it has warmed up, only to restart again after it cools down. This happens because heat increases electrical resistance in the failing coil, causing it to stop sending its signal.
🎬 Watch this guide to diagnose a no-spark condition.Choosing the Right Aftermarket Pickup Coil
When replacing the ignition pickup, you have a few solid aftermarket choices. Since this part is critical for engine operation and requires some labor to access, choosing a quality brand is important to avoid doing the job twice.
- ACDelco and Delphi: ACDelco is General Motors' parts brand, and Delphi was originally a part of GM that was spun off. For many GM vehicles of this era, one of these two brands was the Original Equipment (OE) supplier. Choosing either ACDelco or Delphi is often the closest you can get to the original factory part, ensuring a high-quality fit and reliable performance.
- Standard Ignition (Standard Motor Products): Standard is a well-respected aftermarket brand that has been around for a long time. They offer quality replacement parts that meet or exceed OEM specifications. For a part like an ignition pickup, Standard is a dependable and cost-effective choice.
Pro Tip: While you are replacing the ignition pickup, it is a good time to inspect the distributor cap, rotor, and ignition control module, as these parts are all located together and wear over time. Replacing them at the same time can save you future headaches.

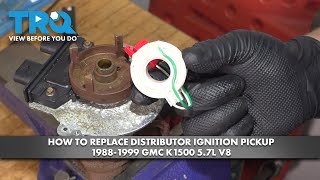

🎬 See a walkthrough of the ignition pickup replacement process.Cost of Replacing the Distributor Ignition Pickup
The part itself is not expensive. The main cost is the labor involved, as the distributor must be partially or fully disassembled to access the pickup coil.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Distributor Ignition Pickup | $28 - $42 |
| Shop Labor | $100 - $200 |
| Total Professional Replacement | $128 - $242 |
Frequently Asked Questions (FAQ)
Can I replace the distributor pickup myself?

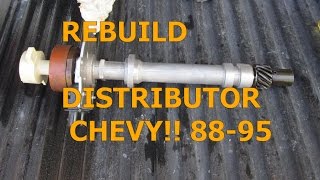

Yes, this is possible for a skilled DIY mechanic. The process involves removing the distributor cap and rotor. Depending on the exact setup, you may need to remove the entire distributor from the engine, which then requires you to reset the ignition timing. 🎬 Learn how to remove and rebuild your GM distributor. This adds complexity, so be sure to watch repair videos and understand the process completely before starting.
What's the difference between the ignition pickup and the ignition module?
They are two separate parts that work together inside the distributor on your Roadmaster. The ignition pickup (or pickup coil) creates the signal, and the ignition control module (ICM) receives that signal and uses it to switch the ignition coil on and off. Both can fail due to heat and cause similar symptoms like stalling.
Do I need to replace the whole distributor?
Not usually. The pickup coil can be replaced on its own. However, if the distributor shaft has excessive side-to-side movement or the gear at the bottom is worn or damaged, the entire distributor assembly should be replaced.
Are there any recalls for this part?
No, a search of the National Highway Traffic Safety Administration (NHTSA) database shows no recalls for the distributor ignition pickup on the 1991-1993 Buick Roadmaster. The major GM ignition recalls from the 2010s were for the ignition *switch* (where the key goes) on different, newer vehicles and do not apply to this part.
Helpful Videos
Technical Specifications
This part is located inside the distributor assembly. It is not interchangeable with the externally mounted ignition components on the 1994-1996 LT1-powered Roadmaster.
