Ford Explorer Locking Hub Guide for 1991-1994 Models
If your first-generation Explorer's 4WD isn't working, the factory automatic locking hubs are a likely suspect.
- The factory automatic locking hubs are a known weak point on 1991-1994 Explorers.
- Converting to aftermarket manual hubs is a common and reliable upgrade that eliminates the failure-prone vacuum system.
- Failure symptoms often include a non-functional 4WD system or grinding noises from the front wheels.
- Replacing the hubs is a DIY-friendly job that can be completed in under two hours with basic tools.
Symptoms of a Failing Locking Hub
When your locking hubs start to fail, the most obvious sign is that your four-wheel drive won't engage. You might also notice other symptoms. If the hubs are stuck in the locked position, you could hear clicking or grinding noises from the front wheels, especially when turning. If they are stuck unlocked, the 4WD simply won't work, and you'll notice the front driveshaft turning but the front wheels won't be powered.
Automatic Hub Problems
The factory automatic hubs on 1991-1994 Explorers are vacuum-operated. Over time, the rubber vacuum lines can crack, get disconnected, or disintegrate, causing a vacuum leak. 🎬 Watch this guide on how to fix 4x4 hub vacuum leaks. This prevents the hubs from engaging or disengaging properly. Problems with the hub seals or O-rings can also cause leaks. Because of these common issues, many owners consider aftermarket manual hubs to be a significant reliability upgrade.
Choosing the Right Aftermarket Locking Hub
When replacing your hubs, you'll be choosing between different aftermarket brands, most of which offer manual hub conversions. Manual hubs are simpler, more robust, and eliminate the problematic vacuum system. Here’s a breakdown of the available brands:
- Mile Marker: Often considered a high-performance option, Mile Marker hubs are known for their durable, all-metal construction and reliable operation. They are a popular choice for owners looking for a heavy-duty, long-lasting solution.

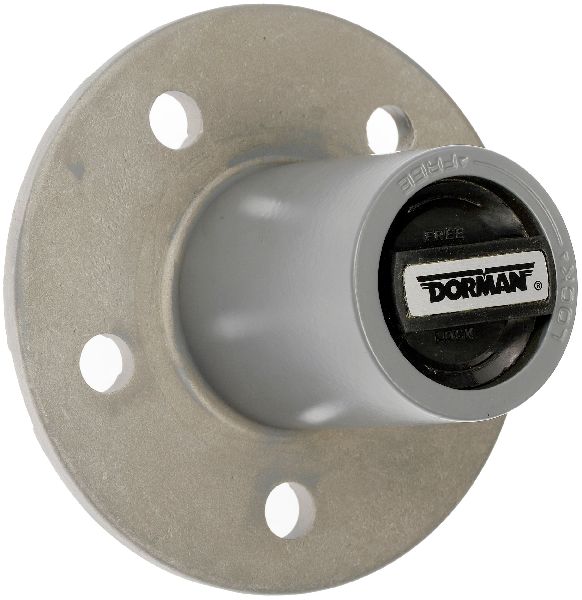

- Dorman: Dorman provides an OE (Original Equipment) style replacement. While some users are wary of aftermarket quality for critical parts, others note that Dorman sometimes re-packages parts from original manufacturers like Warn. They are a standard, widely available replacement option. 🎬 See a review of the top 3 locking hub brands.
- Replacement: This is typically a budget-friendly or generic brand. While it can get the job done, the long-term durability might not match that of more premium brands. It's a viable option if cost is the primary concern.
Pro Tip: Manual Hub Conversion
Converting from the original automatic hubs to manual ones is a common and highly recommended upgrade for first-generation Explorer owners. Manual hubs require you to get out and physically turn a dial on each front wheel to engage 4WD, but their simple design makes them far more reliable than the stock automatic hubs. Kits from brands like Mile Marker or Warn often include all the necessary hardware for the conversion.
Estimated Replacement Costs
| Part Type | Estimated Cost |
|---|---|
| New OEM (Automatic) | $145+ per hub (based on historical data) |
| New Aftermarket (Manual Conversion Kit) | $154.70 - $192.72 |
| Shop Labor | $159 - $234 |
Note: Costs are estimates and can vary based on location and specific product. Labor costs are for a similar wheel-end service and may vary.
Frequently Asked Questions (FAQ)
What's the difference between automatic and manual locking hubs?
Automatic hubs, like the ones that came on your Explorer, are designed to engage automatically when you shift into 4WD, usually using a vacuum system. Manual hubs require you to physically turn a dial on the hub itself to lock or unlock the front wheels from the axles. Manual hubs are generally considered more reliable due to their simpler, more robust mechanical design.
Can I replace just one locking hub?
While you can replace just one, it is highly recommended to replace locking hubs in pairs. This ensures that both sides engage and disengage consistently. If you are converting from automatic to manual hubs, you must replace both at the same time.
Is replacing a locking hub a difficult job?
Replacing locking hubs is a feasible DIY job for someone with basic mechanical skills and tools. The process involves removing the wheel, the old hub assembly, and then installing the new one. You may need a specific spindle nut socket 🎬 Follow this tutorial for a complete manual hub conversion. for some manual hub conversion kits. The estimated time is about one to two hours.
Were there any recalls for the 1991-1994 Explorer locking hubs?
No, there were no specific recalls issued by the NHTSA for the locking hubs on the 1991-1994 Ford Explorer. However, numerous recalls were issued for other issues on these model years, such as seat belts and fuel tanks.
Helpful Videos
Technical Specifications
OEM Part Numbers: F0TZ-1K104-A F0TZ-1K104-B
Spline Count: 27
