A Mechanic's Guide to the 1991-1995 Dodge Caravan Drum Brake Hardware Kit
Noises from the rear wheels or a weak parking brake on your Caravan could mean it's time for new brake hardware.
- Always replace the drum brake hardware kit when you replace the rear brake shoes to ensure safety and performance.
- Owners of 1991-1993 models must be aware of the historical ABS recall that can cause a loss of brake assist.
- When the drum is off, always inspect the wheel cylinder for leaks; fluid contamination will ruin new brake parts.
- For this van, reputable aftermarket brands like Centric, Dorman, and Carlson offer excellent value and reliable performance.
Why Your Caravan's Brake Hardware Matters
Inside the rear brake drums of your 1991-1995 Dodge Caravan, a collection of small springs and clips does a big job. This drum brake hardware is constantly under tension and exposed to heat and moisture. Over 30 years, these parts rust, weaken, and can even break. When this happens, your rear brakes won't work as they should. A broken spring can cause brake shoes to drag, overheat, or make grinding noises. Weak hardware can also lead to a weak parking brake, which is a safety risk. Because the cost of a new hardware kit is so low, it is always recommended to replace it whenever you replace your rear brake shoes.

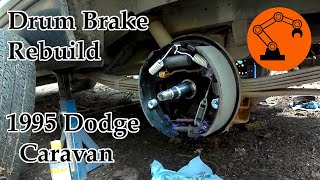

🎬 Watch this step-by-step 1995 Caravan rear drum rebuild.Important Safety Recall for 1991-1993 Models
Chrysler issued a major recall for 1991-1993 Dodge Caravans equipped with the Bendix-10 anti-lock brake system (ABS). The problem was with the hydraulic ABS unit, which could fail and cause a loss of power assist. This makes the brake pedal extremely hard to push and significantly increases stopping distance. While this is not a failure of the drum brake hardware, it is a critical safety issue for the entire brake system on these specific model years. If you own one of these vans, it is vital to ensure this recall work was performed.
Symptoms of Failing Drum Brake Hardware
Bad drum brake hardware can create several noticeable problems. Since these parts work with the brake shoes, the symptoms are often similar to worn-out shoes.
- Scraping or Clicking Noises: A broken spring or clip can fall into the drum assembly and get ground up, creating a harsh scraping or rhythmic clicking sound from the rear wheels. 🎬 See how to inspect and identify common drum brake noises.
- Weak Parking Brake: If the hardware is stretched or the self-adjuster is frozen, the brake shoes may not be close enough to the drum. This results in a parking brake handle that pulls up too far or doesn't hold the van securely on a hill.
- Spongy or Soft Brake Pedal: While often a sign of a hydraulic leak (like a bad wheel cylinder), a frozen self-adjuster can cause excessive pedal travel, making the pedal feel soft.
- Brake Dragging or Locking Up: A weak or broken return spring can fail to pull a brake shoe away from the drum, causing it to drag. In a worst-case scenario, a piece of broken hardware can jam the mechanism, causing the wheel to lock up.
Choosing the Right Aftermarket Hardware Kit
For a vehicle like the 1991-1995 Caravan, new OEM parts are generally not available. The good news is that many aftermarket brands produce reliable and affordable kits. The price difference between a basic kit and a premium one is often just a few dollars, so it's worth choosing a quality brand. All listed brands are considered reliable for this vehicle.
| Brand Tier | Brands | Notes |
|---|---|---|
| Good / Standard Replacement | Dorman, Carlson, ACDelco | These brands provide reliable, OE-style replacement kits that meet factory specifications. They are a dependable choice for a standard brake job. |
| Better / Premium Replacement | Centric, Dynamic Friction | Often considered a step up, these brands may use higher-quality materials or coatings. For example, Dynamic Friction is noted for sometimes using more stainless steel components, which improves corrosion resistance. |
Pro Tip: Inspect the Wheel Cylinders
While you have the brake drum off, carefully inspect the wheel cylinder for any signs of brake fluid leakage. A leaking wheel cylinder will ruin a new set of brake shoes and hardware. If you see any wetness, you must replace the wheel cylinder, shoes, and hardware, and clean the entire assembly thoroughly.
Aftermarket Drum Brake Hardware Kit Cost for 1991-1995 Dodge Caravan
| Part Type | Cost Range |
|---|---|
| New Aftermarket Hardware Kit | $10.92 - $21.96 |
| Shop Labor to Install | $125 - $225 |
Cost estimates are for the hardware kit only and do not include brake shoes, drums, or other components. Labor costs can vary by location.
Frequently Asked Questions (FAQ)
Do I really need to replace the hardware with the shoes?
Yes. Industry experts agree that you should always replace the hardware when replacing brake shoes. The springs lose tension over time, and rust can freeze the self-adjuster. For a small additional cost, a new kit ensures your new brakes work correctly and last as long as possible.
Is one hardware kit for the whole car?
No. A drum brake hardware kit typically services two wheels on the same axle. You will buy one kit to rebuild the rear brakes on both the left and right sides of your Caravan.
What tools do I need to replace drum brake hardware?
While it can be done with pliers and screwdrivers, special drum brake tools make the job much easier and safer. These include a spring compressor, retainer spring tool, and brake adjusting spoon. These tools are designed to handle the strong springs safely.

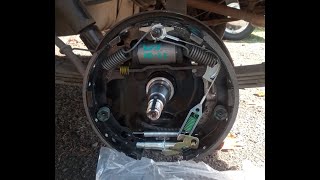

🎬 Check out this in-depth guide to changing drum brakes.What is the difference between a hardware kit and a self-adjuster kit?
A complete hardware kit usually includes all the springs and clips, and often the self-adjuster components as well. However, some brands sell the self-adjuster repair kit separately. It's best to buy a complete kit that includes everything to avoid having to make a second purchase.
Helpful Videos
Technical Specifications

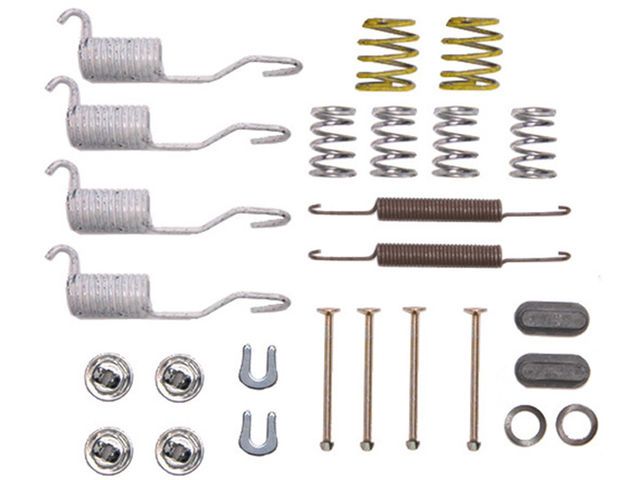

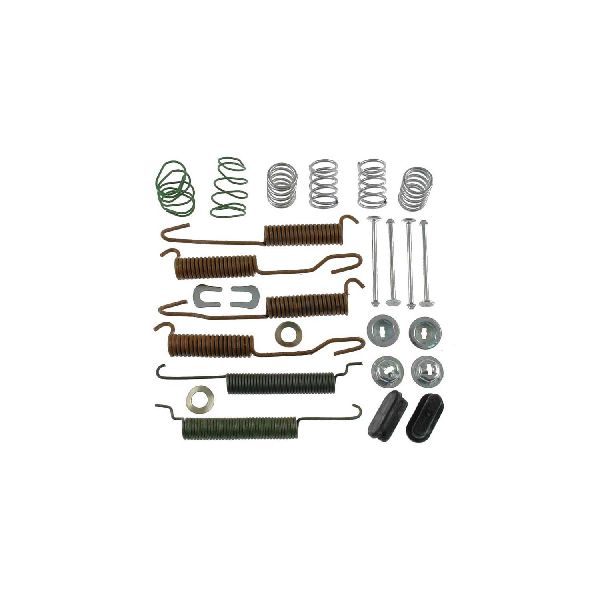

A typical kit includes: two primary return springs, two secondary return springs, four shoe hold-down springs, eight hold-down pins and clips, and components for the self-adjusting lever and cable assembly.
