Engine Coolant Thermostat Guide for the 1991-1995 Ford Explorer
If your Explorer's temperature gauge is acting up or the heat isn't working, your thermostat could be the problem.
- A thermostat failing 'stuck closed' will cause rapid overheating and can destroy your engine.
- A thermostat failing 'stuck open' results in a cold-running engine, poor heat, and bad fuel economy.
- For the 1991-95 Explorer, use a thermostat rated for 190-197°F.
- When replacing the thermostat, it is highly recommended to also replace the gasket and inspect or replace the plastic thermostat housing, which is a known failure point.
Is Your Explorer's Thermostat Failing?
A thermostat is a simple mechanical part, but when it fails, it can cause major headaches. For the first-generation Ford Explorer, with its trusty 4.0L V6 engine, the thermostat can fail in two ways: stuck open or stuck closed.
Stuck Closed: The Dangerous Failure
This is the most serious failure. When the thermostat is stuck closed, it never opens to allow coolant to reach the radiator. The engine's temperature will climb quickly, leading to overheating. If you see the temperature gauge in the red, pull over immediately to prevent catastrophic engine damage like a cracked cylinder head.
Stuck Open: The Inefficient Failure
If the thermostat is stuck open, coolant constantly flows to the radiator, even when the engine is cold. This makes it very difficult for the engine to reach its proper operating temperature. Signs of this include a temperature gauge that never reaches the middle of its range, poor heater performance (lukewarm air from the vents), and a decrease in fuel economy because the engine is running rich.
Choosing the Right Aftermarket Thermostat
For a vehicle like the 1991-1995 Explorer, you have several good aftermarket options that provide excellent value. While Motorcraft is the original Ford part, quality aftermarket brands are reliable and often more affordable.
| Brand Tier | Brands | Typical Price Range | Notes |
|---|---|---|---|

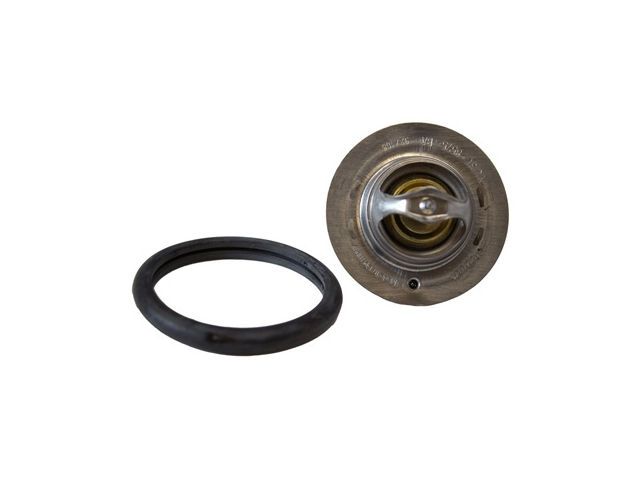

| OEM | Motorcraft | $15 - $35 | Original equipment quality and fit. The benchmark for performance, often rated at 190°F or 192°F. |

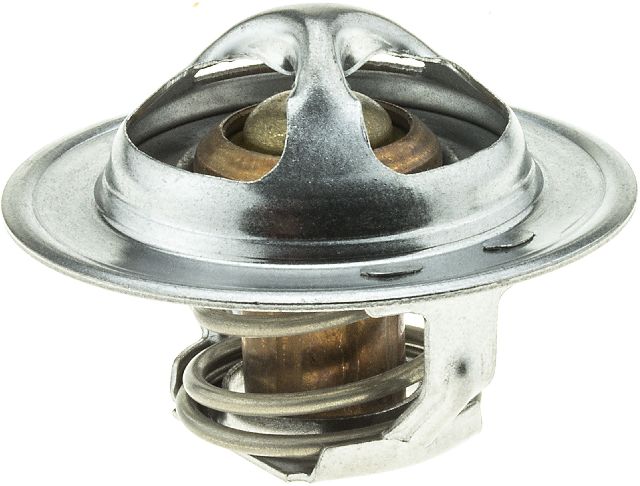

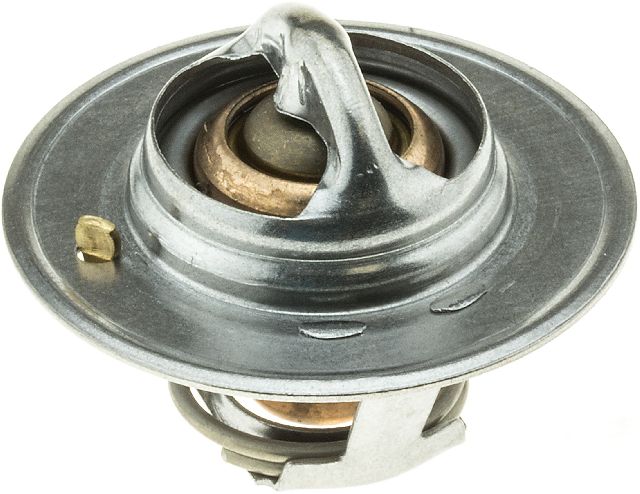

| Premium Aftermarket | Gates, Calorstat (by Vernet) | $10 - $25 | Gates is a highly respected name in cooling systems. Calorstat is a known OE supplier and offers thermostats for this Explorer, often rated at 197°F. |
| Standard Aftermarket | Motorad | $11 - $66 | A very common and widely available option. Motorad offers standard replacements and "Fail-Safe" versions designed to lock in the open position if they fail, preventing overheating. |
Pro Tip: When replacing your thermostat, it's a good idea to also replace the thermostat housing gasket to prevent leaks. Some kits include this. Also, consider replacing the plastic thermostat housing itself, as they are known to become brittle and crack over time on Ford's 4.0L engines.
🎬 Watch this step-by-step guide to replacing your Explorer's thermostat.Frequently Asked Questions
What temperature thermostat should I use for my Explorer?
For a stock 1991-1995 Ford Explorer, you should use a thermostat with the original temperature rating, which is typically between 190°F and 197°F. Using a lower temperature thermostat is not recommended on a stock engine, as it can negatively affect fuel economy and engine efficiency.
What is a "fail-safe" thermostat?
A fail-safe thermostat, like some models offered by Motorad, is designed to lock in the open position if the part fails. This is a desirable feature because it prevents a stuck-closed scenario, which can cause the engine to overheat. It turns a potentially catastrophic failure into a less severe one.
Can I just remove the thermostat and run without one?
No. Running without a thermostat will cause the engine to run too cool, similar to a stuck-open failure. This leads to poor performance, increased engine wear, bad fuel mileage, and no heat in the cabin. The engine is designed to operate within a specific temperature range.
Are there any recalls or TSBs for the thermostat on my Explorer?
There are no specific recalls for the thermostat itself on the 1991-1995 Ford Explorer. However, there are general Technical Service Bulletins (TSBs) related to cooling system noises and temperature gauge fluctuations on Explorers with the 4.0L engine, which can sometimes be related to thermostat or water pump performance. 🎬 Learn how to distinguish between thermostat and water pump failure. A common issue on these engines is a cracked plastic thermostat housing, which can cause coolant leaks.
Helpful Videos
Technical Specifications
OEM Part Numbers: F2TZ-8575-A
Standard opening temperature is approximately 190-197°F (92°C) for the 4.0L V6 engine.
