A Guide to the Knock Sensor for the 1991-1995 Toyota MR2
If your SW20 MR2 feels sluggish or won't boost, a faulty knock sensor could be the culprit.
- A bad knock sensor will trigger a P0325 or Code 52 and prevent a turbo MR2 from building boost.
- Replacement is a difficult, labor-intensive job due to the sensor's location under the intake manifold.
- Most MR2 owners recommend using a genuine OEM sensor to avoid repeat repairs, as generic sensors may not work correctly.
- The sensor must be torqued to the correct specification (33 ft-lbs) to function properly.
Is Your MR2 Knock Sensor Failing?
A bad knock sensor will almost always trigger the Check Engine Light. On these cars, this will be a standard OBD-II code P0325 (Knock Sensor Circuit Malfunction) on later models, or a flashing engine light Code 52 on earlier models. The symptoms are not subtle, especially on the turbo models.
- Loss of Power: The ECU will default to a “safe” timing map to protect the engine, making the car feel very sluggish.
- No Boost (Turbo Models): This is a classic symptom. The ECU will prevent the turbo from building boost to avoid engine damage, with the boost gauge often fluctuating erratically.
- Poor Fuel Economy: With the engine running inefficiently on its safe map, you will notice a drop in gas mileage.
- Hesitation: The car may hesitate or jerk during acceleration. 🎬 Watch: A breakdown of common bad knock sensor symptoms.
OEM vs. Aftermarket: An Honest Look for the MR2
When replacing a part that is this difficult to access, the quality of the replacement is critical. While budget-friendly aftermarket sensors are available, many experienced MR2 owners and mechanics strongly recommend using a Genuine Toyota (OEM) part or a high-quality OEM equivalent like Denso. The original sensor is specifically tuned to the vibration frequencies of your MR2's engine block. A generic, low-cost sensor may not detect knock correctly, or it could send false signals, leaving your engine unprotected or stuck in limp mode. Given the high labor cost to replace it, saving a few dollars on the part itself could lead to doing the job twice.
Cost of Replacing an MR2 Knock Sensor
The cost is split between the part itself and the significant labor required for the installation. Accessing the sensor requires removing the intake manifold, which is time-consuming.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $155 - $175 |
| New Aftermarket (Replacement Brand) | $28 - $34 |
| Used OEM | $40 - $70 |
| Shop Labor | $300 - $500+ |
Pro Tip: Torque Matters
The knock sensor detects vibrations through its physical contact with the engine block. It is critical that the sensor is torqued to the correct specification, which is reported by owners to be 33 ft-lbs. If it's too loose, it won't detect knock properly. If it's too tight, it can be over-sensitive or become damaged. Always use a torque wrench for this job.
Frequently Asked Questions
Where is the knock sensor located on the 1991-1995 MR2?
The knock sensor is located on the back of the engine block, underneath the intake manifold. It is in a very tight space, making replacement a difficult job that often requires removing the manifold for access.
What is a Code 52 or P0325?
These are the diagnostic trouble codes that point directly to a malfunction in the knock sensor's circuit. The ECU has detected a problem with the signal it's receiving (or not receiving) from the sensor and has illuminated the Check Engine Light as a result.
🎬 Watch: How to diagnose and clear a Code 52 error.Can I replace the MR2 knock sensor myself?
This is an advanced DIY job. While possible for an experienced home mechanic, the location of the sensor makes it very challenging. It requires getting the car safely on jack stands, working in a tight space under the intake manifold, and potentially removing other components to gain access. If you are not comfortable with this level of work, it is best left to a professional mechanic.
Is there a recall for the MR2 knock sensor?
No, there have been no recalls or Technical Service Bulletins (TSBs) issued by Toyota or the NHTSA for the knock sensor on the 1991-1995 MR2.

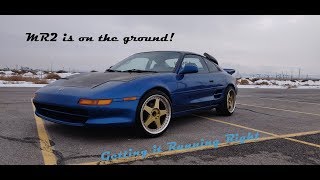

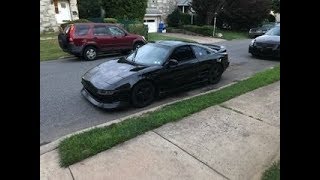

Helpful Videos
Technical Specifications
OEM Part Numbers: 89615-50010
Location: Engine Block, under intake manifold. Torque Spec: 33 ft-lbs.
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
